K-SPOT UGR Recessed Luminaire PI-LED 12W 880lm UGR

K-Spot UGR LED Recessed Luminaire

K-SPOT UGR: Low-glare recessed luminaire with daylight-like PI-LED technology and smart control for demanding lighting projects.

Recessed luminaire with daylight-like PI-LED technology (1,800 - 16,000 K), 880 lm luminous flux, UGR<19, ZigBee/DALI controllable, 50,000 h lifetime, tool-free installation.

Key Features

• UGR < 19 – Low-glare illumination for fatigue-free working and comfortable stays over extended periods
• Color temperature 1,800 K to 16,000 K – Flexible light adjustment from warm residential light to daylight-like illumination with chromaticity stability through temperature compensation
• 880 lm luminous flux at 12 W power – High luminous efficacy thanks to integrated high-gloss reflectors for efficient illumination
• Color rendering index > 90 – True-to-life color rendering for precise color assessment in crafts, retail, and office environments
• L80/B10 50,000 h lifetime – Low-maintenance long-term operation with low replacement costs over decades
• ZigBee 3.0 or DALI DT8 control – Wireless or standardized dimming control with Over-The-Bus updates and Modular Dimming
• Tool-free installation for 1–15 mm ceiling thickness – Quick installation without special tools via two mounting springs
• IP 30 or IP 54 protection class – IP 54 variant with optional protective cover for humid or dust-laden environments

Applications

Office and Administrative Buildings

Low-glare general lighting in open-plan offices, meeting rooms, and administrative buildings with high requirements for visual comfort and energy efficiency.

Retail and Sales Areas

Precise color rendering (CRI > 90) for merchandise presentation with daylight-like lighting that supports purchasing decisions.

Healthcare and Wellness

Daylight-like lighting in medical practices, therapy rooms, and wellness facilities to support well-being and biological rhythms.

Museums and Galleries

High-quality color rendering and low-glare illumination for artwork and exhibitions without UV/IR radiation.

Educational Institutions

Fatigue-free lighting in classrooms, lecture halls, and training rooms with smart control for adaptive lighting scenes.

Technical Specifications

Luminaire Variants

Accessories

Maximum number of luminaires per circuit breaker

Product Details & Advantages

PI-LED Technology with Daylight Spectrum

The K-SPOT UGR utilizes KITEO's proprietary PI-LED technology, which replicates the natural sunlight spectrum throughout the day – without UV or infrared radiation. The microcontroller-controlled LED management with factory calibration and temperature compensation ensures constant chromaticity stability across the entire color temperature range from 1,800 K to 16,000 K.

Glare Protection UGR < 19

The Unified Glare Rating (UGR) below 19 meets the highest requirements of DIN EN 12464-1 for low-glare lighting. This is particularly critical in office environments and educational institutions to minimize eye strain and promote concentration.

Smart Control and Dimming

The K-SPOT UGR is optionally equipped with ZigBee 3.0 or DALI DT8. ZigBee enables wireless control with NeoLink/Casambi compatibility, while DALI DT8 offers standardized dimming with Over-The-Bus updates. Modular Dimming and Camera-Ready functionality support professional production and event technology.

Thermal Management and Operational Safety

The luminaire continuously monitors operating temperature and automatically activates a thermal protection dimming function if critical values are exceeded. This ensures reliable long-term operation and protects the LED modules from thermal overload.

Flexible Installation and Accessories

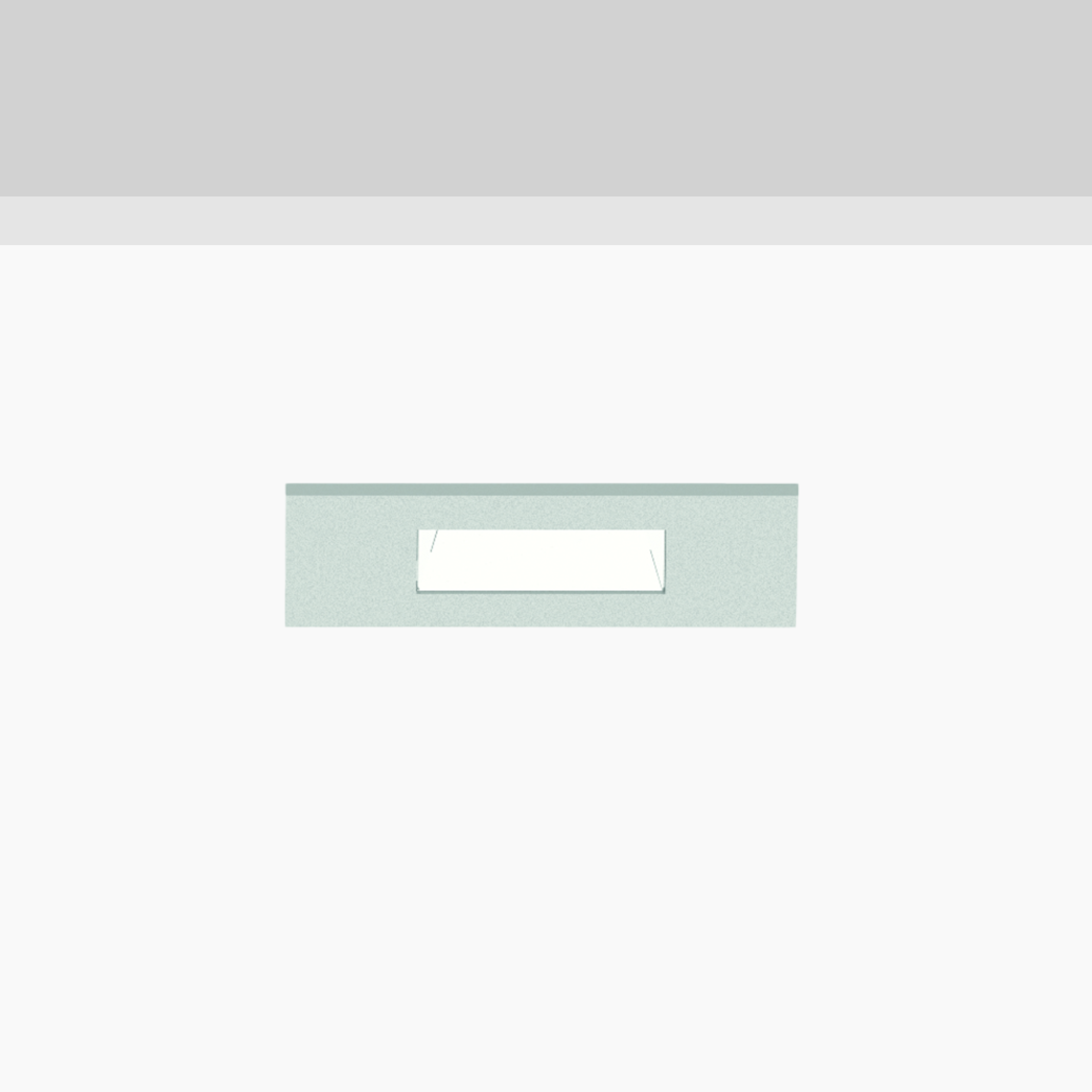

Tool-free mounting via two springs adapts to ceiling thicknesses from 1 to 15 mm. For humid or dust-laden environments, an optional IP54 protective cover is available in White, Black, or Brushed Aluminum (article numbers K-Z1000270, K-Z1000271, K-Z1000272).

Variants & Options

Available in 6 variants: ZigBee 3.0 or DALI DT8 control, each in White (RAL 9003), Black (RAL 9005), and Brushed Aluminum. Protection class IP 30 (standard) or IP 54 (with optional cover).

Typical Applications

Retrofitting existing lighting in office buildings and administrative facilities (such as the 52,000 luminaires at AKH Vienna resulting in 62% energy savings). New installations in modern wellness areas, retail spaces, and educational institutions with demanding visual comfort and energy efficiency requirements.

About Lumitech Produktion und Entwicklung GmbH

KITEO is an Austrian manufacturer (Lumitech Produktion und Entwicklung GmbH, Jennersdorf) specializing in daylight-like LED solutions. The PI-LED technology combines a natural light spectrum with RGB colors in a single light source and has been successfully implemented in large-scale projects such as AKH Vienna. KITEO offers tested quality with ENEC certification and RE-FIT retrofit kits for sustainable energy savings.


Safety Instructions, Certificates & Warranty

Protection class II. Operating voltage 230 VAC. Permissible operating temperature 10 °C to 35 °C. Non-replaceable light source. Photometric data are subject to a tolerance of ±15%, electrical data ±15%. Maximum number of luminaires per circuit breaker: C13 50 luminaires, C16 60 luminaires, B13 30 luminaires, B16 36 luminaires.

Note:
Products from this manufacturer are individually manufactured according to your specifications. This accounts for the extended delivery time of 1-3 weeks, depending on production capacity.
