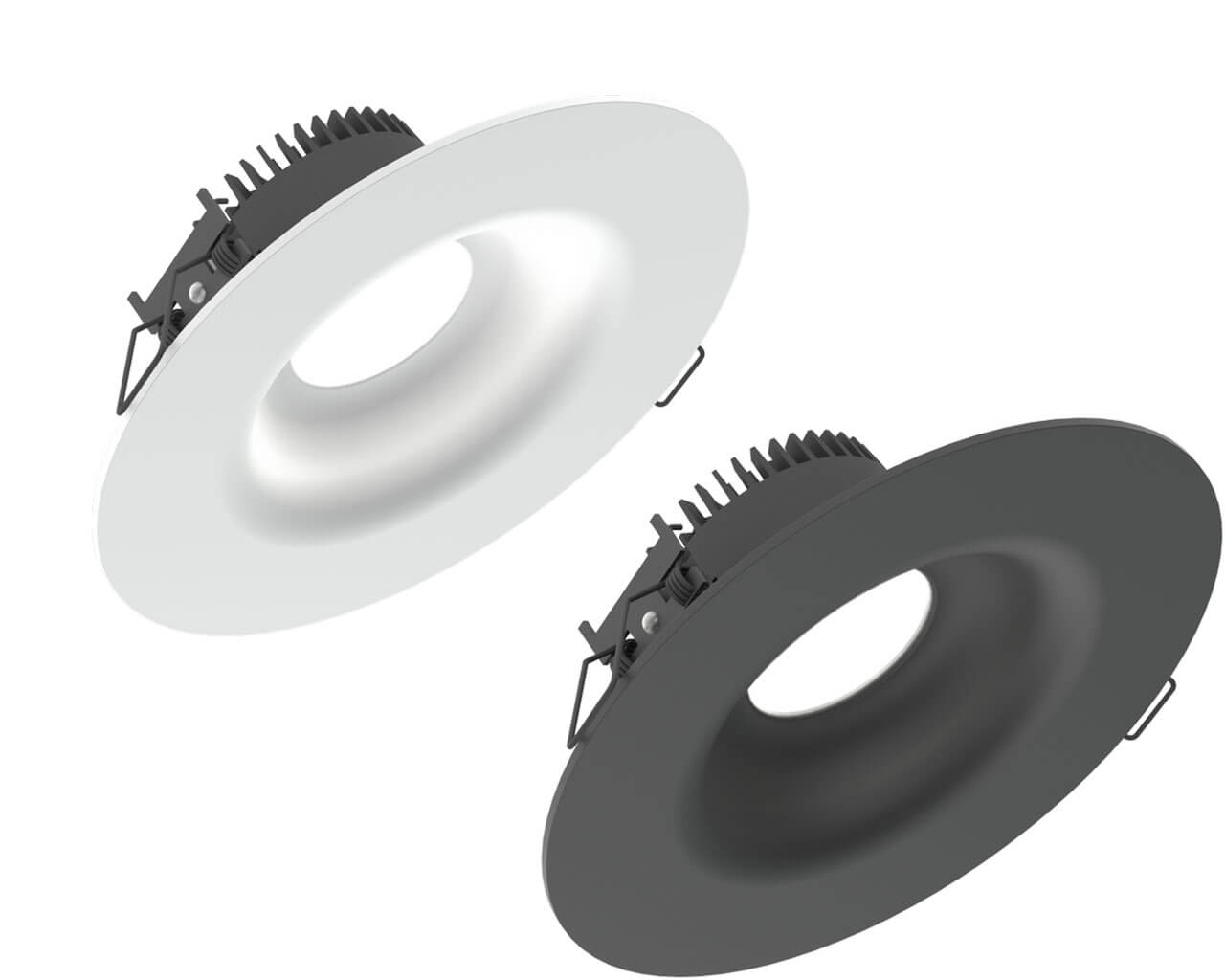

Large Downlight Linea 120 LV-TW

Variants from 177.31€ *
Net price: 149.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Angle of Radiation:

Housing colour:


Mounting method:


  • 5629-896B03BL2C02
  • 896B03BL2C02
  • 0.404 kg
  • 8716197087077
  • Illuxtron International BV
Illuxtron Linea 120 - LV-TW (Low Voltage - Tuneable White) Downlight These recessed... more

Illuxtron Linea 120 - LV-TW (Low Voltage - Tuneable White) Downlight

These recessed spotlights are available in 2700-6500K with a beam angle of 60° and 80°.

This downlight is also available in the following versions:

Version Power range Beam Angle Special
HV-FD (High Voltage - Flimmerfree Dimmtechnology) 10,1-10,5W 40° / 80° directly connected to 220-240V
LV (Low Voltage) 13,8 - 20,1W 24° / 60° / 80° CRI-97 Standard, inclusive PSU
LV-TW (Low Voltage - True White) This Version 11,4W 60° / 80° Tuneable White technology


What makes these LED downlights so special are the reflectors with microfacets. These microfacettes of the sensor series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits:

Special features of these so-called Dark Light - Reflectors

  • High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
  • low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of LED light spectra for very good colour rendering

The most important technical details of the Linea 120 - HV Series:

Casing color matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)
Material housing: die-cast aluminium
Reflector glass: Polycarbonate

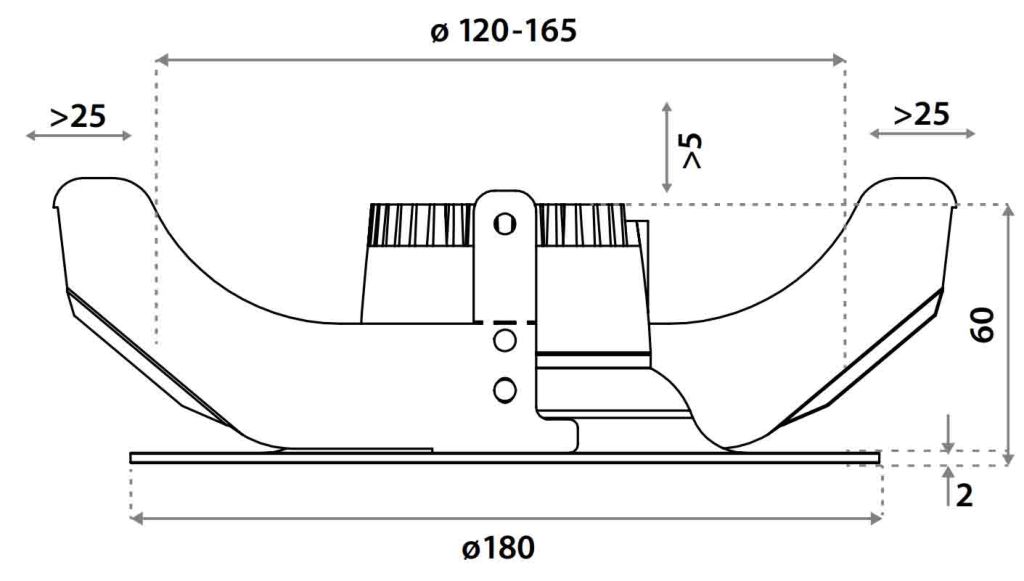

Dimensions 180 mm x 65 mm
Required installation depth > 70 mm
Application Inside area
Emitted beam angle (FWHM) 60°
CRI / Ra (typ.) 83
Colour consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 180,000 h
L80B50 113,000 h
L90B50 54,000 h
Safety sign EN60598 / EN62031 / EN62471
EMV Directive EN55015
Guarantee 7 years
Energy class A

Linea 120 - LV-TW (Low Voltage – Tuneable White)

Human Centric Lighting (HCL) - high-end lighting design solution

The natural light changes its colour during the course of the day from the morning glow of the sunrise to the bright midday sun, to a deep, warm sunset. We have the technology to adjust the colour temperature of the artificial light in our homes.

The human biological clock is closely linked to the day-night cycle of the earth's circadian rhythm and is central to the release of various hormones, such as melatonin, which regulates sleep, and cortisol, which is necessary for healing. We know that light has a significant influence on the human biological clock and our
Health has.

As much as technology can benefit us, it can also throw our natural biological clock out of balance. We get too little of the right type of light during the day and too much of the wrong type
in the night. Televisions, LED lights, computer screens and mobile devices that emit blue (cold) light can disturb our biological clock and shift our natural sleep rhythm.

An HCL (Human Centric Lighting System) can also change artificial light. If we need to be more concentrated or attentive, we can adjust the colour temperature to a cool light. If we want to relax or create a more relaxing environment, we can adjust the colour temperature to provide warmer light.

Lighting and control technologies have a
high degree of user-friendliness. Through careful consideration and expert advice, light can be more organic and can be better integrated into our intelligent home technology to provide greater comfort.

Features and benefits

- High light output (6500K : 1250 Lm / 2700K : 1000 Lm)
- 110 Lm/W (only 11.4W per channel)
- High CRI (6500K : CRI85 / 2700K : CRI94)
- Dimmable with Dali 8 or Casambi
- 350mA
- Mix of Chip Scale Package LEDs

Further information on Linea 120-LV-TW downlights can be found in the relevant data sheet.

Linea 120-LV-TW

Dimmability Casambi DALI
Art.No. 896B03XX9X02 896B03XX9W02
Colour temperature 2700 - 6500 K
UGR 16,8 (*Hinweis)
Beam angle 40 ° (*Hinweis)
Lm/W (withEVG) 110
Type Inkl. Anschlussbox
Input 220-240 V
Power 11,4 W
Protection class I
Pf 0,9

*Note: This version is available with different mounting types and radiation angles.

For data sheets of the Downlight Linea 120 - LV-TW series see Download Tab:

The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This explains the longer delivery time of 1-3 weeks depending on the workload.

Related links to "Large Downlight Linea 120 LV-TW"
Elegant LED downlights (11.4 W) from Illuxtron, various types of LED downlights Light colours,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Lamp shape: Recessed ceiling
Hole diameter: 120mm, 150mm, 160mm, 165mm
Dimmable/Control: Casambi radio, DALI, DALI DT8
Color Temperature/Color: Tuneable White
Datasheet Illuxtron
Linea 120 LV-TW
Read, write and discuss reviews... more
Customer evaluation for "Large Downlight Linea 120 LV-TW"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

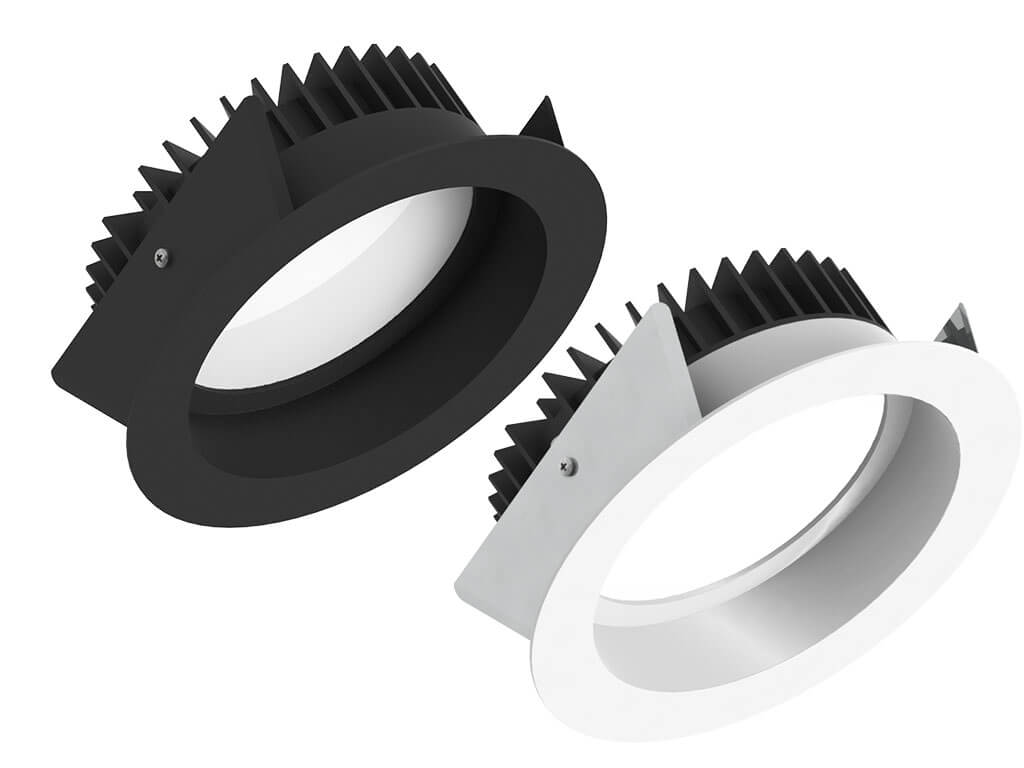

Fluxe 185 Fluxe 185
