LED aluminum glass edge profile AL-PU3 silver

Variants from 20.71€ *
Net price: 17.40€
Content: 1 Meter

Prices incl. VAT plus shipping costs

Please select a variant first

Length:


Meter

  • ALU-945203-100
  • ALU-945203-100
  • 0.12 kg
  • PUR-LED GmbH & Co .KG
Aluminum glass edge profile AL-PU3 1-2m The silver anodized aluminum profile can be pushed... more

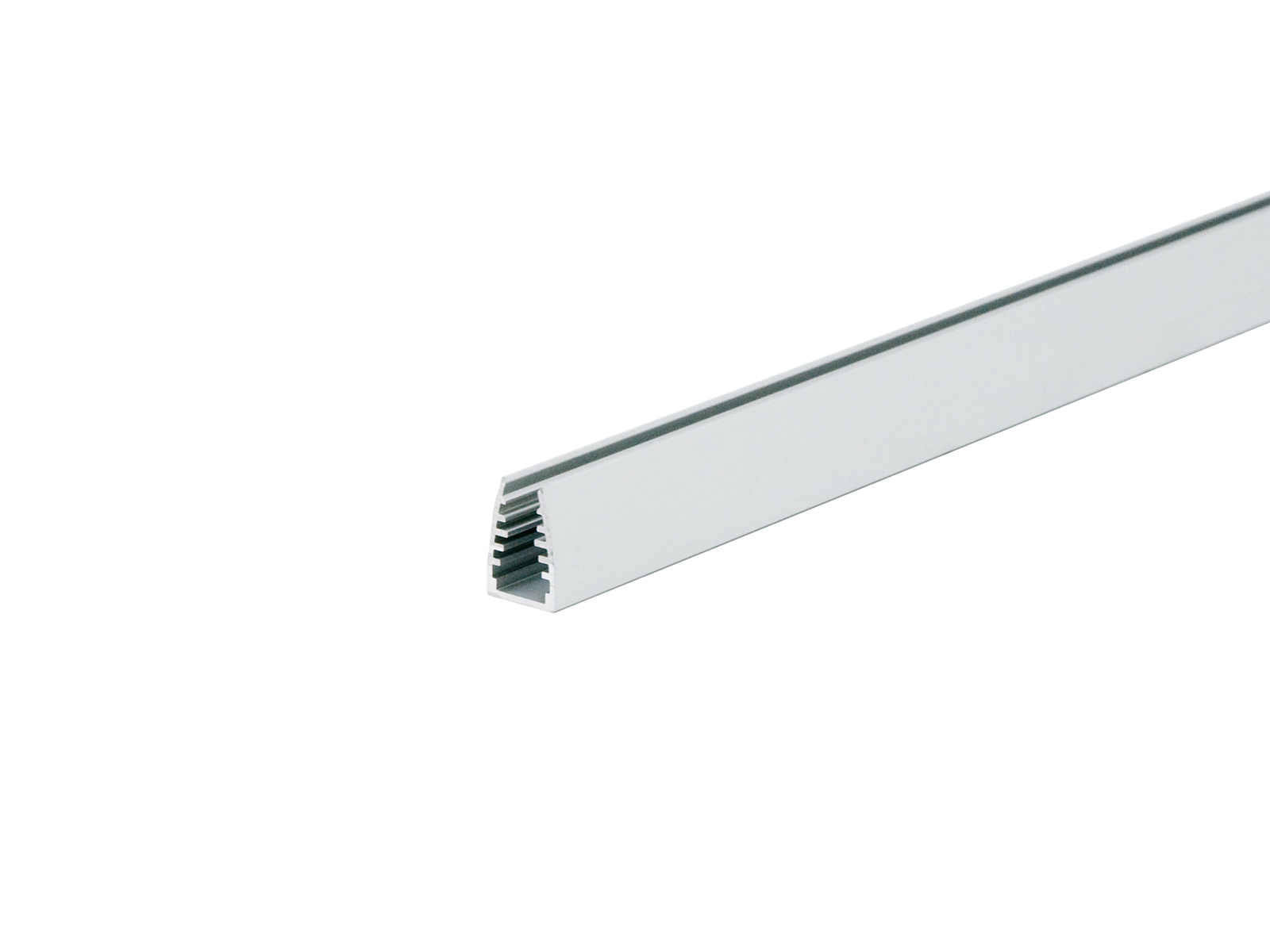

Aluminum glass edge profile AL-PU3 1-2m

The silver anodized aluminum profile can be pushed onto glass edges with a thickness of 6mm, the insertion depth of the glass is limited by a groove, so that a distance to the LED strip below is guaranteed.
LED strips up to a width of 10mm can be used.


Info: Optional length of the profile 1.0m or 2.0m. We are happy to offer you individual cuts on request.



Technical specifications:

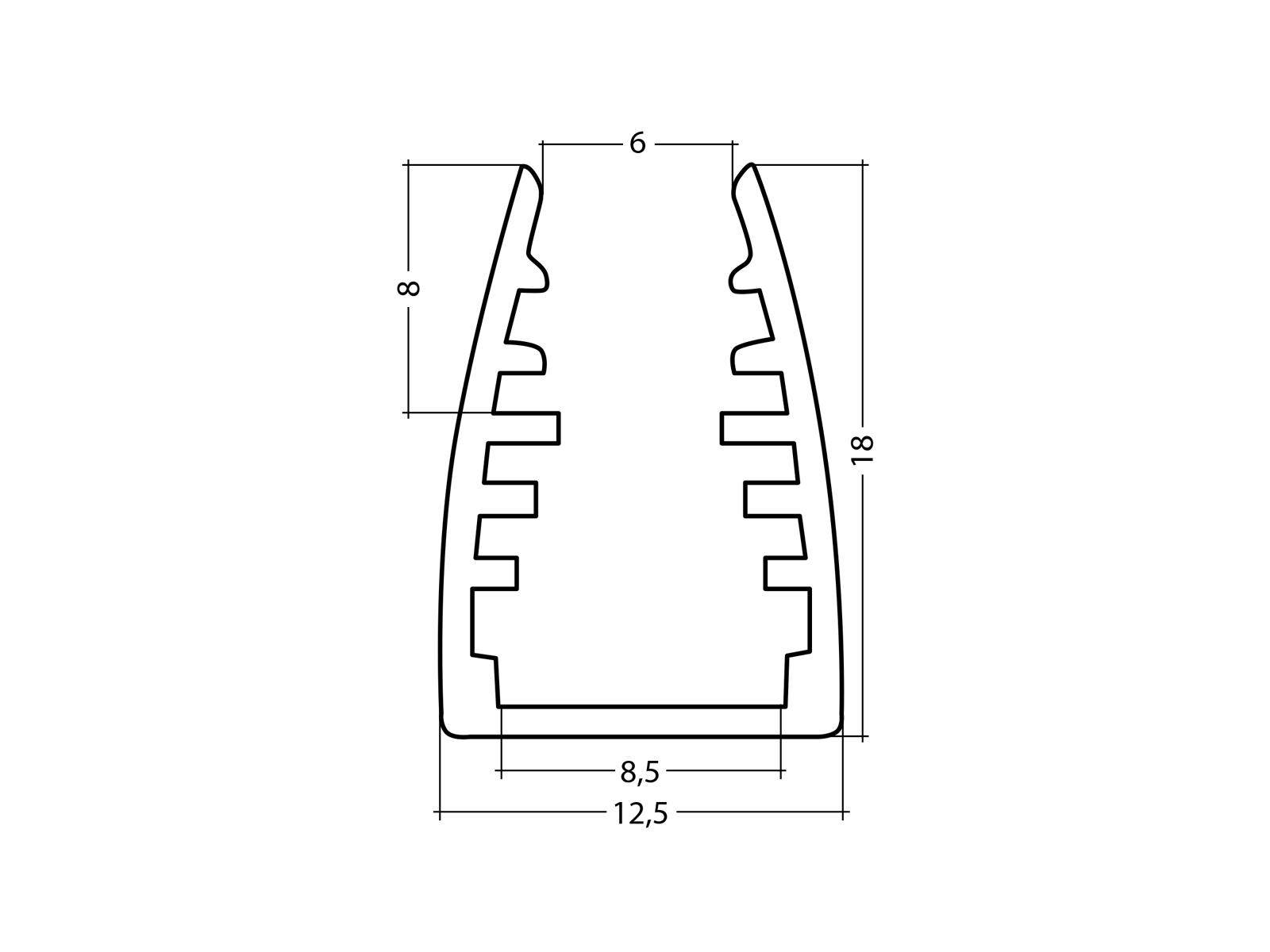

Dimensions (LxWxH) in mm: 1000-2000 x 18 x 12.5 at the bottom, 7mm at the opening
Inner dimension: 10mm



Application areas:

• Showcases
• glass shelves
• Plexiglass panes
• Business expenses
• Exhibition construction


Scope of delivery:


• LED aluminum glass edge profile AL-PU3, of your choice in 1-2m length
• without lamps

Related links to "LED aluminum glass edge profile AL-PU3 silver"
Glass edge lighting for panes with a thickness of 6mm. Dimensions in mm: 1000 / 2000x18x12.5 more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Verwendung/IP-Code: IP20 - IP44 (indoor)
Bauform/Montage: Kühlprofil allg.
Leistung/Meter: 10-20W/m
