LED driver 50W dimmable - Maxi Jolly SV Zigbee 3

93.32€ *
Net price: 78.42€

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays*


LED driver 50W - wireless dimmable with Dip-Switch This is a direct current LED driver from... more

LED driver 50W - wireless dimmable with Dip-Switch

This is a direct current LED driver from TCI which is dimmable with a integrated wireless ZIGBEE module.
Successor of the TCI 122572.
Selectable constant current, constant voltage via dip-switch. The dimmable LED driver is controllable via button (Push-Button).
On/off by a short push. Brightness can be changed by a longer push.
Available as a pure AM/linear controller for flicker-free dimming in the range of 100% - 25%.

Features of the LED driver:

  • Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless ZIGBEE module.
  • IP20 independent driver, for indoor use.
  • Class II protection against electric shock for direct or indirect contact.
  • Active Power Factor Corrector.
  • Analogical input (NTC) for thermal sensor connection.
  • Auxiliary output 12 V max. 100 mA.
  • Current regulation ±5 % including temperature variations.
  • Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
  • Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
  • Protections:
    • Against overheating and short circuits;
    • Against mains voltage spikes;
    • Against overloads.
  • Thermal protection = C.5.a.
  • Flicker ( Output Ripple ) <= 3%

Ripple freeAM dimmingZigbee logo, push, constant current

DIP-Switch Power out Voltage out Current out
Position 1 18,5W 10...53V 350mA const.
Position 2 21W 10...53V 400mA const.
Position 3 23,5W 10...53V 450mA const.
Position 4 26,5W 10...53V 500mA const.
Position 5 29W 10...53V 550mA const.
Position 6 31,5W 10...53V 600mA const.
Position 7 34,5W 10...53V 650mA const.
Position 8 37W 10...53V 700mA const.
Position 9 39,5W 10...53V 750mA const.
Position 10 42W 10...53V 800mA const.
Position 11 45W 10...53V 850mA const.
Position 12 47,5W 10...53V 900mA const.
Position 13 50W 10...52V 950mA const.
Position 14 50W 10...50V 1A const
Position 15 50W 10...48V 1,05A const.
Position 16 50W 10...45V 1,1A const.
Position 17 50W 10...43V 1,15A const.
Position 18 50W 10...41V 1,2A const.

Efficiency as a function of power: >92
TCI labels functions IP20

Operation Mode:

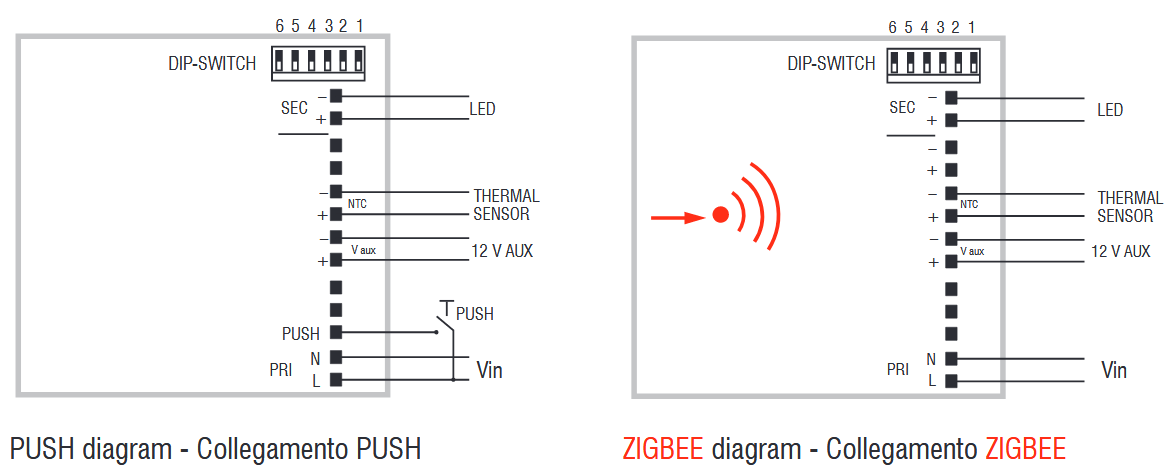

  • Light regulation 0/1 - 100 % by means of PUSH function and standard ZIGBEE devices for ZIGBEE integrated WIRELESS module.
  • (3) Designed to work with ZIGBEE systems.
  • Full AM DIMMING: 1-100%.
  • Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):
    • A short push to turn on and off;
    • A longer push to increase or decrease light intensity;
    • Regulation automatically stops at minimum and maximum values;
    • For another on, regulation or off command, release the push button and give the desired command again;
    • Dimming level memory at mains restore.
  • Possibility to use PUSH function to 4/5 drivers

Setup of the TCI Zigbee devices like this:

Step 1: Hue-App go for "Search Luminaires"
Step 2: Switch on TCI Zigbee device
Device should be connected within some seconds.

Check signal level when close to metal surfaces or inside metal box.

For more information regarding the TCI Maxi Jolly SV Zigbee 3 please refer to the data sheet in the Dowload-Tab.

Some hints by LEDclusive.de:
We have successfully tested the TCI-Module with Philips Hue Bridge and got following experience. Just follow the setup procedure above, the device can be easy found in the setup of luminaires.
In case something went wrong, we recommend running the reset procedure. This is described on the label. Take care to follow the time sequences exactly.
We use one metronome for counting. Successful reset get confirmed by a short off and on of the connected LED-module.

Related links to "LED driver 50W dimmable - Maxi Jolly SV Zigbee 3"
LED driver 50W linear (AM) dimmable. Integrated wireless Zigbee module. Adjustable currents from... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Current: 0,4A, 0,5A, 0,6A, 0,7A, 0,8A, 0,9A, 0,35A, 0,45A, 0,55A, 0,65A, 0,75A, 0,85A, 1,0A, 1,05A, 1,2A
Power range: 5 - 20 W, 20 - 50 W
Dimmable/Control: Linear/AM, Push-Button, Zigbee
#Kategoriefilter: LED-Treiber-alles mit CC
Data sheet Maxi Jolly SV ZB 3
