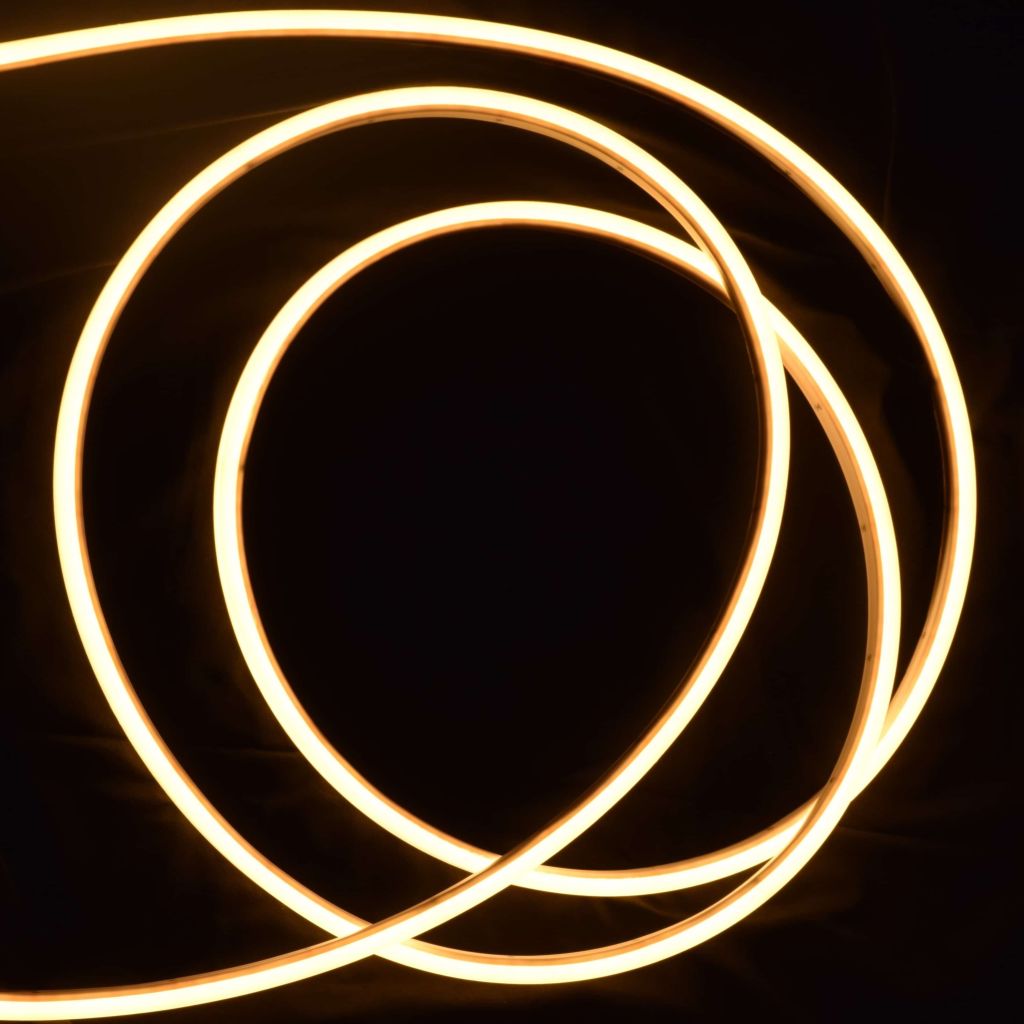

LED line Neon Mini 50W 24V

A++ to A
From 223.65€ *
Net price: 192.80€
Content: 5 Meter (44.73€ * / 1 Meter)

Prices incl. VAT plus shipping costs

Please select a variant first

color temperature:


Meter

LED line Neon Mini 50W, 24V, IP68 This high-quality LED line Neon Mini 50W aims at an... more

LED line Neon Mini 50W, 24V, IP68

This high-quality LED line Neon Mini 50W aims at an uniform illumination due to its appropriate colour reproduction. The bright strip comes with 700 LEDs. Therefore, it creates a homogeneous and continuous light colour. In addition, the LED line fits into both, indoor and outdoor application because of its high protection level IP68 and its resistance against water, salt water and UV exposure.

Overview:

  • 5m flexible LED line waterproof potted IP68
  • Resistant against water, salt water and UV exposure
  • Uniform illumination
  • Bending radius min. 150mm, observe bending direction, only perpendi-cular to the mounting surface
  • Comes with connection cable 20cm with plug IP65, on the other end connection cable 20cm with suitable socket IP65
  • Energy efficiency class A+ / 55kWh/1000
  • 5 years warranty due to Lumiled LEDs

References:

  • Divisible between units, mounting and sealing kit sold separately, art.no. 808960
  • Pair of connection cables with plug resp. socket and open cable end sold separately art.no. 808964

Technical data:

Colour temperature 2600K 3000K 4000K 6500K
Article number 808003 808002 808001 808000
Type ONM24-50-865-500 ONM24-50-840-500 ONM24-50-830-500 ONM24-50-827-500
Power 50W
Nominal input voltage 24 VDC
Luminous flux 4500 lm 4750 lm 5000 lm 5250 lm
Power per meter 10 W/m
Variance of colour temperature MacAdam Step 3
Colour rendering index > 80
Number of LEDs 700
IP Protection level IP68 / IP65

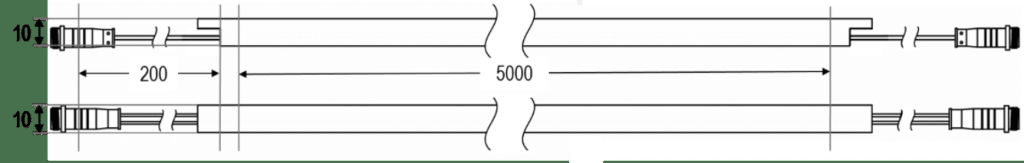

Dimensions 5000x10x10 mm
Length of a unit 50 mm
Max. length after feed-in 5 m


For further information please refer to the data sheet in the Download tab.

Related links to "LED line Neon Mini 50W 24V"
LED strip 24 Vdc with 10 W/ m available in different colour temperatures 2600K-6500K and RGB.... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 24V
Application/IP-Code: IP20 - IP44 (Indoor), IP65/67 (Outdoor)
Color Temperature/Color: 2700K, 3000K, 4000K, >5000K, RGB
Power/Meter: 10-20W/m
Data sheet LED line Neon Mini
for 2600K to 6500K
General Notes and Advices
when handling LED Strips
Read, write and discuss reviews... more
Customer evaluation for "LED line Neon Mini 50W 24V"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

A++ to A

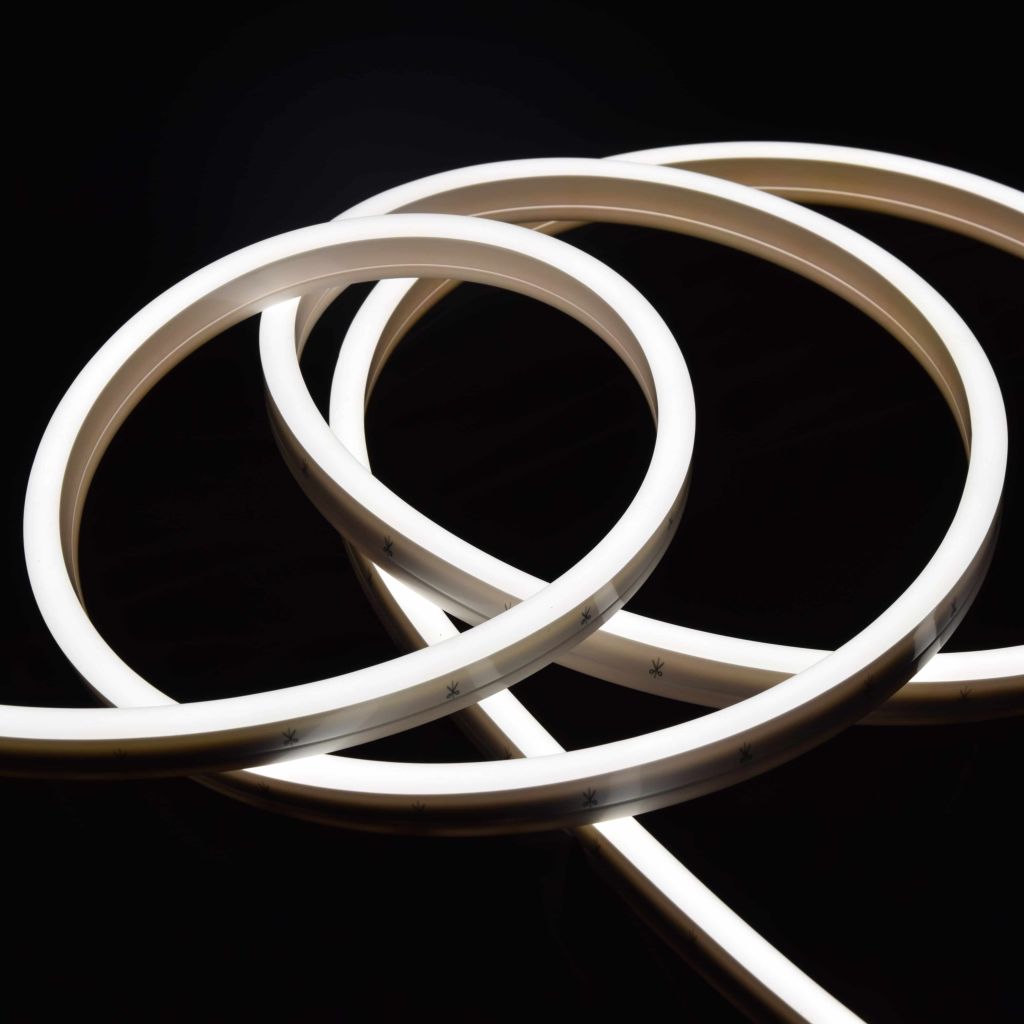

LED line side product picture LED line Neon Side 40W 24V
Content 4 Meter (66.48€ * / 1 Meter)
From 265.91€ *
Order number: 4631-808023
A++ to A

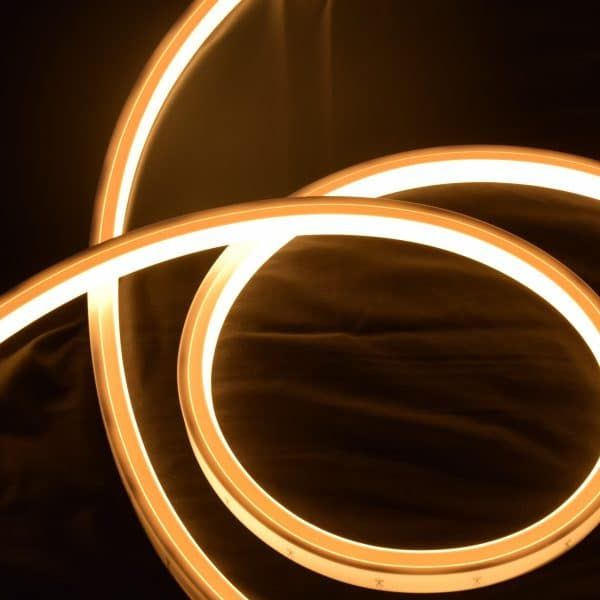

LED line top product picture LED Line Neon Top 40W 24V 560 LEDs
Content 4 Meter (62.45€ * / 1 Meter)
From 249.78€ *
Order number: 5938-808013
LED line neon connection cable product picture LED Line Neon Connection Cable Set
Content 1
4.32€ *
Order number: 808964

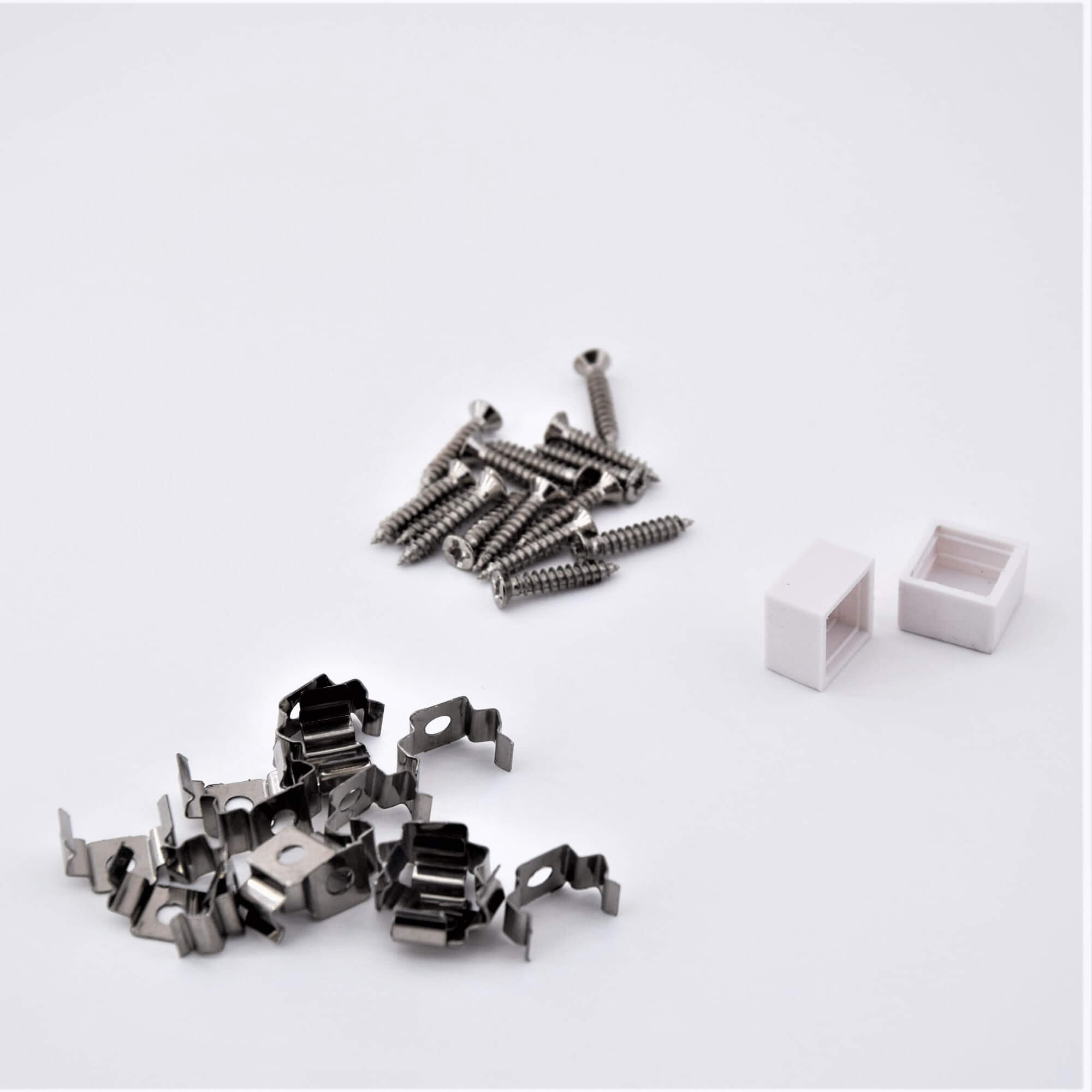

Accessory LED line neon MINI product picture LED line Neon mounting and sealing kit
