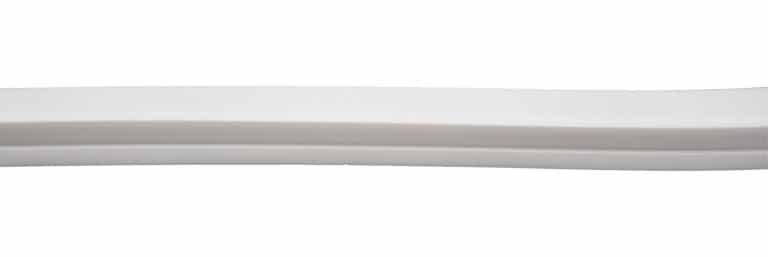

LED Line Neon Top 40W 24V 560 LEDs

A++ to A
From 249.78€ *
Net price: 215.33€
Content: 4 Meter (62.45€ * / 1 Meter)

Prices incl. VAT plus shipping costs

Please select a variant first

color temperature:


Meter

Flexible, weather-resistant LED line Neon Top 40W IP65/68 - variable illumination This... more

Flexible, weather-resistant LED line Neon Top 40W IP65/68 - variable illumination

This extremely flexible, waterproof LED line comes in 4m length with an upwars radiation. It is not only resistant to water and salt water, but also to UV radiation (protection level IP68). The product comes with connection cable 20 cm with plug IP65, on the other end connection cable 20 cm with suitable socket IP65.

Further product features:

  • Bending radius min. 150 mm, observe bending direction, only perpendicular to the mounting surface
  • Uniform illumination
  • Divisible between units
  • Energy efficiency class A+/44 kWh/1000 h
  • 5 years warranty due to Lumiled LEDs

Notes:

  • Mounting and sealing kit sold separately, article no. 808961
  • Pair of connection cables with plug resp. socket and open cable end sold separately article no. 808964

Technical data:

Article number 808013 808012 808011 808010 808016
Type ONT24-40-827-400 ONT24-40-830-400 ONT24-40-840-400 ONT24-40-865-400 ONT24-13-RGB840
Power 40 W 52 W
Power per meter 10 W/m 13 W/m
Nominal input voltage 24 VDC
Colour Temperature
2600K 3000K 4000K 6500K RGBW
Variance of colour temperature MacAdam Step 3 /
Luminous flux 3600 lm 3800 lm 4000 lm 4200 lm 2030 lm
Colour rendering index > 80
Ambient temperature (ta) -25..+45 °C max. 40 °C
Rated max. temperature (tc) 55 °C /
Number of LEDs 560 280
Protection level IP68 / IP65

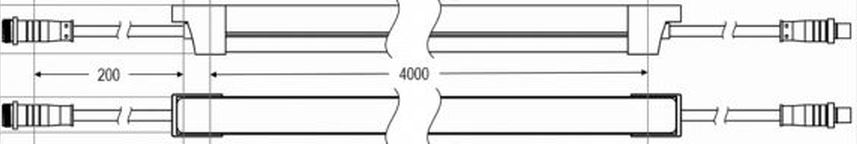

Dimensions 4000x16x15 mm
Length of an unit 50 mm 100 mm
Max. length after feed-in 6 m 4 m

Additional technical data for the RGBW version:

To 808016 Total RGBW White Red Green Blue
Max. Power 52 W 18 W 16 W 9 W 9 W
Luminous flux typical 2030 lm 1130 lm 300 lm 520 lm 80 lm
Colour temperature / wave length   4000 K 620 nm 523 nm 464 nm
Viewing angle 120°


For further information please refer to the data sheet in the Download tab.

Related links to "LED Line Neon Top 40W 24V 560 LEDs"
Waterproof LED strip 24V at 10W/m for different colour temperatures 2600K-6500K and RGBW,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 24V
Application/IP-Code: IP20 - IP44 (Indoor), IP65/67 (Outdoor)
Color Temperature/Color: 2700K, 3000K, 3500K, >5000K, RGBW
Amount LEDs/m: 140 LEDs/m
Power/Meter: 10-20W/m
Data sheet LED line Neon Top
for 2600K to 6500K
Data sheet LED line Neon Top
for RGBW
