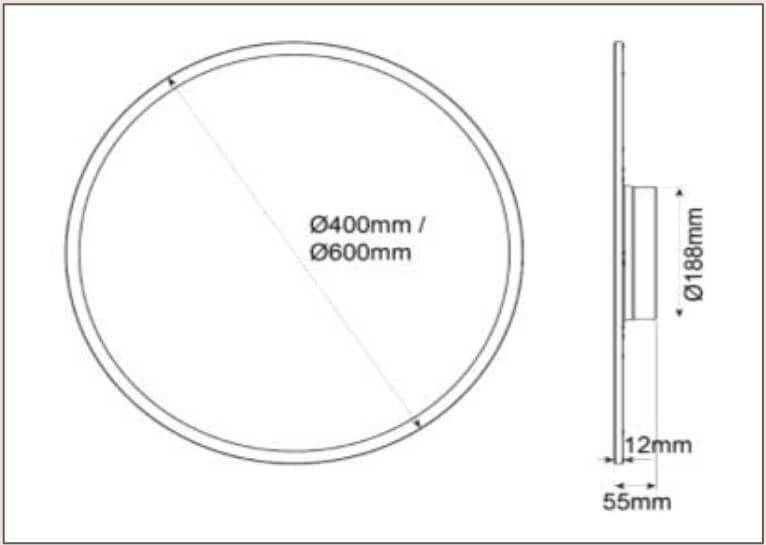

Dimensions of the Galileo Round LED Panel

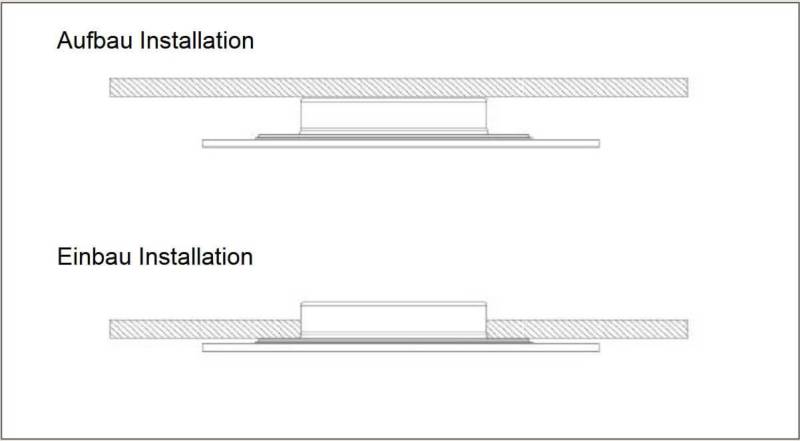

LED Panel Galileo Round 4000K installation

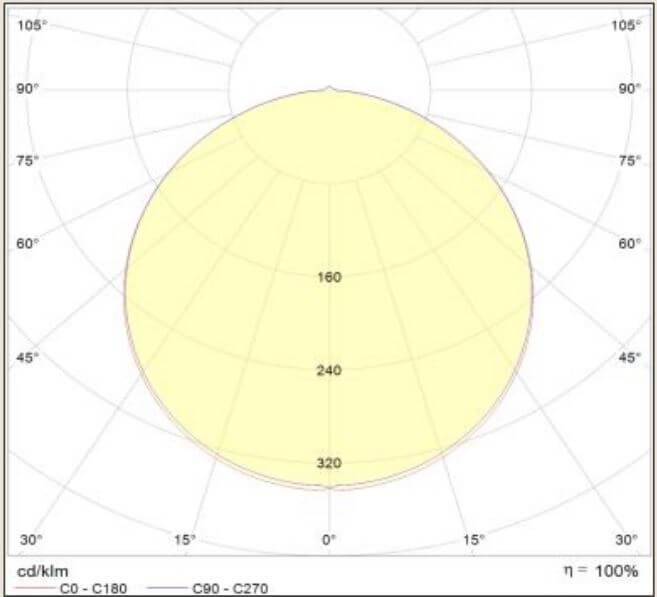

LED panel Galileo Round light distribution

Preview: Dimensions of the Galileo Round LED Panel

Preview: LED panel Galileo Round light distribution

LED Panel Galileo Round 4000K

Variants from 198.85€ *
Net price: 167.10€

Prices incl. VAT plus shipping costs

Please select a variant first

Order number: L1337-29001394-K
Weight: 3.195 kg
Manufacturer: BILTON LEDON Technology GmbH

Round LED luminaire 4000K series Galileo This round, elegant luminaire impresses with its... more

Close menu

Round LED luminaire 4000K series Galileo

This round, elegant luminaire impresses with its extraordinary and flicker-free light. It has a uniform light emission over the entire surface. GALILEO Round is ideal for applications that place the highest demands on light quality, efficiency and design.

Features:

Available with neutral white light (4000 Kelvin)
Building installation/ recessed installation without additional accessories
Flicker-free light
Sizes: diameter of 400 mm and 600 mm
Five-year manufacturer's guarantee, three-year full guarantee
Installation or construction, optionally with rope suspension

Technical data:

Housing	Aluminium
Version	white (RAL9016)
Rated Lifetime	50 000 h
Number of switching cycles until premature failure	100 000
Diameter	Ø 400 mm	Ø 600 mm
Height luminaire	12 mm
Total height	55 mm
Weight	3,1 kg	5,8 kg
Lamp Current	2900 lm	3500 lm
Luminous efficacy	97 lm/W	88 lm/W
Luminous efficacy including converter	83 lm/W	78 lm/W
Light colour	neutral white
Colour temperature	4000K
Colour rendering index Ra	80
UGR	< 25 UGR	< 22 UGR
Current	800 mA	1050 mA
Beam angle	110°
Warranty	5 years manufacturer guarantee, 3 years full guarantee

Further information and details regarding the respective converters can be found in the data sheet under Download.
