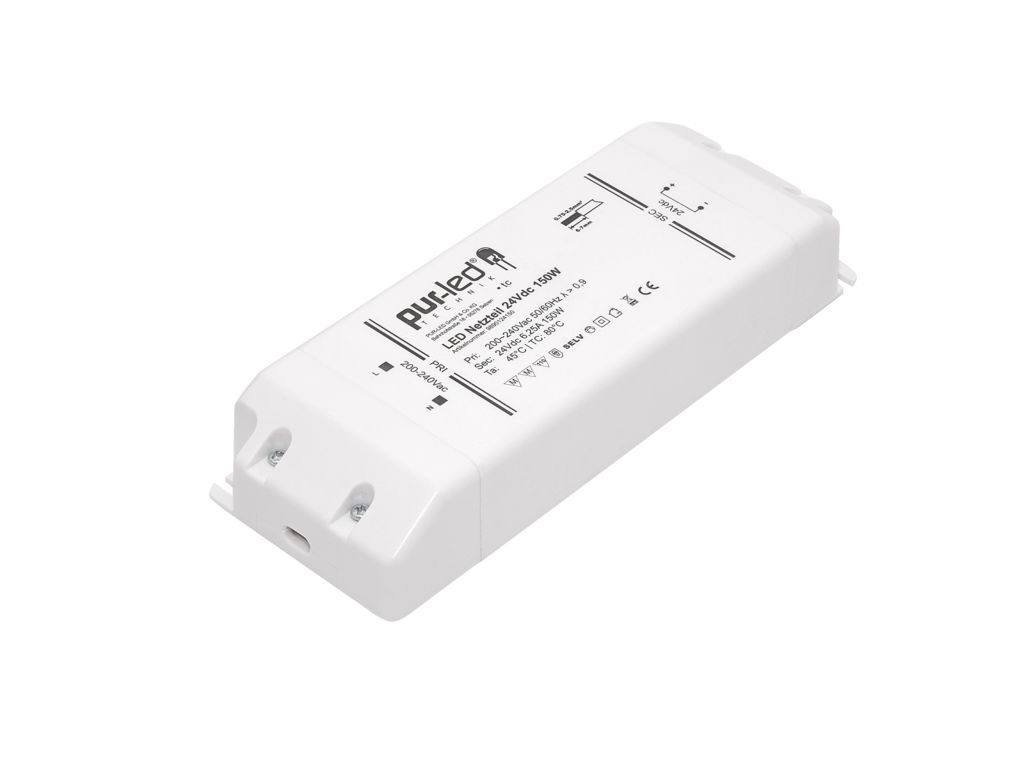

LED Power supply 150W IP20

Product information "LED Power supply 150W IP20"

150Watt LED powersupply for LED applicatation stabilized. No minimum load required.

While showing MM- and F-symbils the powersupply are allowed to operate on flammable surface. Sofar it can be used in furnitures.
High security by protections for over current, short or over temperature and further SELV, MM, F and safetyclass II.


Technical data of the 150 W powersupply.

Input voltage:230Vac
Input range:200-240Vac 50Hz
Output voltage:24Vdc especially for LED stabilized
Output current:6,25A max
Power:1-150 Watt (consider 10% reserve).
Efficiency:=94%
Surface color:white
Working range:-20°C to +45°C (tc=875°C)
Include connectors it fulfills:EN55015; EN61346-1; EN61347-2-13; EN61000-3-2 Class C; EN61000-3-3; EN61547
Safety:SELV, MM, F, Safety class 2, IP20
Protection:Protection for overcurrent, short, over temperature

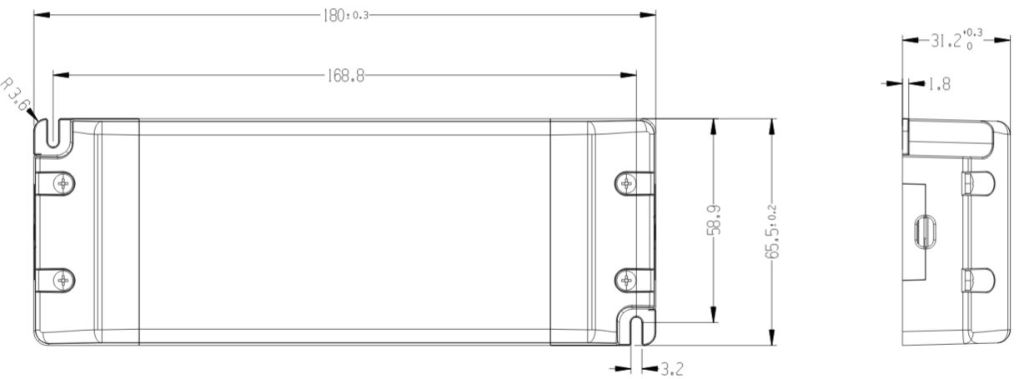

Dimensions (LxWxH) in mm: 180x66x32

This device must be installed by an electrician!

Additional info:
On the secondary side you can also realize cable lengths of 10-15m max.

For further information, please refer to data sheet in the Download tab.
Properties "LED Power supply 150W IP20"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Power range: 100 - 250 W
·Constant Voltage: 24V
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

Datasheet LED powersupply 150W
Sicherheits-und Montageanleitung
