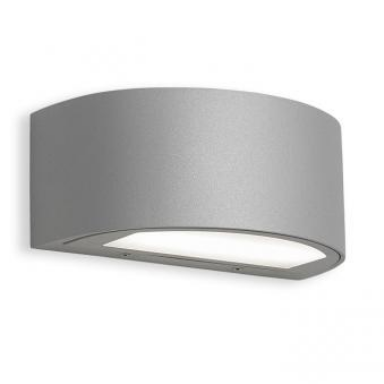

LED wall light for architectural lighting designThe version with transparent ultra-white glass shades and adjustable asymmetrical parabolic reflectors emits a direct, sharp and incisive light.
It is quite simple to adjust the reflector: adjustment can be made even if the light is on. Unscrew, lift the reflector, turn 180° and screw. This allows the light to be applied to the wall, with the wall-washer effect accentuated, or outwards e.g. be directed to the illumination of sidewalks.
- Opal glass and linear LED module
- Clear glass and Power LED
- Rear cable entry
- Surface treatment of aluminium: pickling+ phosphorus chromate + epoxy coating + varnish with UV-stabilized epoxy powder
- Housing colours white, graphite grey and metal grey
- Protection type: IP65
- Protection class: I
- Built-in electronic power supply
|Light up with||Linear LED module||Power-LED|
|System power||9,3 W||9,5 W|
|Colour temperature||3000K / 4000K||3000K / 4000K|
|Luminous flux||513 lm||1394 lm||930 lm||1860 lm|
|Connection voltage||230 V|
|Colour rendering index||CRI >80|
|System efficacy||55 lm/W||75 lm/W||98 lm/W|
|Energy efficacy||A++ - A|
For further information please refer to the data sheet in the Download-tab.
