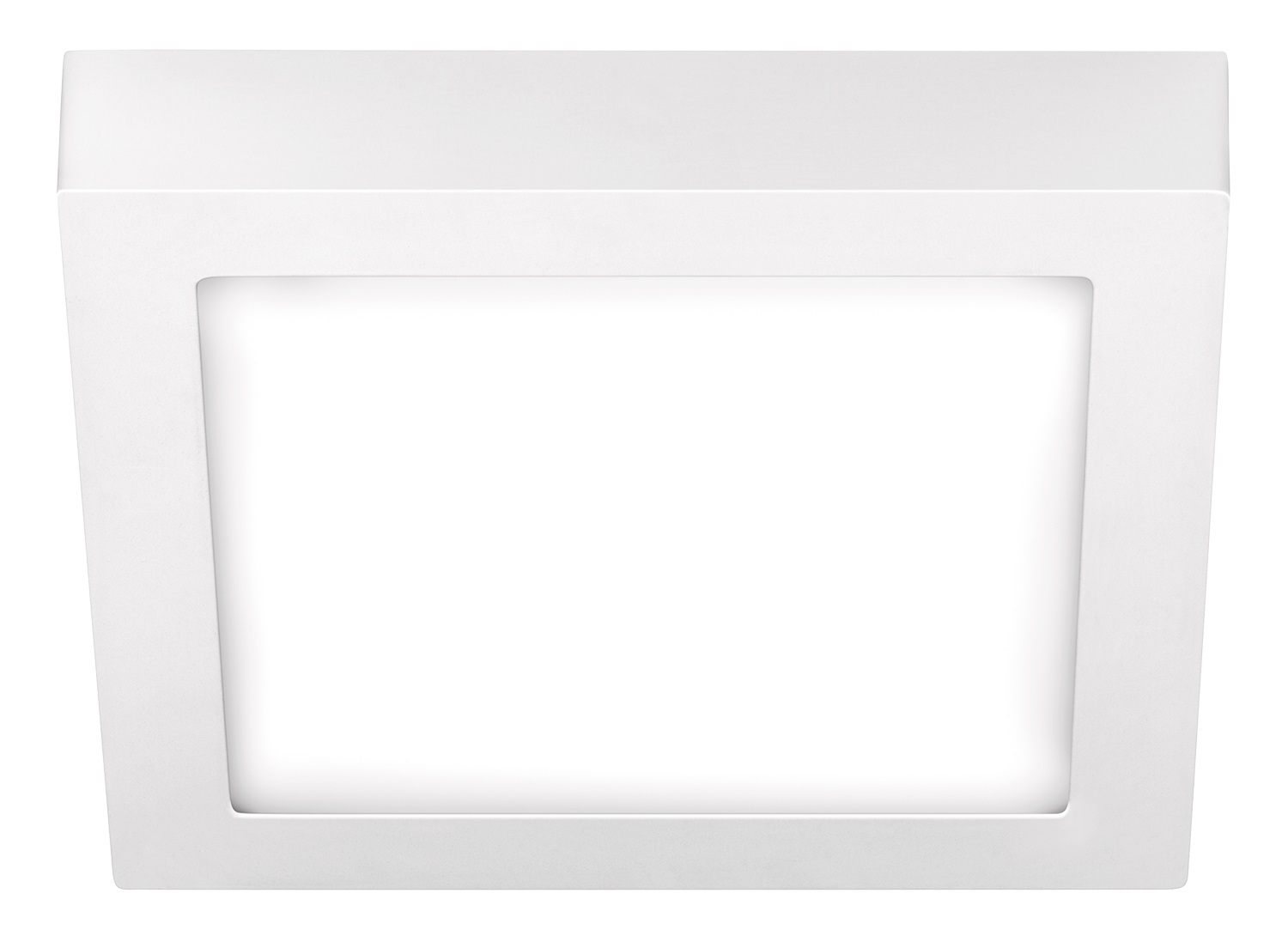

LEDON Downlight Newton Surface Mounted, round and square
LEDON Downlight Newton Surface Mounted, round and square
LEDON Downlight Newton Surface Mounted, round and square

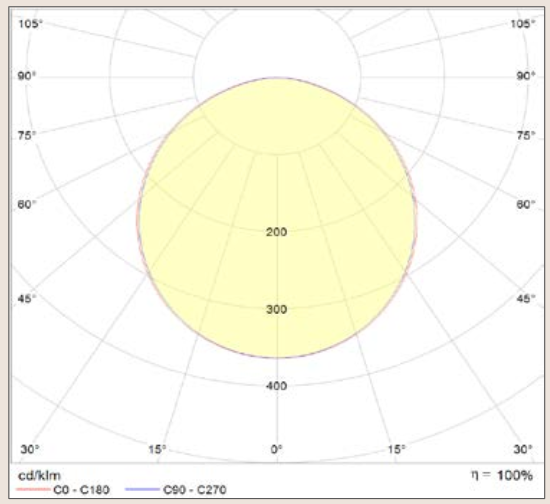

LEDON Downlight Newton light distribution
LEDON Downlight Newton Surface Mounted label

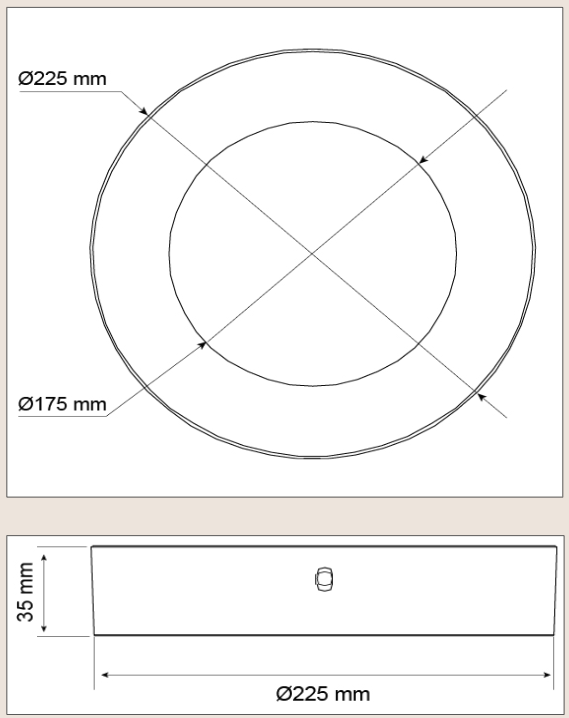

Dimensions of LEDON Newton round

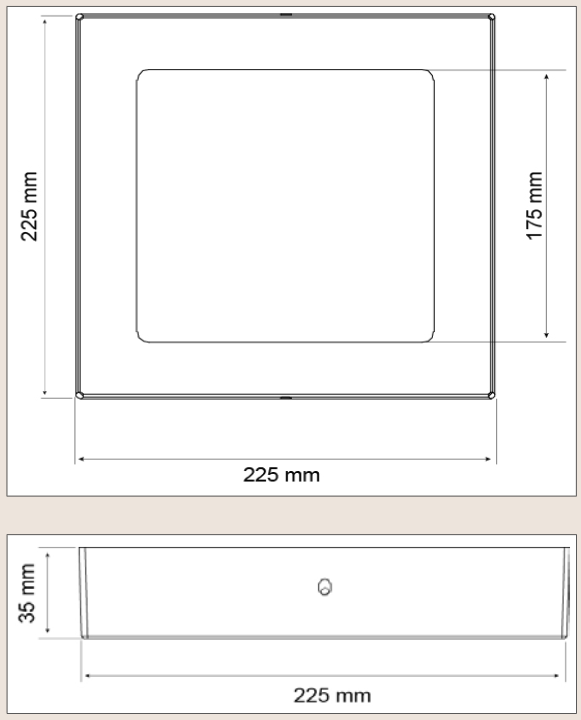

Dimensions LEDON Newton square
Preview: LEDON Downlight Newton Surface Mounted, round and square Preview: LEDON Downlight Newton Surface Mounted, round and square Preview: LEDON Downlight Newton Surface Mounted, round and square Preview: LEDON Downlight Newton light distribution Preview: LEDON Downlight Newton Surface Mounted label Preview: Dimensions of LEDON Newton round Preview: Dimensions LEDON Newton square


LEDON Downlight Newton Surface Mounted, round and square

LEDON GmbH
A++ to A
From 47.48€ *
Net price: 39.90€

Prices incl. VAT plus shipping costs

Please select a variant first

Size:

color temperature:

Combinations:


piece

  • Order number: 2538-3K-225R-0
  • Hersteller-Nr.: 29001293
  • Weight: 0.6 kg
  • GTIN/EAN: 9009453012203
  • Manufacturer: LEDON GmbH
Description Features Downloads Evaluations 0
Description
LEDON LED Downlight Newton round and square, for surface-mounting The compact LED... more
Close menu

LEDON LED Downlight Newton round and square, for surface-mounting

The compact LED surfaced-mounted Downlights by LEDON are characterized by their very flat design (3.5 cm) and the homogeneous light distribution. Different versions with different brightness levels enable the use of hall and corridor lighting,
the workplace, in public spaces to the private living area.


Highlights of the LED Downlight Newton Series:

Specifications:

Article Numbers 29001297 29001298 29001293 29001294
Colour 3000K 4000K 3000K 4000K
External Dimensions mm  225 x 225 225 x 225 225 round  225 round
Rated Wattage 22 22 22 22
Rated Luminous Flux lm 1900 2000 1900 2000
Max. Luminous Intensity 700 700 700 700
Input Current mA 700 700  700 700
Beam Angle 110° 110° 110° 110°


To operate the LED panel downlights, a constant current LED converter is required.

Further technical data as well as information about the LED converters can be found in the data sheet:

Related links to "LEDON Downlight Newton Surface Mounted, round and square"
Features
LEDON Flat Downlights Serie Newton, square, different Variations more
Close menu
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Lamp shape: Ceiling/wall mounting
Dimmable/Control: 1..10V, DALI, Push-Button
Color Temperature/Color: 3000K, 4000K
Downloads
more
Close menu
Product-Flyer Newton
Product Flyer LEDON Newton Surface-Mounting, Round and square Versions
Installation Newton round
Installation-Manual for LEDON Newton Surfaced and Round Version
Installation Newton square
Installation Manual for LEDON Newton square
Data-Sheet Newton 4000K
Data-Sheet Newton 3000K
EULUMDAT (ZIP,LDT)
