Lido 235

Product information "Lido 235"

Illuxtron Lido 235 Downlight

These lamps are available as stepdimming (triac) version in 3000K and 4000K. A selection of housing colours is available.

What makes these LED downlights so special are the reflectors with micro facets. These micro facets of the Sensor series provide perfect illumination of objects and rooms.
The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Lido 235 series:

Housing colourmatt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)
MaterialHousing: Die-cast aluminium
Reflector glass: Polycarbonate

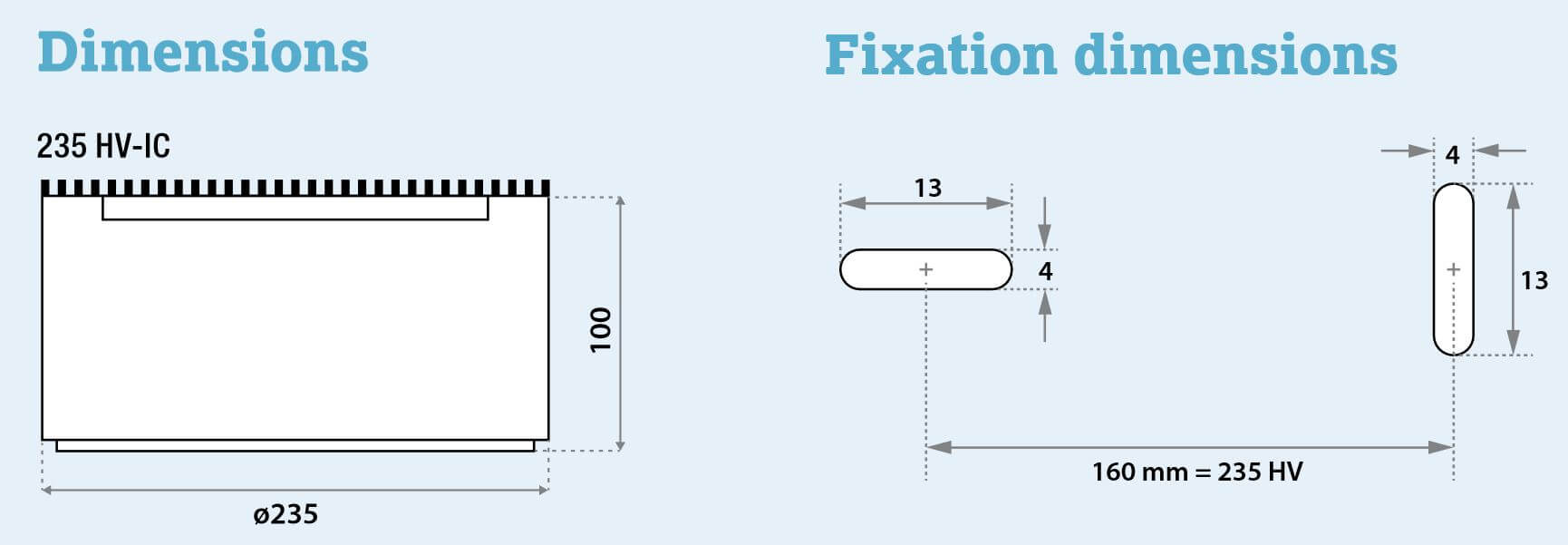

Dimensions235 mm x 100 mm
UsageIndoors
Beam angle(FWHM)80°
UGR21,7
CRI / Ra (typ.)97
Colour Consistency (MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK03
Operating temperature (Ta)-20°C / +45°C
Lifetimeat 25°C
L70B50>189.000
L80B50>116.000
L90B50>87.000
Safety signsEN60598 / EN62031 / EN62471
EMV-DirectiveEN55015
Guarantee7 years
Energy classA


Lido 235 Low Voltage (LV)

High Efficiency, CRI 97

The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.

Further information on Lido 235 LV surface-mounted downlights can be found in the respective data sheet.

Dimmability

1-10V & Push (*Note)

Art.No.811C03XXY702811C03XXY102811C03XXY402
Colour temperature3000 K4000 K
Luminous flux
Lm/W (with EVG)81125139

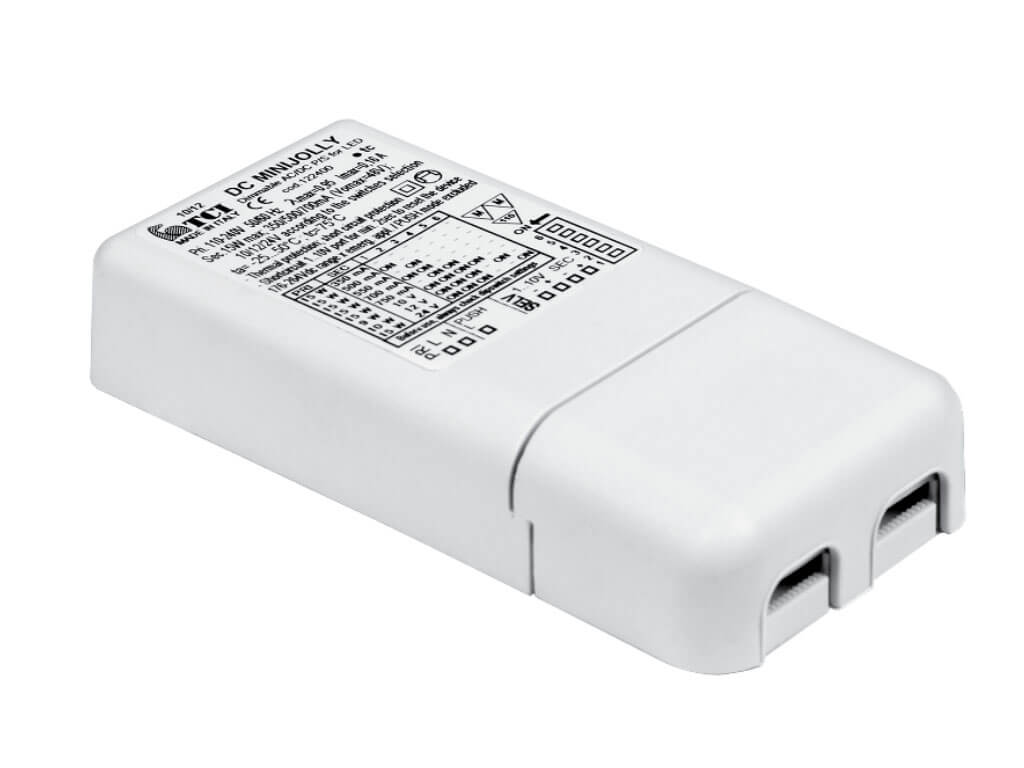

TypeInc. PSU
Input220-240 V
Power17,9 W
Protection classII
Pf0,95

*Note: This surface mounted luminaire is also available as DALI and switchable version.

For data sheets of the Lido 235 series downlights see Download tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specifications especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.

Properties "Lido 235"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 3000K, 4000K
·Dimmable/Control: 1..10V, DALI
·Lamp shape: Ceiling/wall mounting
·Power range: 5 - 20 W
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Datasheet Lido 235
