MAVOMASTER - MAVOPROBE light meter

Variants from 474.81€ *
Net price: 399.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Type:

MAVOMASTER - MAVOPROBE - light meter with measuring probes One device - four measuring probes... more

MAVOMASTER - MAVOPROBE - light meter with measuring probes

One device - four measuring probes - one light measuring system

The innovative light measurement system Mavomaster and Mavoprobes provides absolute flexibility and security for all applications and thus takes light measurements to a new level. With the MAVOMASTER - MAVOPROBE, efficient testing and certification of light in a wide variety of applications is possible.

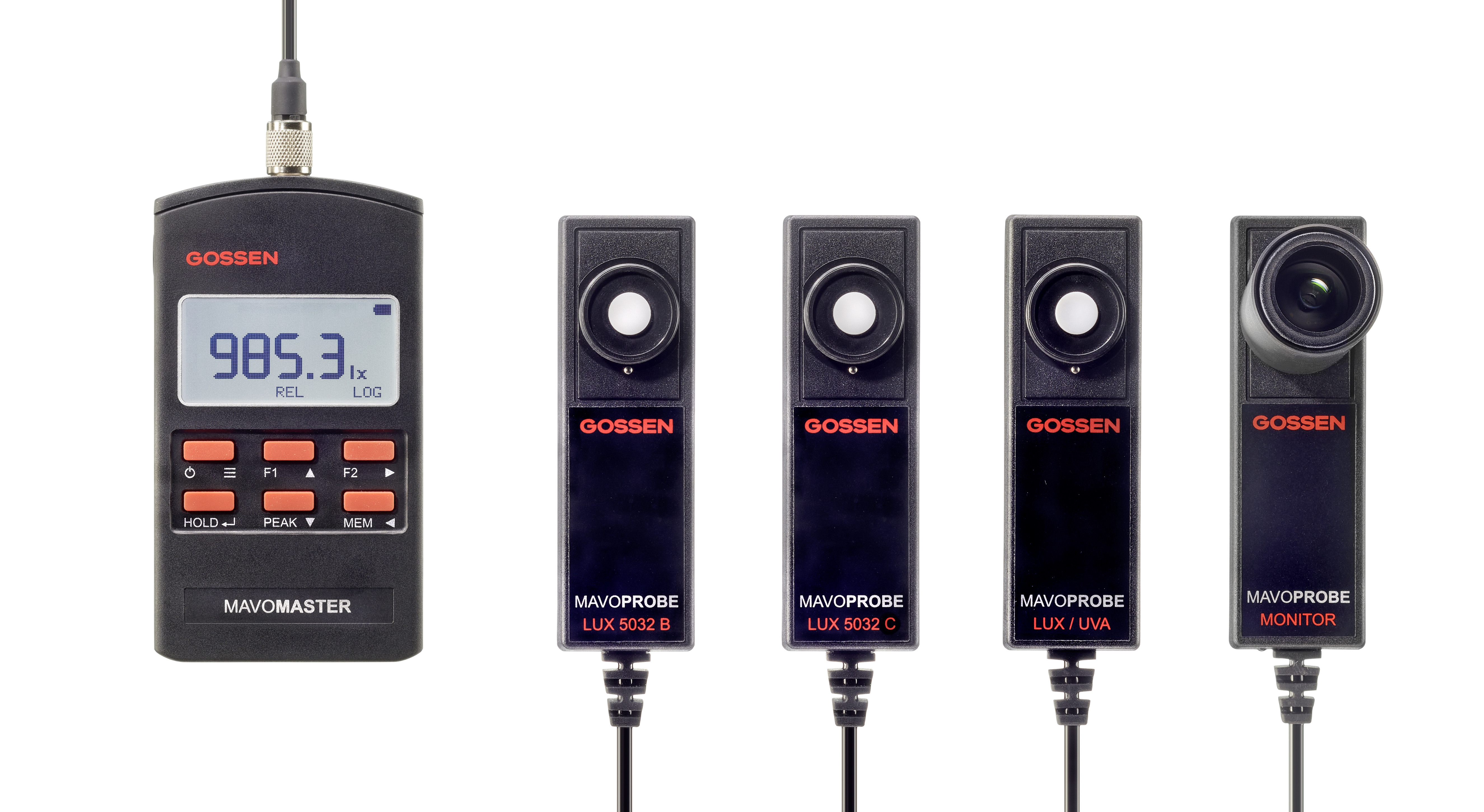

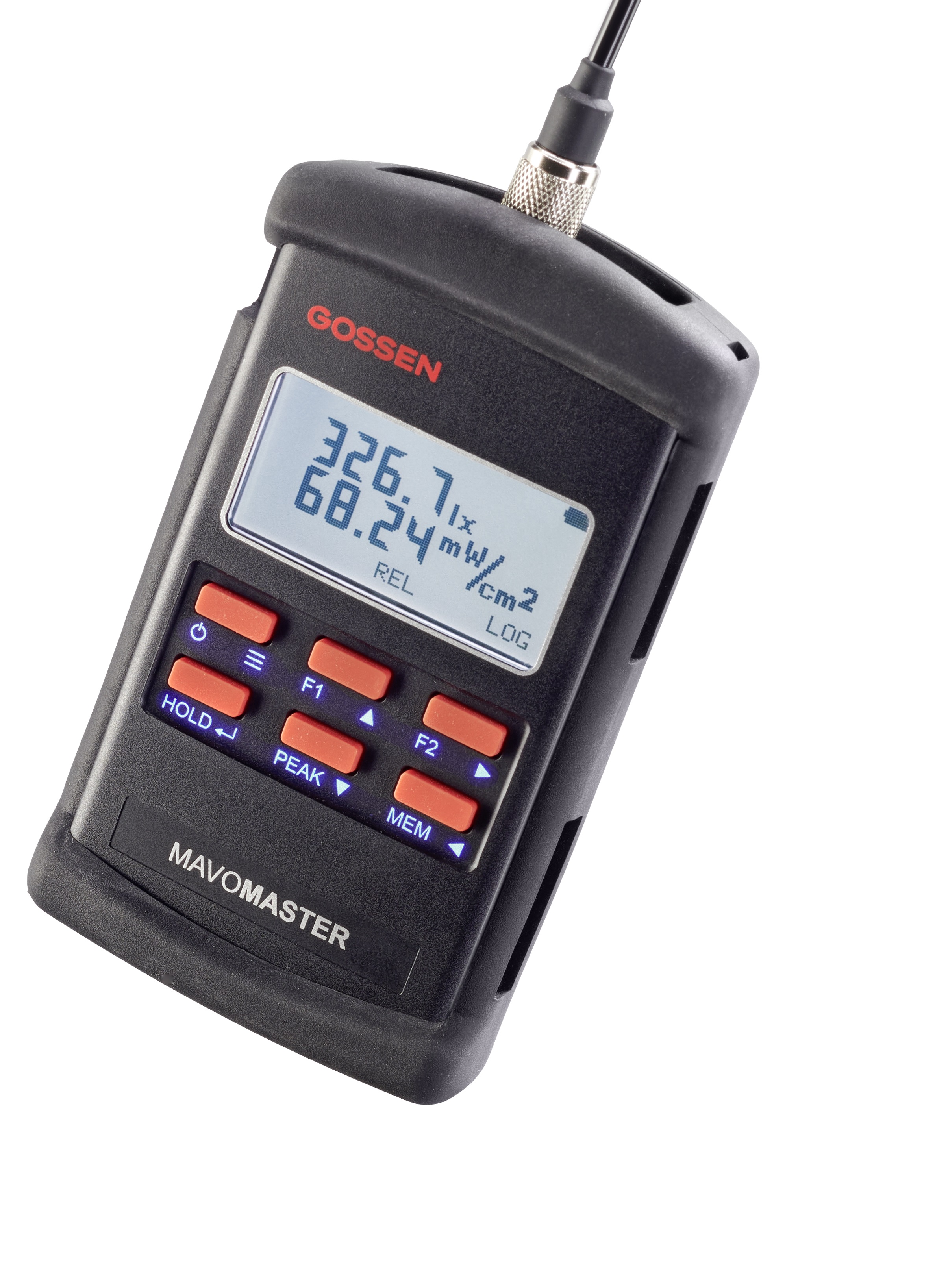

The universal MAVOMASTER basic device can be easily and flexibly combined with the various available measuring probes, the MAVOPROBES. The MAVOMASTER (item number M525G) is a compact operating and display device with 8 GB measured value memory and US 2.0 interface as well as Micro-B socket. A 1.5V mignon, type AA battery is used, which guarantees up to 16 hours of continuous Operation.

The measuring probes - MAVOPROBES

With the four classified MAVOPROBES LUX 5032 B, LUX 5032 C, MONITOR and LUX / UVA, illuminance, luminance as well as illuminance and irradiance UV-A 365nm can be measured. Each measuring probe has its own intelligence, can be calibrated individually and delivers its measured values directly to the MAVOMASTER via a serial interface. When using the USB adapter, the MAVOPROBE can be connected directly to a PC or USB hub and single or multi-channel measuring systems can be set up. The power is supplied via the USB interface, the protocol of which is disclosed.

MAVOPROBE LUX 5032 B / C - high precision illuminance probe

MAVOPROBE LUX 5032 are available in class B or class C illuminance. Both variants have both V(λ) adjustment and cosine correction and reliably measure the illuminance of daylight and all artificial light sources. No accessories are required, even in the strongest daylight or headlights.

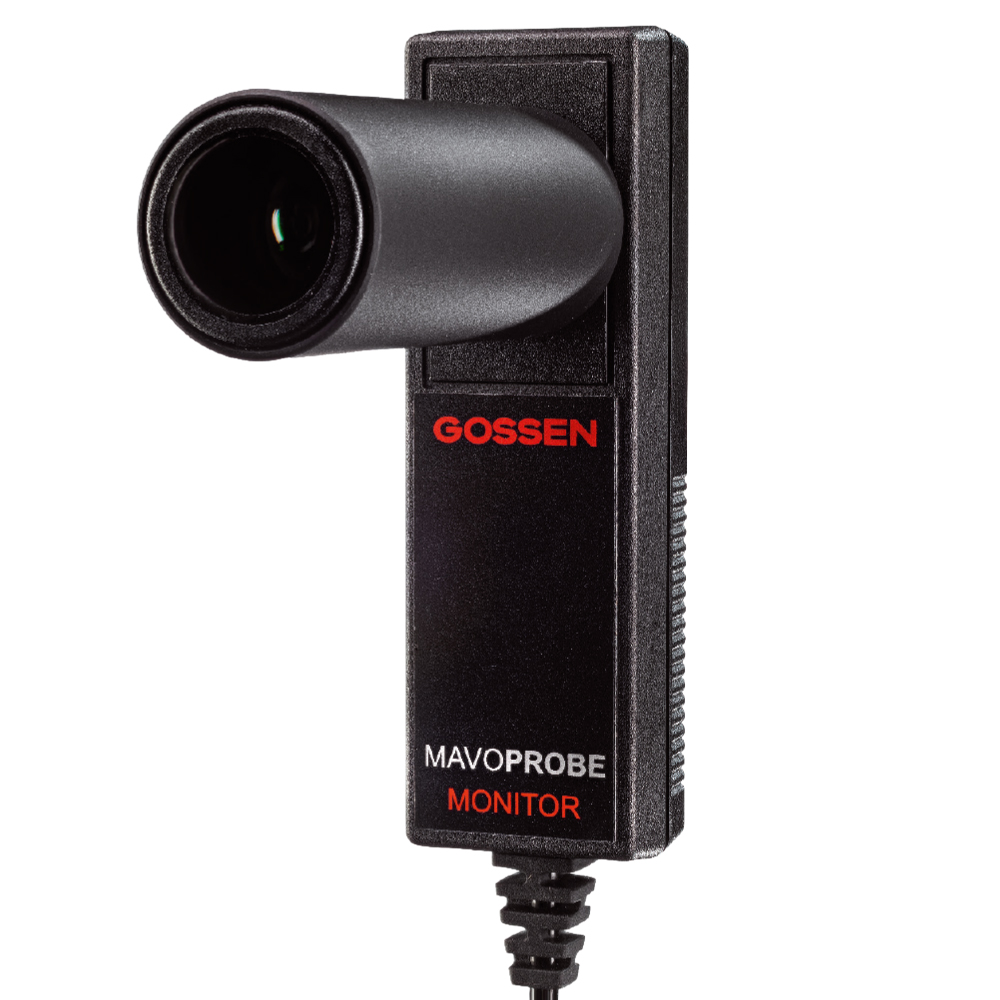

MAVOPROBE MONITOR - high-precision luminance probe

MAVOPROBE MONITOR for contact measurement is classified in class B according to. It measures the brightness effect of a luminous surface in candela per square meter (cd/m²) or foot-lambert (fL). The excellent adaptation to the spectral brightness perception of the human eye V(λ) with the small deviation of f1' < 3% is significantly better than the requirement of the standard.

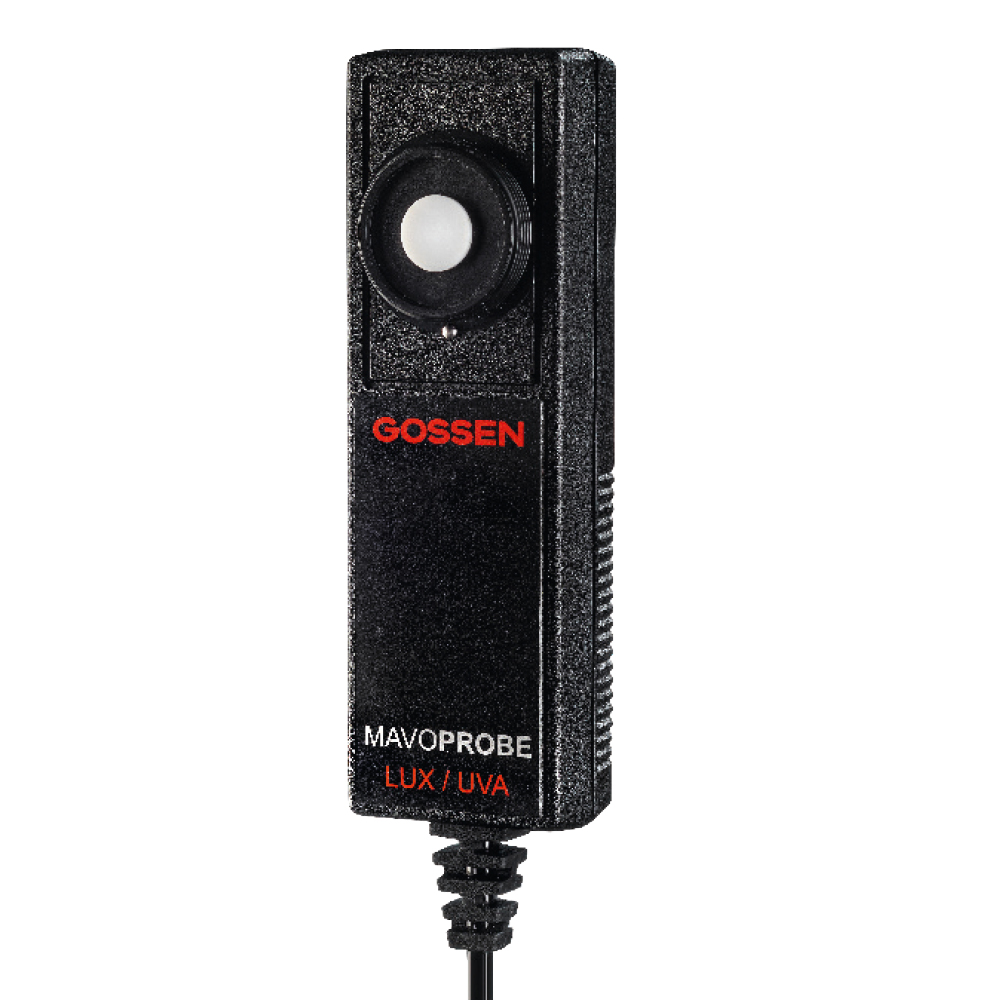

MAVOPROBE LUX / UVA - high-precision combination probe for non-destructive testing

MAVOPROBE LUX / UVA is classified in class B for illuminance and the measurement of UV-A irradiance corresponds to the requirements of DIN EN ISO 3059 and ASTM E2297 for measuring devices for fluorescent penetrant and magnetic particle testing.

The advantages of MAVOMASTER - MAVOPROBE:

  • Universal use: Each probe can be operated with a MAVOMASTER as a self-sufficient measuring device. Alternatively, it can be used inexpensively with an optional USB adapter in single or multi-channel measurement Systems.
  • Inexpensive system structure: Through the use of commercially available USB accessories and open pin assignments.
  • Individual system integration and sustainable system concept: Through open interface protocols for device control and data communication.
  • Simple continuous operation: due to power supply of the individual components via USB interface.
  • Customized cable length: With optional 3 m, 5 m, 10 m extensions for the measuring probes.

Technical data of the MAVOPROBES:





MAVOPROBE LUX 5032 B MAVOPROBE LUX 5032 C MAVOPROBE LUX / UVA MAVOPROBE MONITOR
item number M527G M528G M526G M529G
type measuring probe for
illuminance
measuring probe for
illuminance
measuring probe for illumination
and irradiance
measuring probe for
luminance
illuminance

0,001 lx … 199 990 lx /
0,001 fc … 19 999 fc

0,1 lx … 199 990 lx /
0,01 fc … 19 999 fc

0,001 lx … 199 990 lx /
0,001 fc … 19 999 fc


luminance

0,01 cd/ … 1 999 900 cd/ / 0,001 fL … 199 990 fL with optional luminance attachment, not classified

1 cd/ … 1 999 900 cd/ / 0,1 fL … 199 990 fL mit with optional luminance attachment, not classified

0,01 cd/ … 1 999 900 cd/ / 0,001 fL … 199 990 fL with optional luminance attachment, not classified

0,001 cd/ … 19 999 cd/ / 0,0001 fL … 1999 fL

irradiance –
UV-A 365nm


0.01 μW/cm² … 199 990 μW/cm²



measurement rate

2/s

sensor

Silicon photodiode with
V(λ) filter
Silicon photodiode with
V(λ) filter
Silicon photodiode with
V(λ) filter
Silicon photodiode with UV-A filter according to DIN EN ISO 3059
Silicon photodiode with
V(λ) filter
measuring head with 1/4" tripod thread

probe connection cable 1.5 m, pluggable, Binder plug series 711, 5-pin
standard conformity

DIN 5032-7 Klasse B /
DIN EN 13032-1 Anhang B / ISO CIE 19476

DIN 5032-7 Klasse C /
DIN EN 13032-1 Anhang B /ISO CIE 19476

DIN 5032-7 Klasse B / DIN EN 13032-1 Anhang B /ISO CIE 19476 / DIN EN ISO 3059 / ASTM E2297-15

DIN 5032-7 Klasse B / DIN EN 13032-1 Anhang B / ISO CIE 19476

Parameter – V(λ)
Adjustment f1' typical

< 3%

< 7,5%

< 3 %

< 3 %

Parameter - cos-true evaluation f2 typical

< 2%

< 2%

< 2 %


temperature dependence

< 0,1%, temperature compensated

accuracy

±  2,5 % f. reading ± 1 Digit

±  3 % f. reading ± 1 Digit

±  2,5 % f. reading ± 1 Digit,
±  10 % f. reading ± 1 Digit (UV-A 365 nm)

± 2,5 % f. reading± 1 Digit

For more information, please refer to the PDF files under Downloads.
