Meanwell PCD-60 constant current source

Product information "Meanwell PCD-60 constant current source"

Constant Current Source Meanwell PCD-60

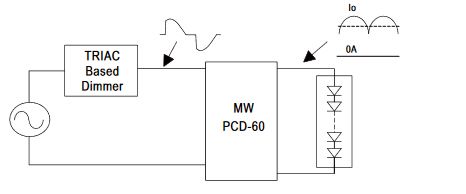

The PCD series (Power Current Dimmable) stands for constant current sources, which can be used with conventional leading edge and trailing edge dimmer.
In this way it is possible to operate LED lamps (for constant currents) with commercially available wall dimmer.
For example, swap halogen spotlights with LED spotlights and exchange halogen transformer against PCD60 and still control your lighting with conventional dimmer.

Meanwell PCD constant current led driver



Available versions:  500mA, 700mA, 1050mA ,1400mA, 1750mA, 2000mA and 2400mA constant current output

Features of PCD60 by Meanwell:

  • AC phase-cut dimming
  • Work with leading edge and trailing edge dimmers
  • 115VAC or 230VAC models available
  • Fully isolated plastic case, IP42
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Built-in active PFC function
  • Cooling by free air convection
  • 100% full load burn-in test
  • High reliability
  • Suitable for indoor LED lighting applications
  • Low cost
  • 3 years warranty for all PCD60



Technical data PCD60 Meanwell

Parameter
 operating condition

MinTypMax
Input voltage rangeMains operation or operation via AC dimmer180 V 295 V
Frequency rangeMains frequency47 Hz 63 Hz
AC current consumption25°C, 230VAC at full load  0,6 A
Output voltage secondary

Type depends on - see data sheet

Output current

Depending on type and dimming.
Following options available:

  • PCD-60-500B -> 500mA
  • PCD-60-700B -> 700mA
  • PCD-60-1050B -> 1050mA
  • PCD-60-1400B -> 1400mA
  • PCD-60-1750B -> 1750mA
  • PCD-60-2000B -> 2000mA
  • PCD-60-2400B -> 2400mA

More details see data sheet

Power input PCD-25230VAC: Full load54W  60W
Efficiency230VAC: Full load 85 %
Operating by ambient temperature - 30 °C + 45°C
Conformity:CE, SELV,
ENEC EN61347-1,
EN61347-2-13,
EN62384,
EN55015,
EN61000-3-2 Class C,
EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11,
EN61547
ProtectionIP 42

Dimming, Compatibility:
Tested and compatible
to the manufacturer:

Details see data sheet

Lutron
Berker
Jung
Clipsal
Dimensions128mm x 60mm x 31,5 mm



Properties "Meanwell PCD-60 constant current source"
·Power range: 50 - 100 W
·Dimmable/Control: Phase-Cut (Triac)
·Constant Current: 0,35A, 0,5A, 0,7A, 1,05A, 1,75A, 2,4A
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry
