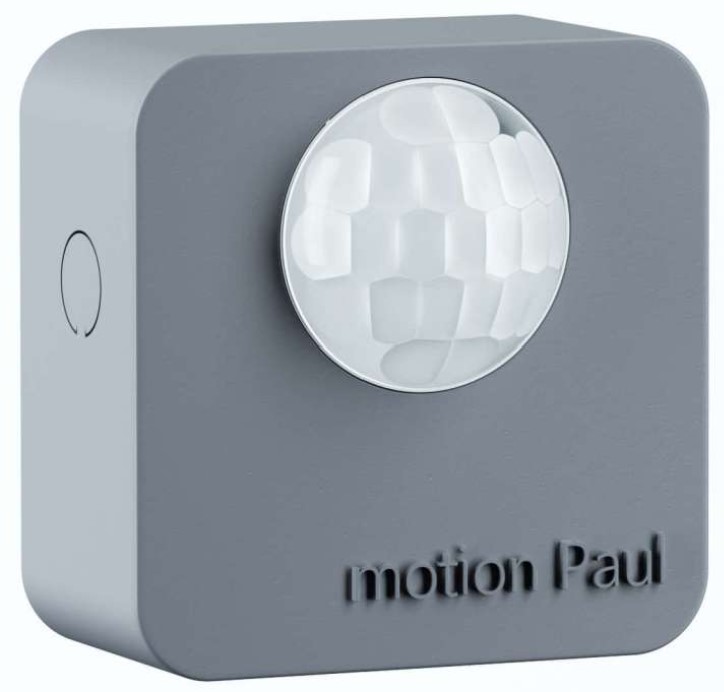

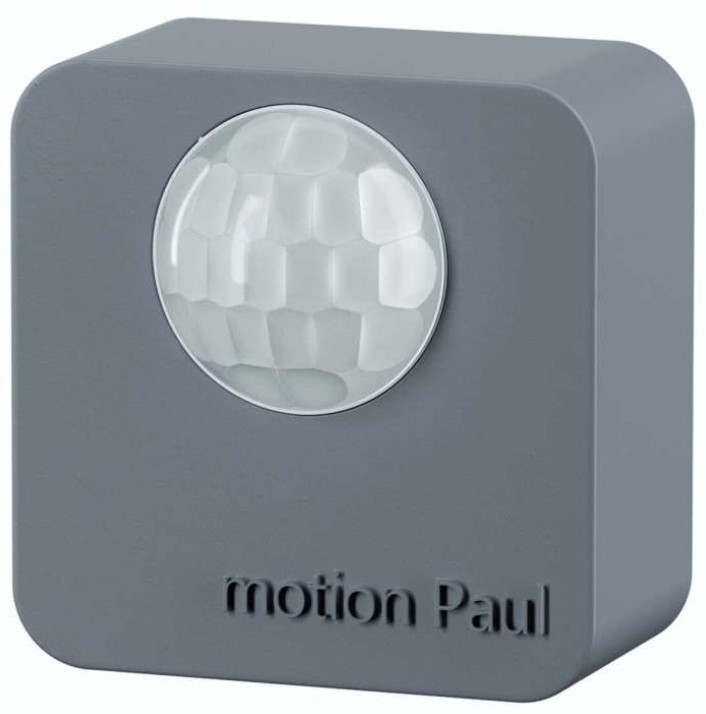

Motion Paul motion sensor
The battery-operated Motion Paul motion sensor with PIR (& quot; Passive Infrared & quot;) technology with integrated daylight sensor provides automatic lighting control everywhere in buildings, houses and offices. The Motion Paul Sensor is activated or deactivated when movement is detected and can be used via the CASAMBI app to control lights, for example room-based light scenes, duty cycle, brightness or color temperature.
The Motion Paul motion sensor has an extremely fast response time of less than 0.2 seconds & nbsp; and & nbsp; range of 12 meters at a radius of 8 meters.
The motion sensor only reacts when there is not enough daylight. This can be adjusted by setting the threshold value and is therefore extremely energy-saving.
Configurable on smart devices with the Casambi app. Connect the Paul motion sensor to your system via the CASAMBI app and your CASAMBI lamps or systems switch on automatically when you enter an area or room. The free CASAMBI app is required for commissioning.
The magnetic wall bracket with self-adhesive mounting plate ensures that the Motion Paul can be installed quickly and easily anywhere.

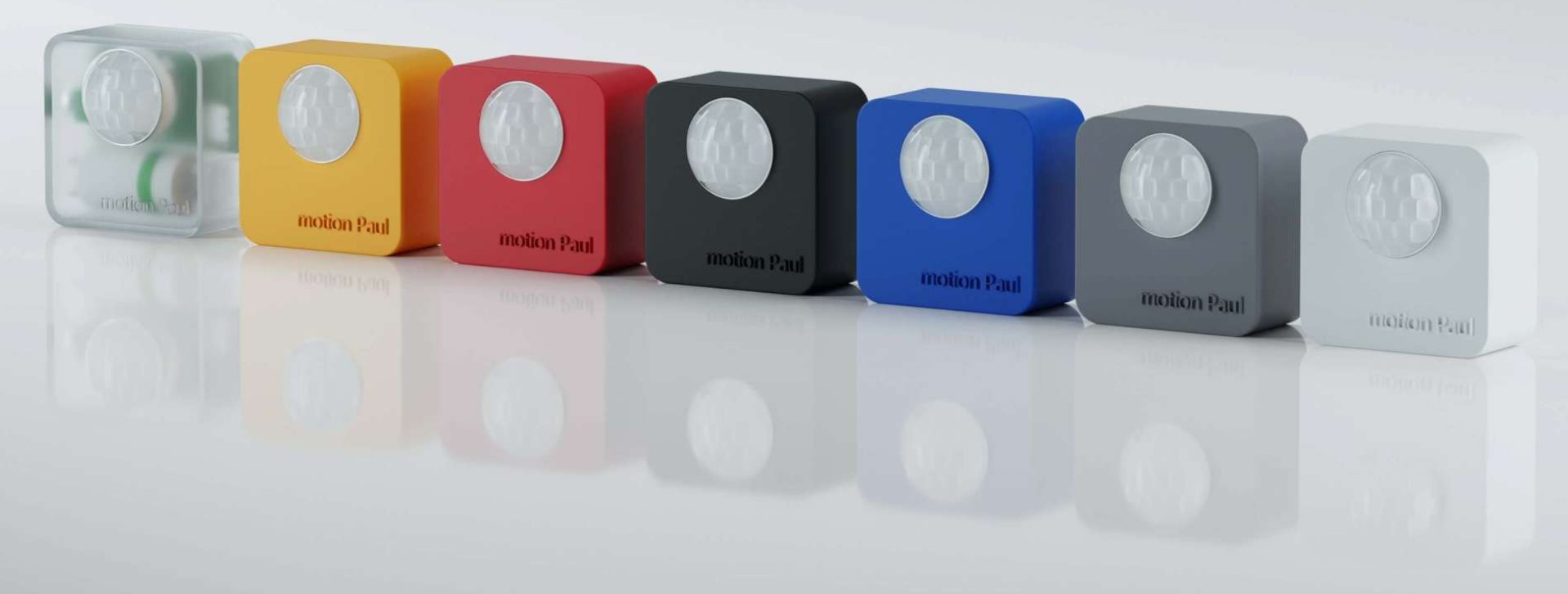

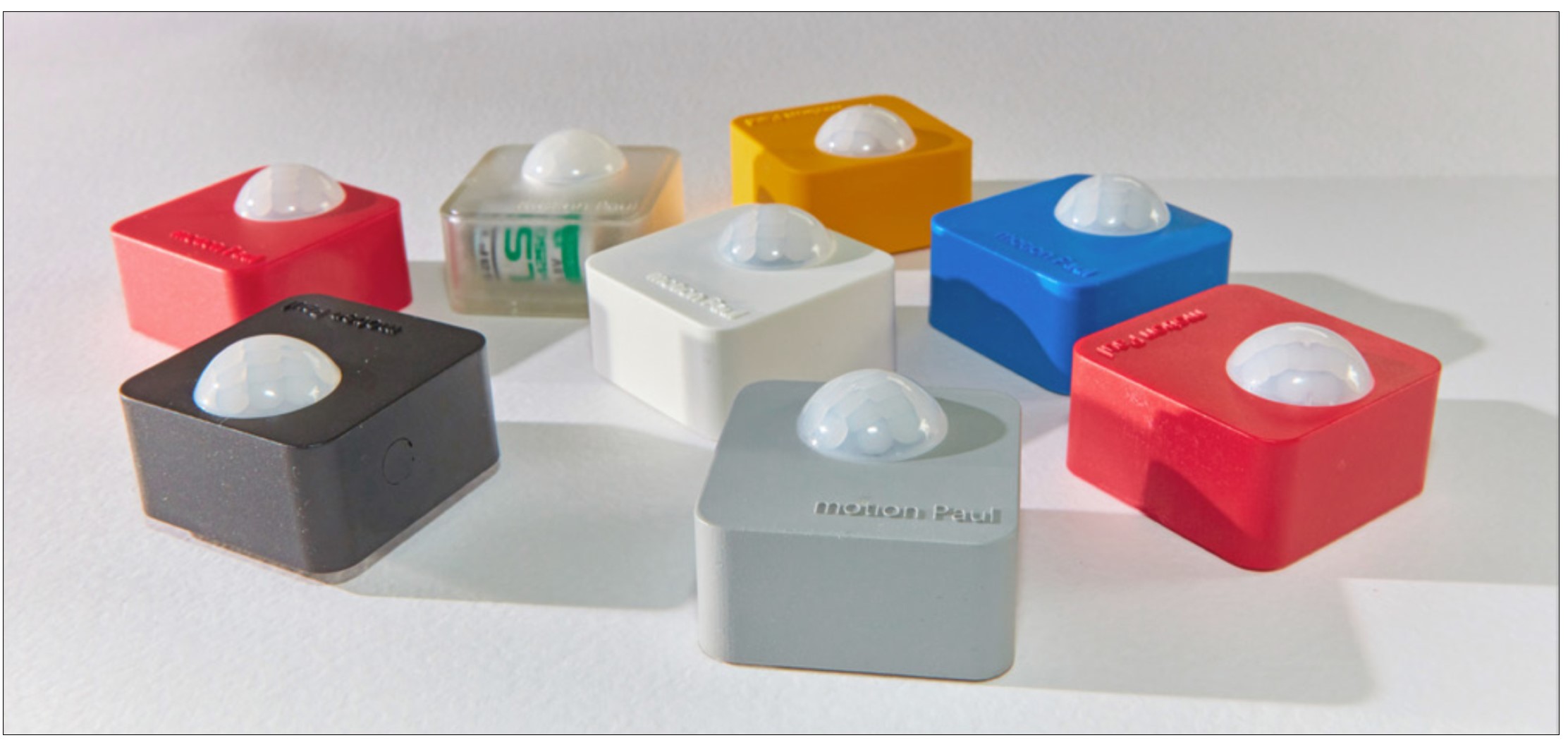

The motion Paul is available in the colors
- light gray
- Various colors possible on request
Technical data Motion Paul 808881 - 808882 - 808883 - 808884
|Supply input||3.6 Vdc (1 x lithium LS14250)|
|Radio signal|| |
2.4..2.483 GHz; 4 dBm

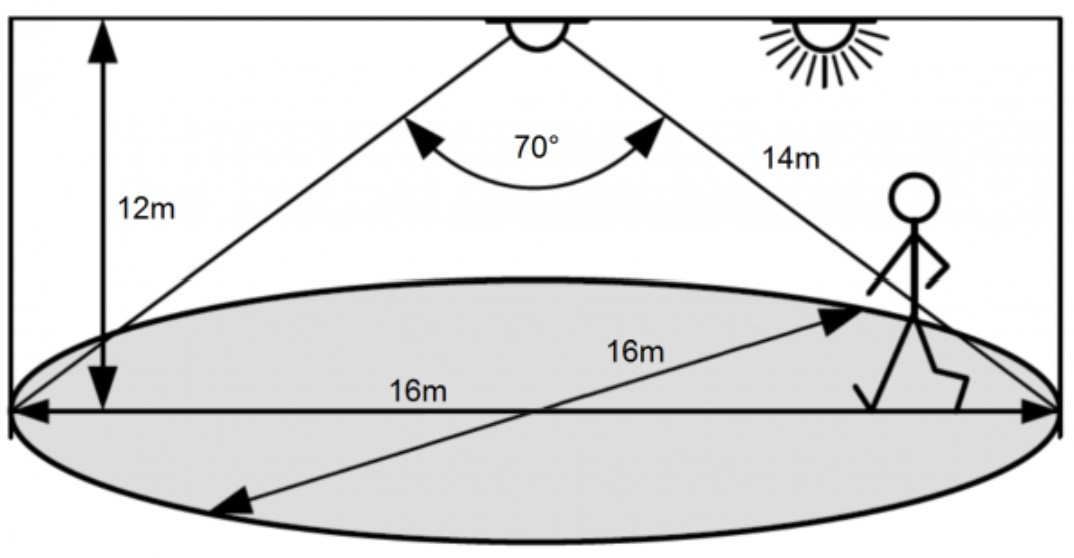

|Sensor range||max. 14 m, 70 ° horizontal, 128 zones max. 14m, 70 ° horizontal, 128 zones|
|Response time|| |
|Ambient temperature||-20 .. + 40 ° C|
|Degree of protection||IP 30|

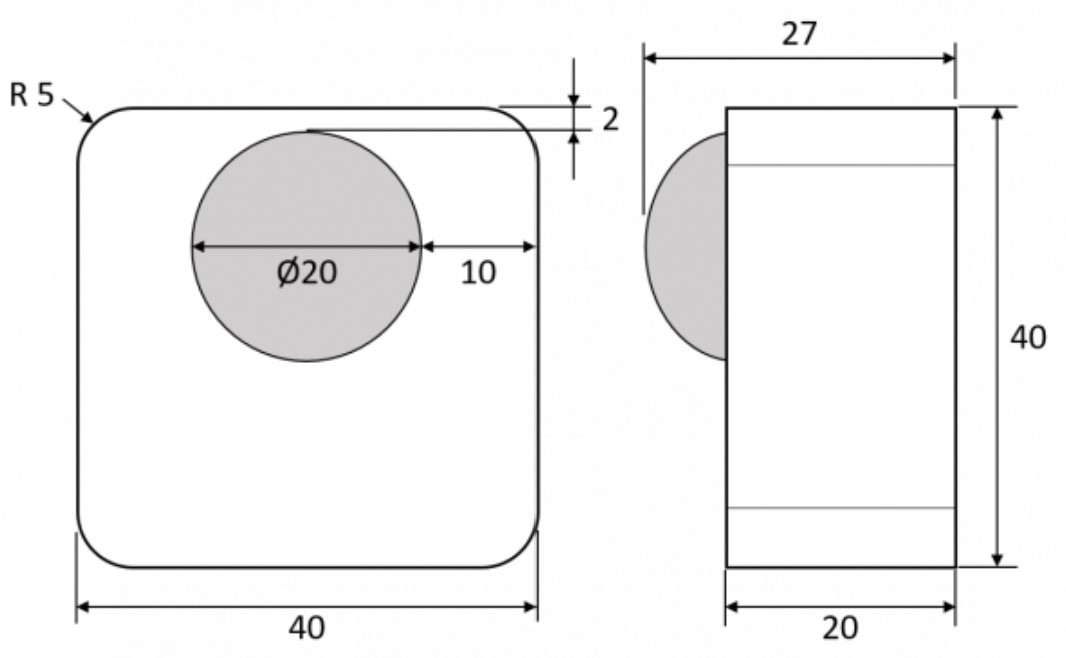

|Dimensions||40 x 40 x 27 mm|
And this is how it works:
Unpack Motion Paul, press the button and integrate it into the Casambi network app - finished. With the motion Paul you have a smart solution wherever light needs to be controlled more efficiently and faster by presence.
- wireless installation
- battery operated
- Energy class AAA +
- automated lighting
- Scene, group, duration can be configured in the app
- Trigger threshold, LDR programmable by pressing a button
- Installation at any location using a magnet
- no maintenance, long battery life (with typical use up to approx. 5 years)
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Dimmable/Control:||BT4.0 (2,4 GHz), Casambi radio|
