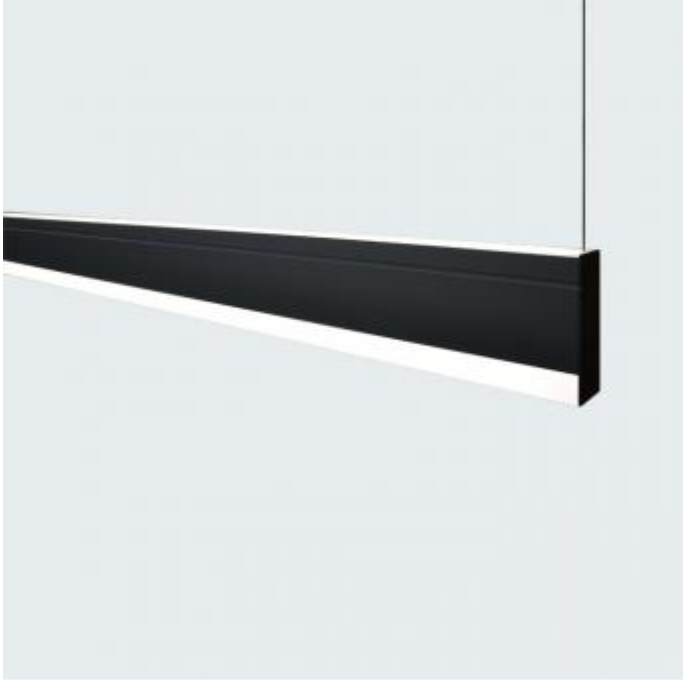

Futuristic LED pendant luminaire 72W 3800lm - dimming with DALI or ZigBee or Casambi
With VIBE you get a pioneering pendant luminaire that takes biometric light to a new level. It immediately catches the eye of every observer - especially because of its unique design, which is combined with high-quality materials. In addition to PI LEDs, the luminaire has a powder-coated aluminum frame. At the same time, VIBE is fully in line with Human Centric Lightning: The simulation of the daylight sequence allows you to cover a wide color temperature range from 1800 K to 16000 K.
Another highlight are the innovative control options from VIBE:
- Smart lighting control with NeoLink / ZigBee
- Control of complex lighting systems with DALI DT8
- Control via Casambi possible
- series of measurements with the PI-LED spots from Kiteo
Furthermore, the pendant luminaire can be controlled directly and indirectly separately. In addition, the operating temperature is monitored with an automatic dimming protection function.
Product overview and features:
- Unique futuristic design
- High-quality materials, e.g. aluminum frame powder-coated, RAL 9003 matt
- High color locus stability thanks to microcontroller-controlled LED management
- Temperature compensation
- Factory calibration
- Soft light mixture and even light distribution
- Direct and indirect control / automatic dimming protection function
- Direct 230 VAC connection
- Pendant mounting
Ordering data for VIBE:
The luminaire is available separately and differs in its control (DALI or NeoLink / ZigBee or Casambi). There is also a complete package including control and accessories. That means that in this package the wireless rotary control K-ZWALLY is included. In interaction with the luminaire, the controller covers a wide range of functional options. The luminaire in the package is controlled via NeoLink / ZigBee.
|light source||LED module (PI-LED)|
|Operating voltage||230 VAC|
|luminous flux||3800 lm|
|Color temperature||1800 K - 16000 K|
|Color rendering index (CRI)||& gt; 90|
|Control||NeoLink / ZigBee |
|Dimming range||CCT / CIE-xy 5-100% |
|Degree of protection||IP20|
|Lifetime||L80 / B10 50000 h|
|Dimensions||810 x 510 x 390 (L * W * H)|
The products of the manufacturer Kiteo are individually tailored to suit your needs. Made especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.
For more information, please refer to the data sheet in the download tab.
|·Dimmable/Control:||Casambi radio, DALI, DALI DT8, Zigbee|
|·Color Temperature/Color:||2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White|
|·Lamp shape:||Pendelum Suspension|
|·Application/IP-Code:||IP20 - IP44 (Indoor)|
