Bright panel light K-AERA FLAT 50W - DALI DT8 or NeoLink / ZigBee or CASAMBI dimmable The use... more

Bright panel light K-AERA FLAT 50W - DALI DT8 or NeoLink / ZigBee or CASAMBI dimmable

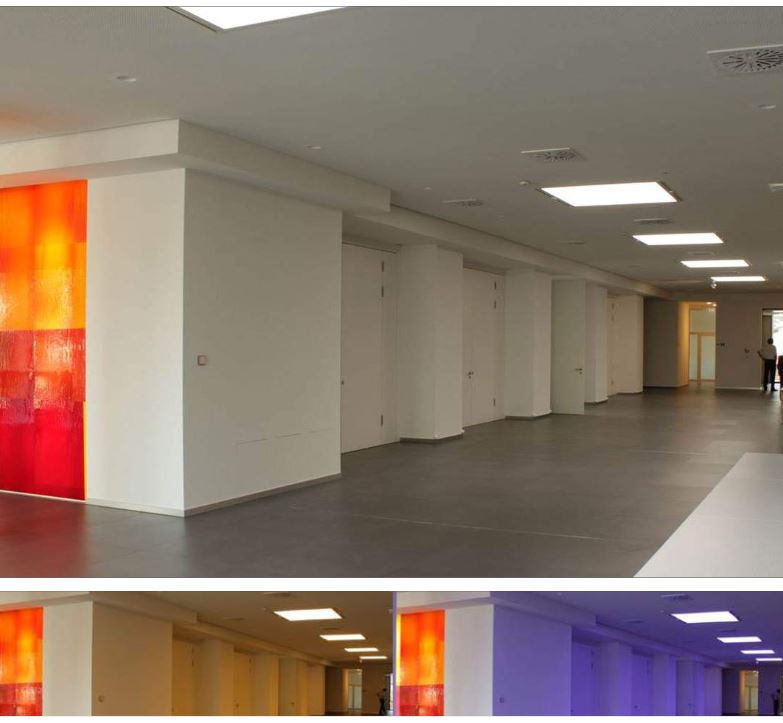

The use of PI-LED Edge Light modules gives this LED panel light its very flat design. By realistically reproducing the course of daylight, it follows the guiding principle "Brings the sun into the room" and is ideally suited for large indoor lighting. In particular, K-AERA FLAT offers optimal conditions for VDU workstations. A high colour location stability as well as uniform light distribution and mixing make a significant contribution to this. In addition, there is a reduced-glare microprismatic optic.
Depending on the control (NeoLink / ZigBee or DALI DT8 or CASAMBI) and design, the LED light is available in different versions.

Another highlight are the innovative control options of the K-AERA FLAT:

  • Smart lighting control with NeoLink / ZigBee
  • Control of complex lighting systems with DALI DT8

Product overview and features of the K-AERA FLAT:

  • Ideal indoor use as wide area lighting
  • Very flat design
  • Improved concentration and increase in performance at the workplace due to the simulated circadian daylight sequence
  • Functionality: Colour temperature 1,800 K to 16,000 K
  • High colour stability from micro-controller controlled LED management with temperature compensation and factory calibration
  • Uniform light distribution and mixing through edge lighting
  • Optimal conditions for the displays of work stations UGR<19
  • Operating temperature monitoring with automatic dimming function
  • Direct 230V mains connection

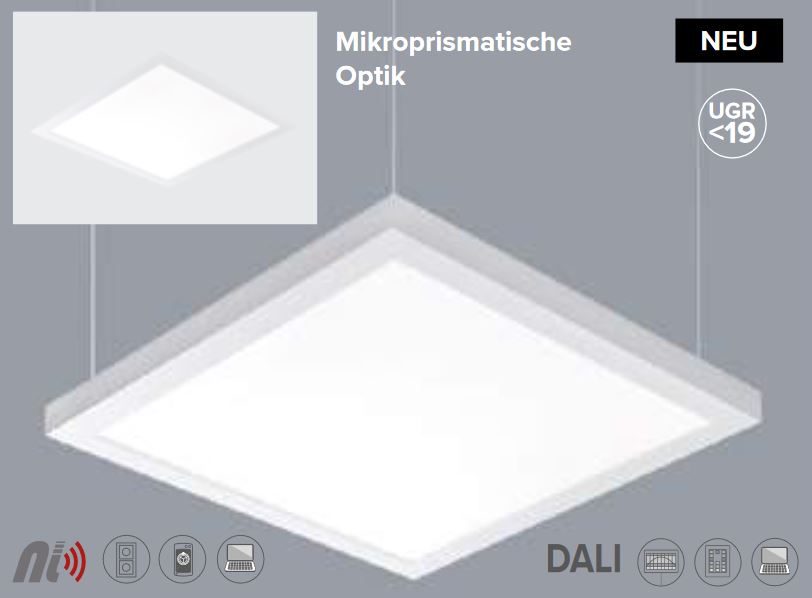

K-AERA FLAT Product features over view

Installation instructions:

  • Size according to the common grid dimensions

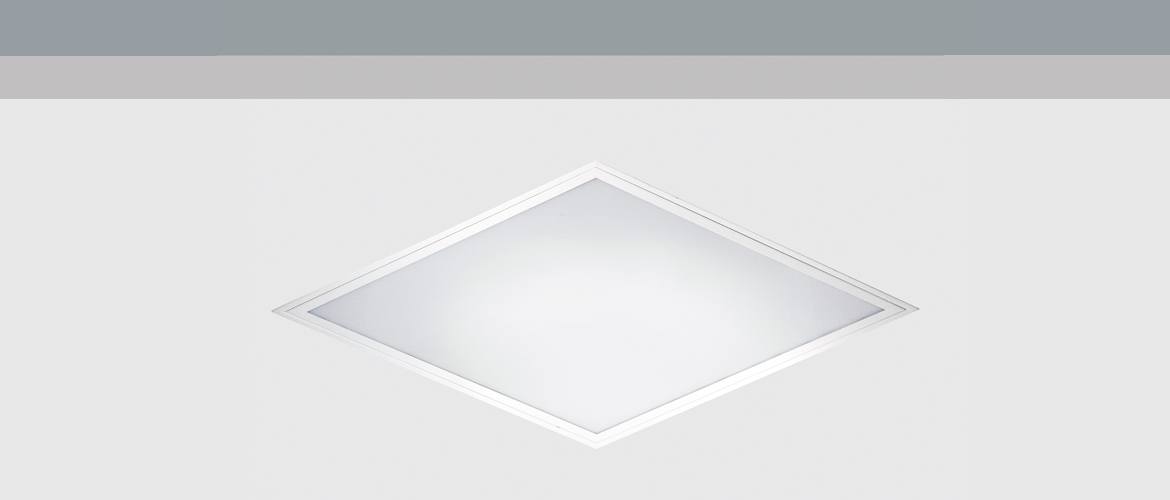

  • Depending on the installation, the K-AREA FLAT can be used flexibly as a recessed, surface-mounted or pendant luminaire.

Technical data:

Luminous source LED-Modul (PI-LED)
Operating voltage 230 VAC
Power 50 W (@ 4000K)
Luminous flux 4100 lm (@ 4000K)
Colour temperature 1800 K - 16000 K
Colour rendering index (CRI) 90 (@ 4000K)
Control NeoLink / ZigBee
Dimming range CCT/CIE-xy 5-100% / RGB 0-100%
Edge length 595 mm 620 mm 595mm 620 mm
Protection type IP20
Protectopn class SKI
Service lifetime L80/B10 50000 h

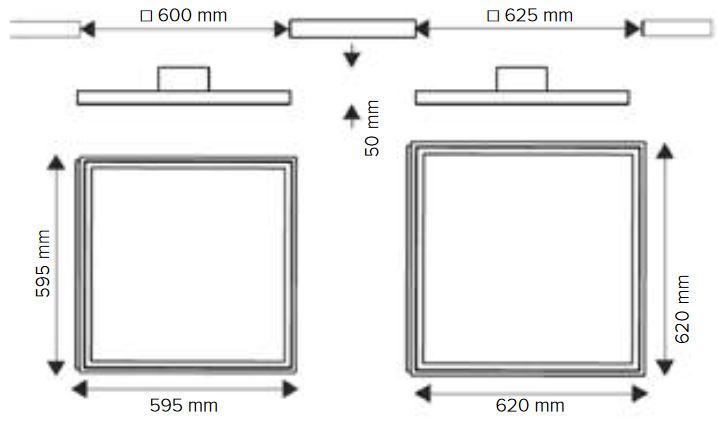

Dimensions 595 x 595 x 50 mm (L * W * H)
620 x 620 x 50 mm (L * W * H)

The products of the manufacturer Kiteo are individually manufactured especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For further information please refer to the data sheet in the Download tab.

Related links to "K-AERA FLAT Luminaire 50W ZigBee/DALI DT8/CASAMBI"
LED surface luminaire for 1800-16000K, PI-LEDs, controllable via ZigBee or DALI DT8, extensive... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
·Dimmable/Control: Casambi radio, DALI, DALI DT8, Zigbee
·Color Temperature/Color: 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White
·Lamp shape: Ceiling/wall mounting, LED Grid Inlay, Pendelum Suspension
·Application/IP-Code: IP20 - IP44 (Indoor)
Data sheet K-AERA FLAT
Eulumdat (Zip) all K-Aera Flat
Read, write and discuss reviews... more
Customer evaluation for "K-AERA FLAT Luminaire 50W ZigBee/DALI DT8/CASAMBI"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

K-SPOT FLAT product picture K-SPOT FLAT 14W DALI DT8 / ZigBee
Content 1
Variants from 284.41€ *
Order number: KSPOT-NL-W

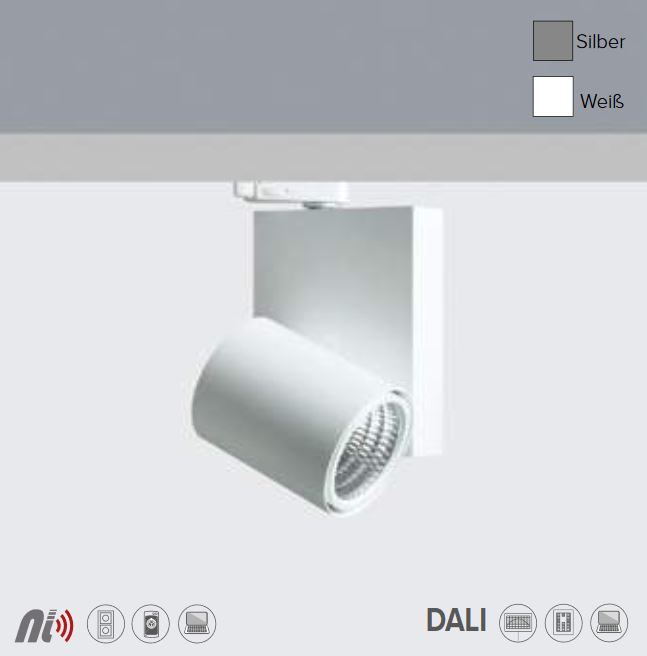

K-Forum product picture LED Track light K-FORUM 34W ZigBee/DALI DT8
Content 1
Variants from 581.91€ *
Order number: KFO-40-NL-W
K_MOTUS product picture K-MOTUS-DALI/ZigBee/Casambi dimming built-in...
Content 1
Variants from 332.01€ *
Order number: KMO-R-NL-W
Surface mounted luminaire 35W with ZigBee dimming Surface mounted luminaire 35W with ZigBee dimming
Content 1
Variants from 510.51€ *
Order number: SOCAMP-L-W
Pendant luminaire 72W DALI/Zigbee dimming Pendant luminaire 72W DALI/Zigbee dimming
Content 1
Variants from 2,403.56€ *
Order number: VIBE-L-NL

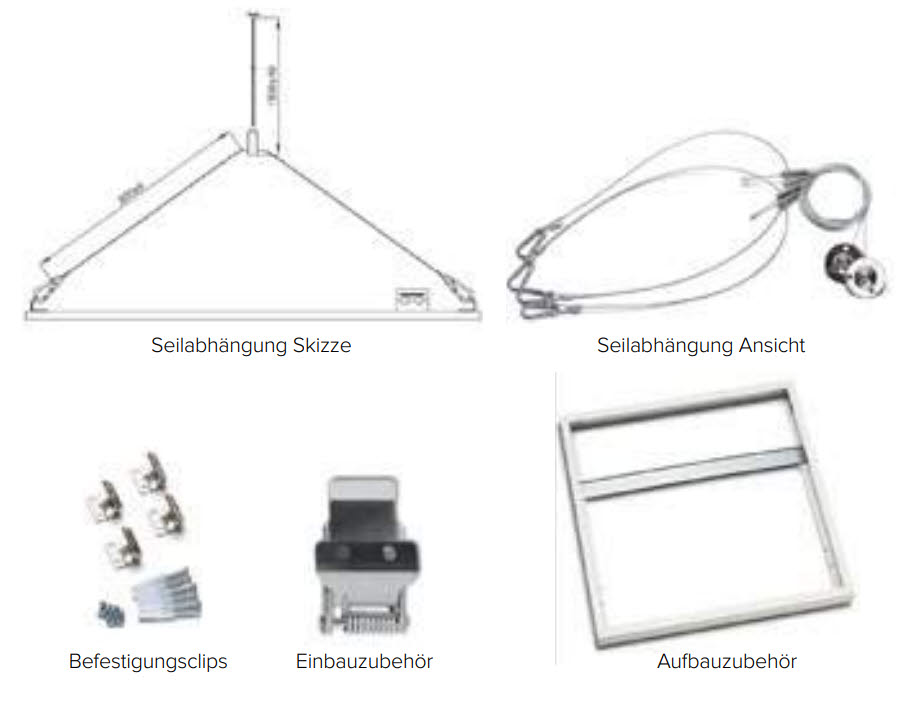

Equipment for K-AERA-Flat Equipment for K-AERA-Flat
