LED Track light K-FORUM 34W ZigBee/DALI DT8

Variants from 498.61€ *
Net price: 419.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Surface:

Radiation angle:

Control:


Stück

  • K-FO-NL-25-W
  • K-FO-25-NZ-W
  • 1.6 kg
  • KITEO GmbH
LED Track light 34W with three different beam angles - DALI DT8 / ZigBee dimmable K-FORUM is... more

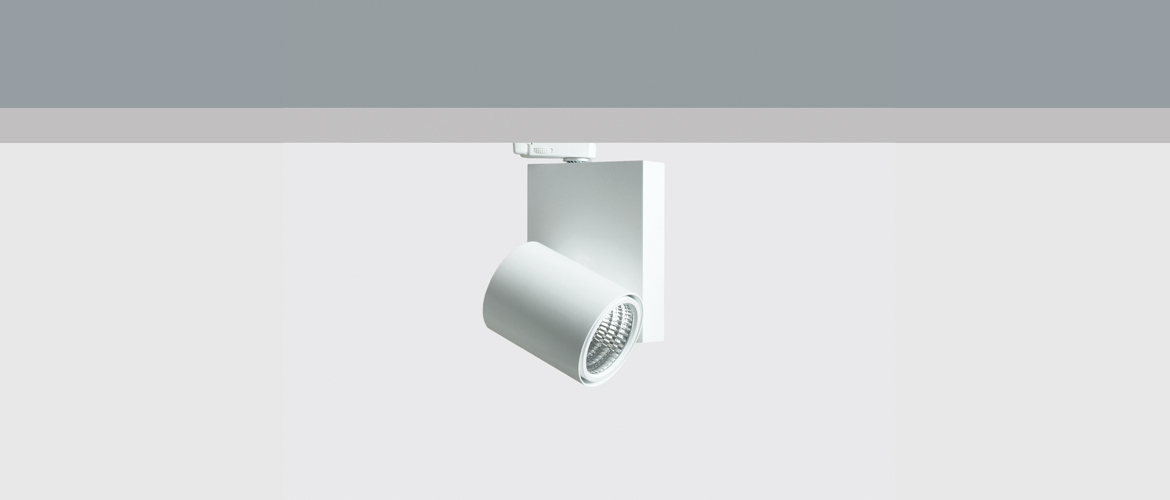

LED Track light 34W with three different beam angles - DALI DT8 / ZigBee dimmable

K-FORUM is a high-quality track spotlight that can be used in a wide variety of LED lighting systems thanks to its simple, timeless design. To set the scene perfectly, the spotlight provides a clear ceiling image despite different lighting tasks. Its flexibility is supported by three different beam angles (25 °, 40 °, 60 ° reflectors). In addition there are extensive turning and swiveling ranges. K-FORUM has a highly transparent protective glass and, with its even light distribution, represents a complete and universally usable LED spotlight.

Another highlight are the innovative control options of the K-FORUM:

  • Smart lighting control with NeoLink / ZigBee
  • Control of complex lighting systems with DALI DT8

Product overview and features:

  • Sleek design and clear silhouettes
  • Three different beam angles
  • Slewing range 355°, swivel range 180°
  • Clear ceiling design despite different lighting tasks
  • Functionality: Colour temperature 1,800 K to 16,000 K
  • High colour stability from micro-controller controlled LED management with temperature compensation and factory calibration
  • Soft light mixing and uniform light distribution
  • Highly permeable safety glass
  • Passive cooling including thermal management
  • Mounting: Bus bar

K-FORUM Product features overview

Ordering data for K-FORUM:

The product is available in different versions depending on the control, beam angle and surface (white or silver). All track spotlights have integrated PI LEDs.

Article number Categorization of the luminaire
K-FO-25-NZ-W Spotlight / NeoLink, ZigBee / beam angle 25° / white
K-FO-25-NZ-S Spotlight / NeoLink, ZigBee / beam angle 25° / silver
K-FO-40-NZ-W Spotlight / NeoLink, ZigBee / beam angle 40° / white
K-FO-40-NZ-S Spotlight / NeoLink, ZigBee / beam angle 40° / silver
K-FO-60-NZ-W Spotlight / NeoLink, ZigBee / beam angle 60° / white
K-FO-60-NZ-S Spotlight / NeoLink, ZigBee / beam angle 60° / silver
K-FO-25-DA-W Spotlight / DALI DT8 / beam angle 25° / white
K-FO-25-DA-S Spotlight / DALI DT8 / beam angle 25° / silver
K-FO-40-DA-W Spotlight / DALI DT8 / beam angle 40° / white
K-FO-40-DA-S Spotlight / DALI DT8 / beam angle 40° / silver
K-FO-60-DA-W Spotlight / DALI DT8 / beam angle 60° / white
K-FO-60-DA-S Spotlight / DALI DT8 / beam angle 60° / silver

Technical data for K-FO-xx-yy-z:

Luminous source LED-Modul (PI-LED)
Operating voltage 230 VAC
Power 34 W
Beam angle 25° 40° 60°
Luminous flux 2620 lm 2580 lm 2610 lm
Colour temperature 1800 K - 16000 K
Colour rendering index (CRI) 90
Control NeoLink / ZigBee
DALI DT8
Dimming range CCT/CIE-xy 5-100%
RGB 0-100%
Protection type IP20
Protection class SKI
Service lifetime L80/B10 50000 h
Bus bar NeoLink: GLOBAL GA 69
DALI DT8: EUTRAC MultiAdapterPlus

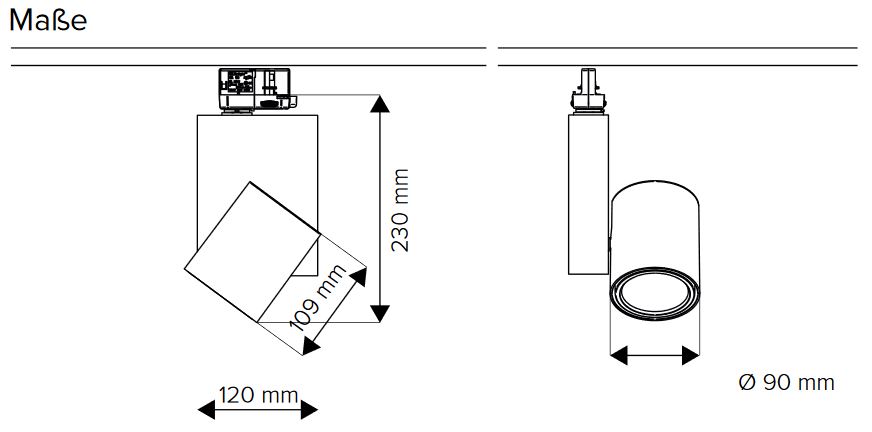

Dimensions Ø 90 / 120 x 230 mm

Note:
The products of the manufacturer Kiteo are individually manufactured especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For further information please refer to the data sheet in the Download tab.

Related links to "LED Track light K-FORUM 34W ZigBee/DALI DT8"
LED spotlight K-FORUM 34W with 3 different radiation anlges 25°-60°, DALI DT8 or ZigBee/NeoLink... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Lamp shape: Power rail
Dimmable/Control: DALI, DALI DT8, Zigbee
Color Temperature/Color: 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White
Data sheet K-FORUM
Eulumdat (Zip) all K-Forum
