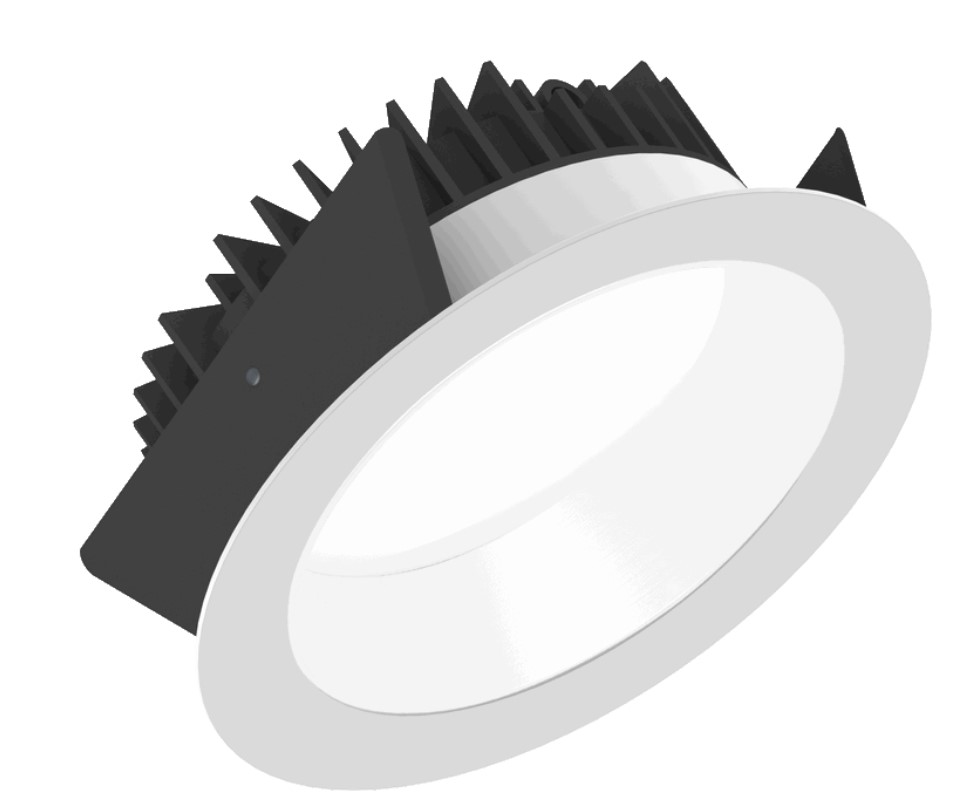

Illuxtron Strada 185
These Illuxtron LED downlights are available in 3000K and 4000K. Different housing colors and with different power are selectable. Suitable for a hole diameter of 185mm for soft ceiling tiles and 185-205mm for hard ceiling tiles.
The Strada series features a more robust appearance and is easy to install. In addition, it is a lighting solution that brings to life light ideal for restaurants, hospitality and residential.
Compact, technologically innovative and economical.
The main technical details of the Strada 185 downlights:

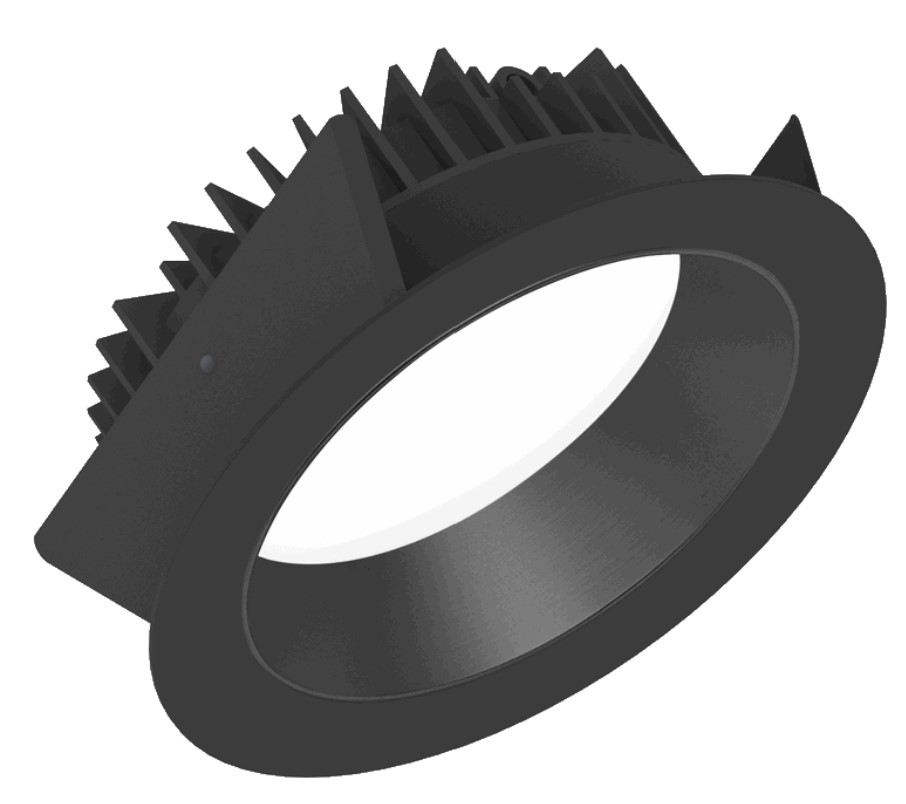

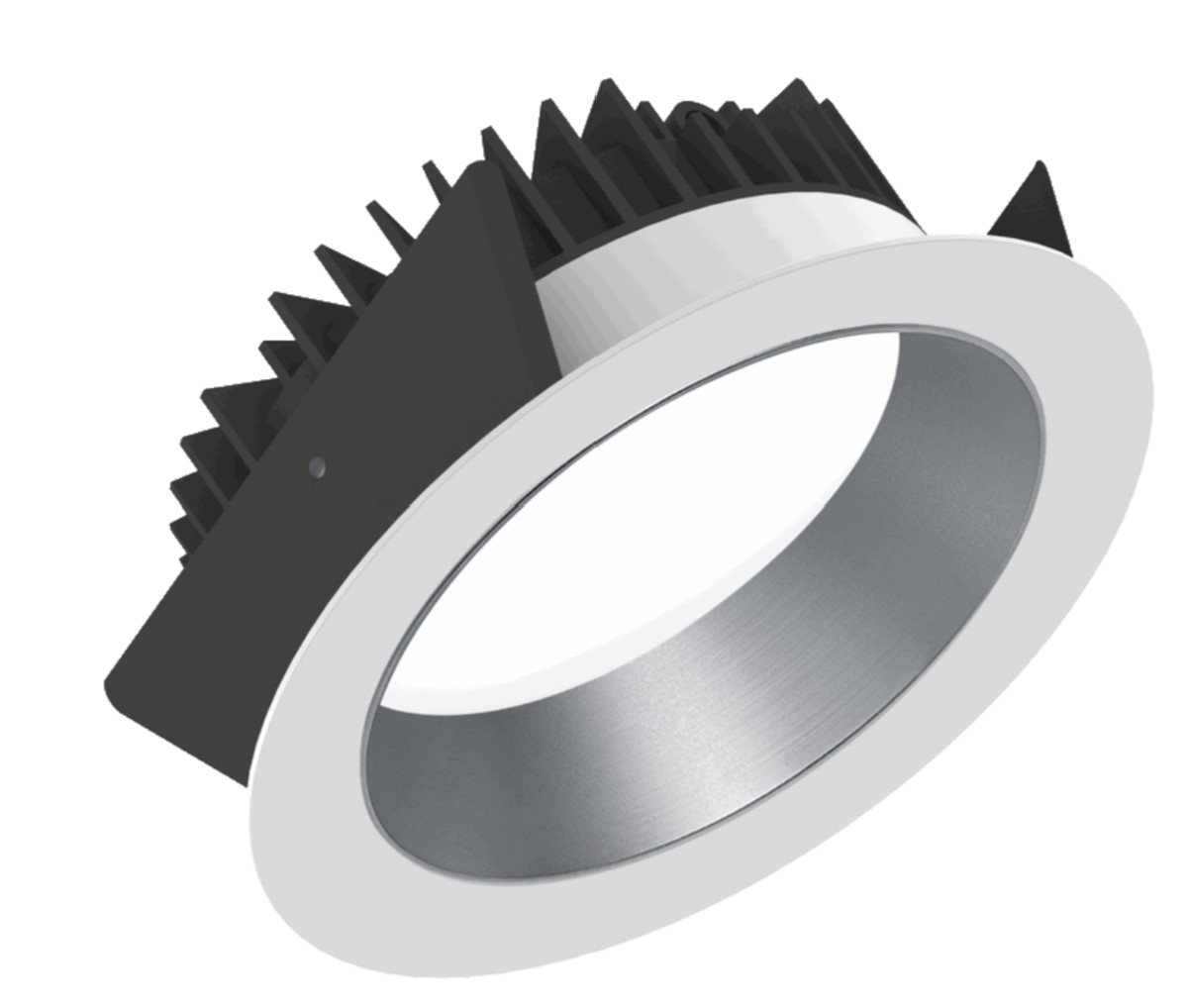

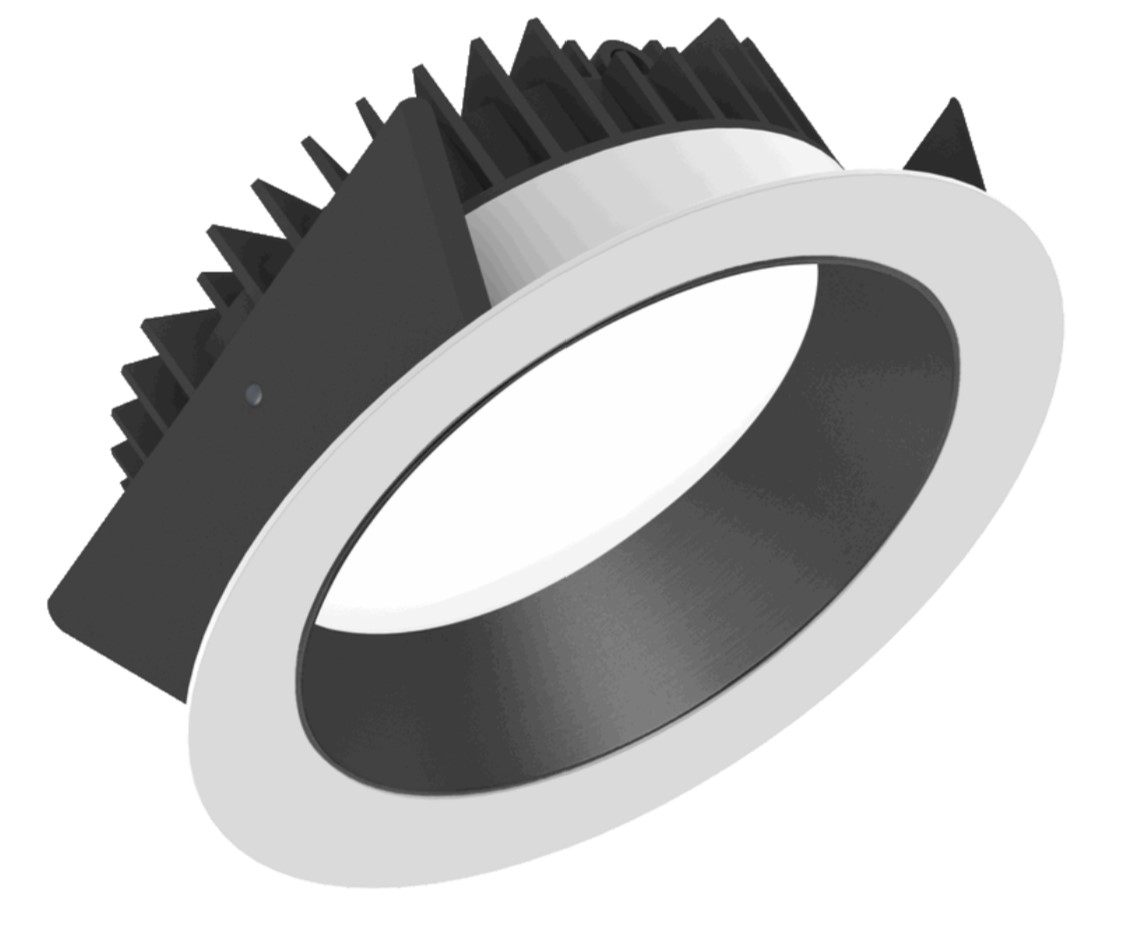

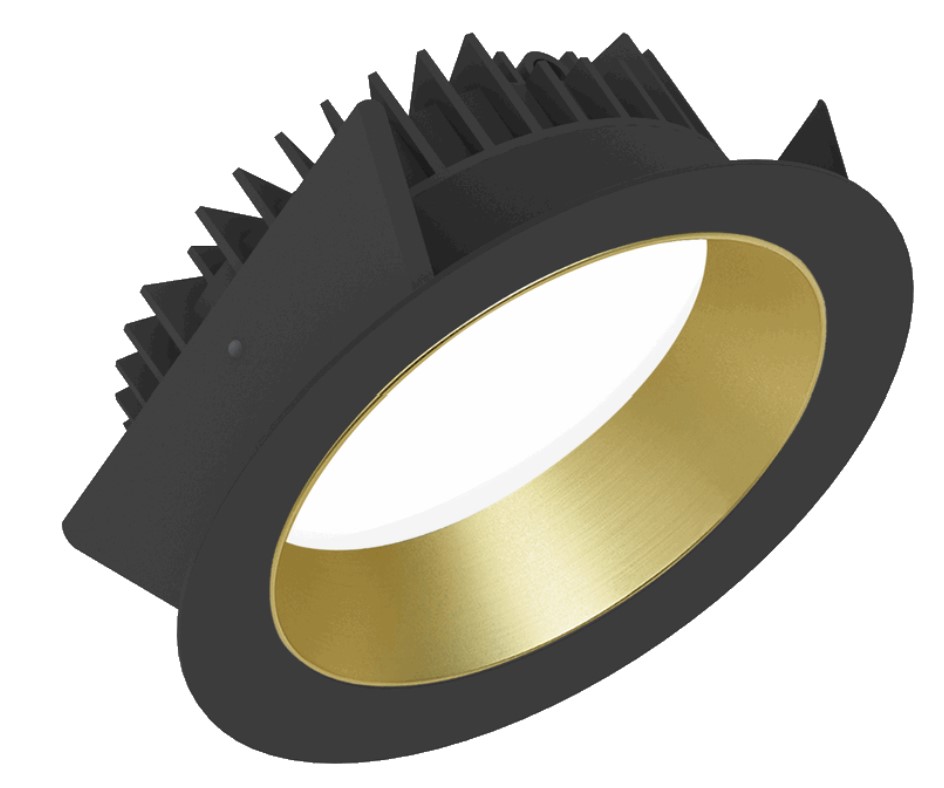

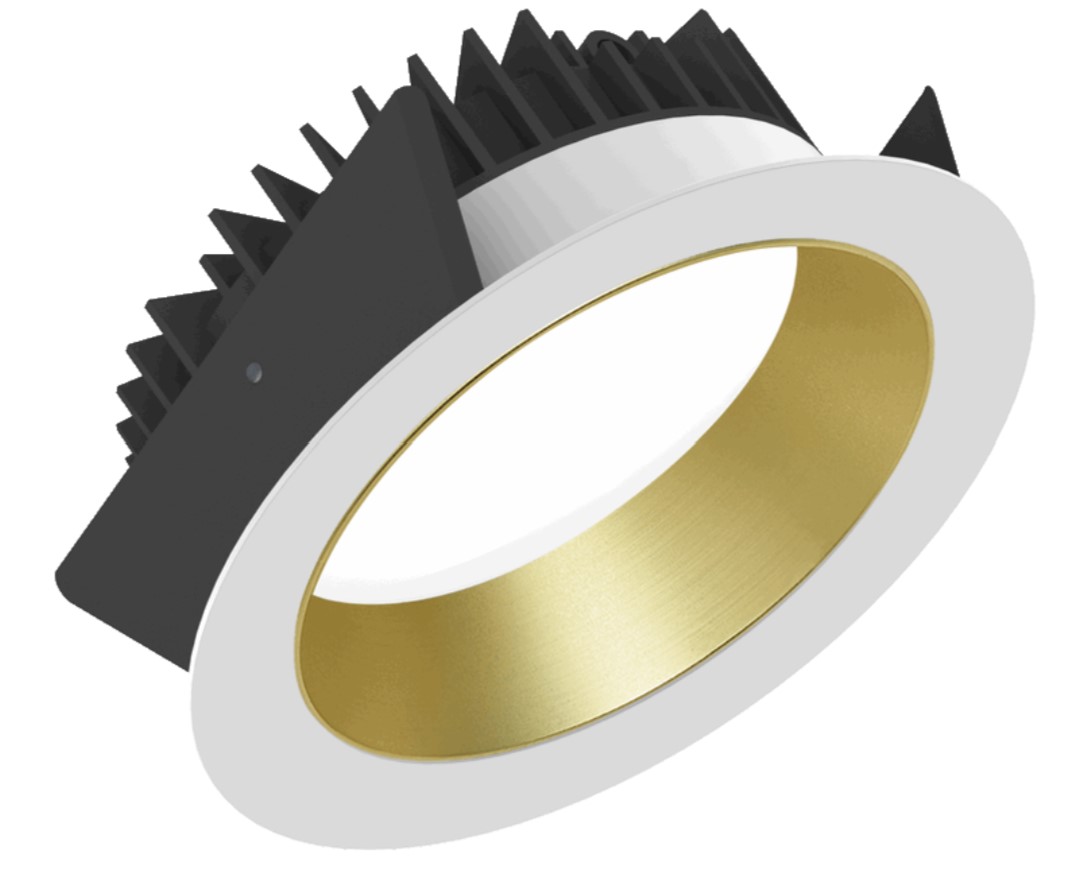

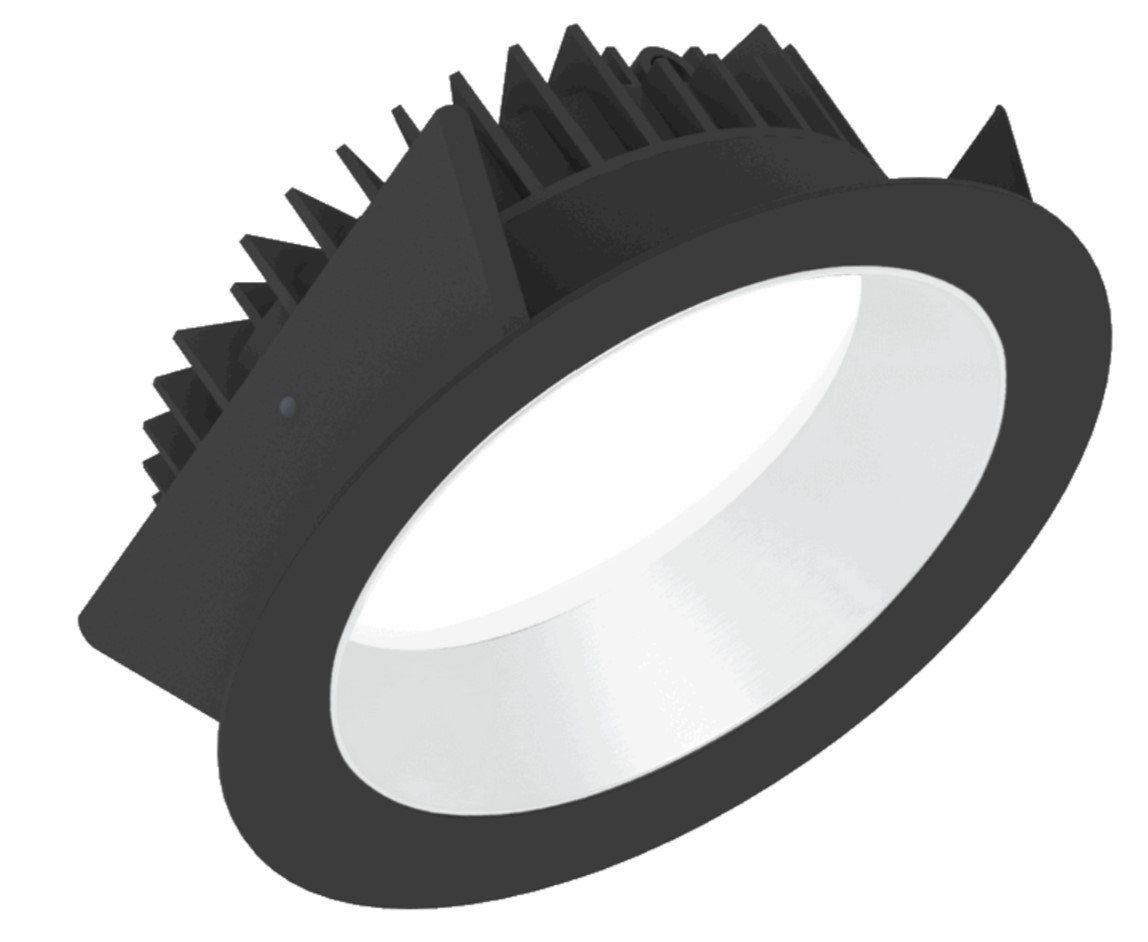

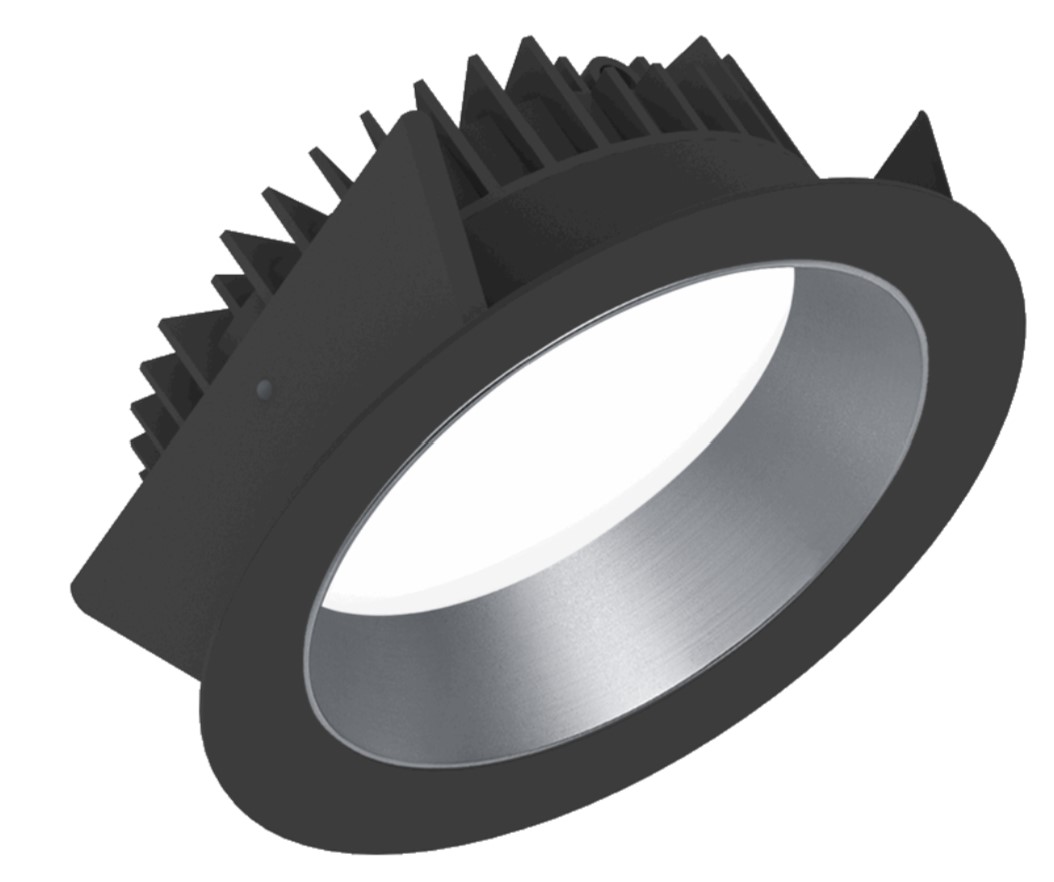

Case color | matte whiteRAL9016 / gold (XX=61) matte whiteRAL9016 / silver (XX=63) matte white RAL9016 / white (XX=65) matte whiteRAL9016 / black (XX=62) matte black RAL9005 / gold (XX=71) matte black RAL9005 / silver (XX=74) matte black RAL9005 / white (XX=76) matte black RAL9005 / black (XX=72) |
Material | Housing: Die-cast aluminum Reflector glass: Polycarbonate |

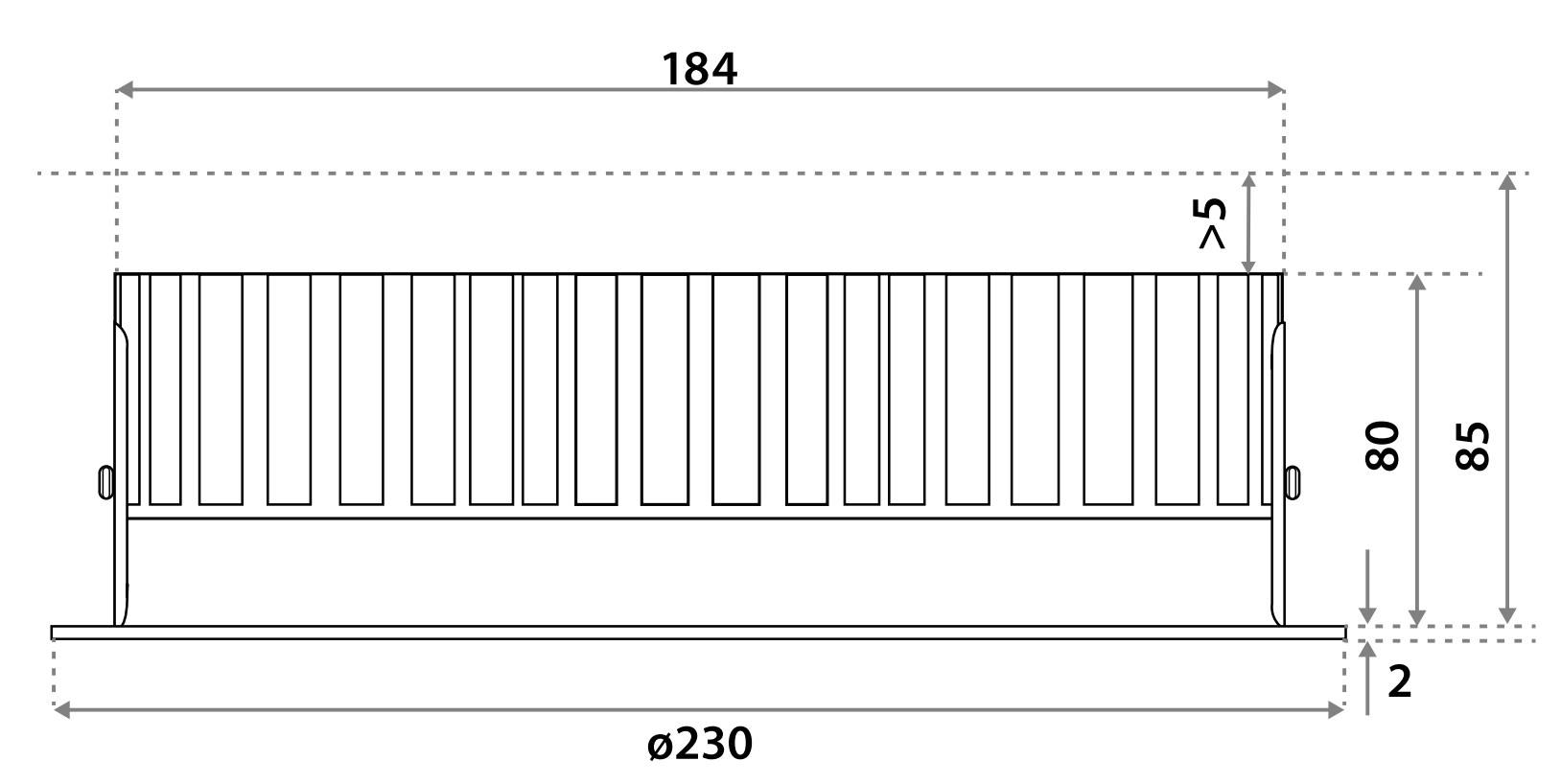

Dimensions | 230x82mm |
Hole diameter | 185 mm |
Required installation depth | > 85 mm |
Use | Interior |
Flight Angle (FWHM) | 80° |
UGR | 24. 2 - 27. 1 |
Color Consistency (MacAdam) | SDCM3 |
IP Code | IP20 / IP44 |
IK Code | IK03 |
Operating Temperature (Ta) | -20°C / +45° C |
Safety Marks | EN60598 / EN62031 / EN62471 |
EMC Directive | EN55015 |
Warranty | 7 years |
Energy class | A+ |
Article numbers Strada 185
Color temperature / CRI | |||
Power | 3000K / 80 | 4000K / 80 | 3000K / 97 |
27W/700mA | 821C03XXYR02 | 821C03XXY02 | - |
32W/800mA | - | - | 821C03XXYQ02 |
50W/1200mA | 821C03XXYT02 | 821C03XXYZ02 | - |
57W/1400mA | - | - | 821C03XXYS02 |
Please note that the table contains data for the switchable version only. The Strada 185 downlights can also be selected with 1-10V push or DALI.
For more information on Strada 185 downlights, please refer to the data sheet.
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
