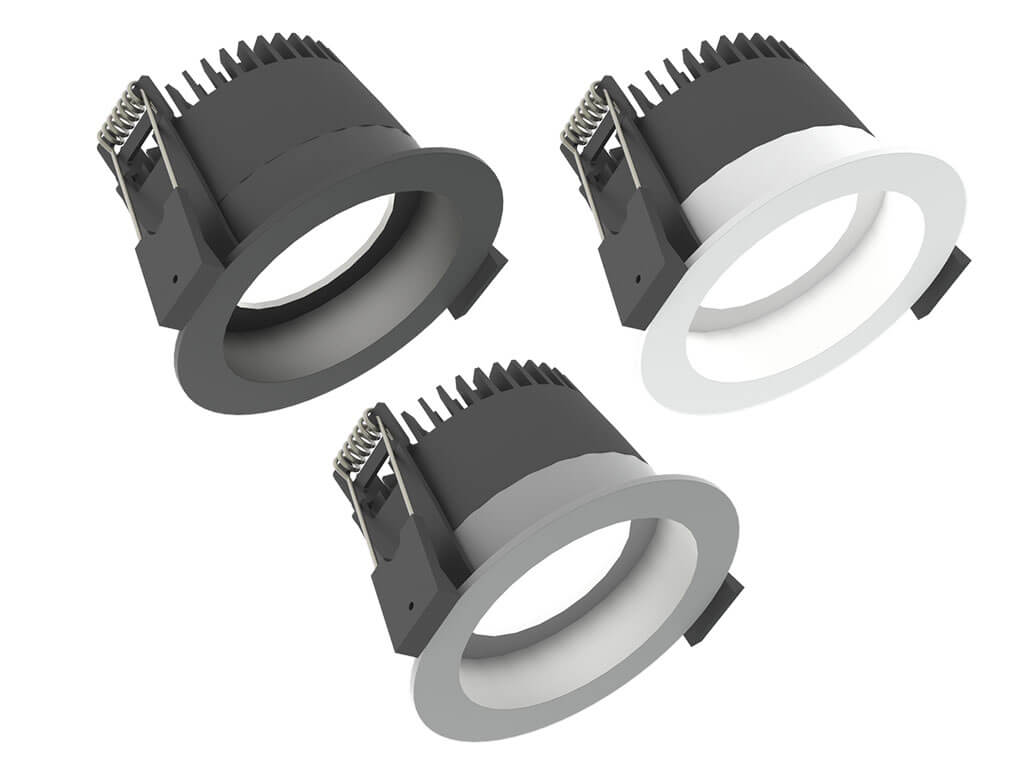

Illuxtron Strada 75 LV-TW (Tuneable White) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
|Version||Power range ||Beam angle ||Special feature|
|HV-FD (High voltage- Flimmerfree Dimmtechnology)||10,1-10,5 W||40° / 80°||directly connectable to 220-240V|
|LV (Low Voltage)||5,0 - 13,8 W||24° / 60° / 80°||CRI-97 standard, driver included|
|LV-TW (Low Voltage - Tuneable White) This Version||11,4 W||60° / 80°||Tuneable White Technology|
These recessed spotlights are available in 2700 - 6500K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Strada 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good color rendering
Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.
This downlight is also available in HV and LV downlight versions.
The most important technical details of the Strada 75 series:
|Housing colour / reflector ring||matt white RAL9016 / Gold (XX=61) |
matt white RAL9016 / Silver (XX=63)
matt white RAL9016 / White (XX=64)
matt white RAL9016 / Black (XX=62)
matt black RAL9005 / Gold (XX=71)
matt black RAL9005 / Silver (XX=74)
matt black RAL9005 / White (XX=75)
matt black RAL9005 / Black (XX=72)
|Material||Housing: Die-cast aluminium |
Reflector glass: Polycarbonate
|Dimensions||ø 81 mm|
|Required installation depth||> 65 mm|
|Ceiling cut-out|| |
75 mm: Use of concrete springs.
|Colour Consistency (MacAdam)||SDCM3|
|IP Code||IP20 / IP44|
|Operating temperature (Ta)||-20°C / +45°C|
|Life time||at 25°C|
|L70B50||> 70.000 h|
|L80B50||> 70.000 h|
|L90B50||> 37.000 h|
|Safety signs||EN60598 / EN62031 / EN62471|
Strada 75 Low Voltage –Tuneable White Technologie (TW)
Human Centric Lightning (HCL) high-end lighting design solution
The natural light changes its colour during the course of the day from the morning glow of the sunrise to the bright midday sun, to a deep, warm sunset. We have the technology to adjust the colour temperature of the artificial light in our homes.
The human biological clock is closely linked to the day-night cycle of the earth's circadian rhythm and is central to the release of various hormones, such as melatonin, which regulates sleep, and cortisol, which is necessary for healing. We know that light has a significant impact on the human biological clock and our health.
As much as technology can help us, it can also throw our natural biological clock out of balance. We get too little of the right type of light during the day and too much of the wrong type at night. Televisions, LED lights, computer screens and mobile devices that emit blue (cold) light can disrupt our biological clock and shift our natural sleep rhythm.
An HCL (Human Centric Lighting System) can also change artificial light. If we need to be more concentrated or attentive, we can adjust the colour temperature to a cool light. If we want to relax or create a more relaxing environment, we can adjust the colour temperature to provide warmer light.
Lighting and control technologies have achieved a high degree of user-friendliness. Through careful consideration and expert advice, light can be more organic and can be better integrated into this intelligent home technology to provide greater comfort.
For further information on Strada 75 LV-TW downlights please refer to the respective data sheet.
Strada 75 LV-TW
|Colour temperature||2700 -6500 K|
|Luminous flux||1250 lm|
|Lm/W (with EVG)||110|
*Note: This table shows only the version with 60° radiation angle. This downlight is also available with a beam angle of 80°.
For data sheets of the Strada 75 series downlights, see download tab:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
|·Dimmable/Control:||Casambi radio, DALI, DALI DT8|
|·Color Temperature/Color:||Tuneable White|
|·Lamp shape:||Recessed ceiling|
|·Application/IP-Code:||IP20 - IP44 (Indoor)|
