TCI Professionale 34

32.96€ *
Net price: 27.70€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

TCI Professionale 34 (#127480 / #127482) TCI PROFESSIONALE  is the new generation of... more

TCI Professionale 34 (#127480 / #127482)

TCI PROFESSIONALE  is the new generation of LED drivers by manufacturer TCI.
These are characterized by:
  • Elongated, small design
  • Emergency power
  • Very small ripple, less than 3%
  • 10 different current levels adjustable via dip-switch (from 250mA - up to 700mA)
  • High performance and very good efficiency (> 90%)
  • Opposite input and output terminals
  • Available in IP20 housing or as built-in version
  • Protection against overheating, voltage peaks and overload
  • High t c of 70(75)°C
  • Active Power Factor Correction (PF = 0.95)
  • Large voltage range (for approx. 4 - 15 LEDs)
Thus, this driver series is the right choice for many LED applications up to 34W (current dependent)


TCI Professionale 34 (127480)

  • IP20 housing
  • 129.5 x 42 x 30mm (L x W x H)
  • Protection class I
  • Independent driver for interior
  • Strain relief on primary and secondary circuits for cables with a diameter of 2-9mm

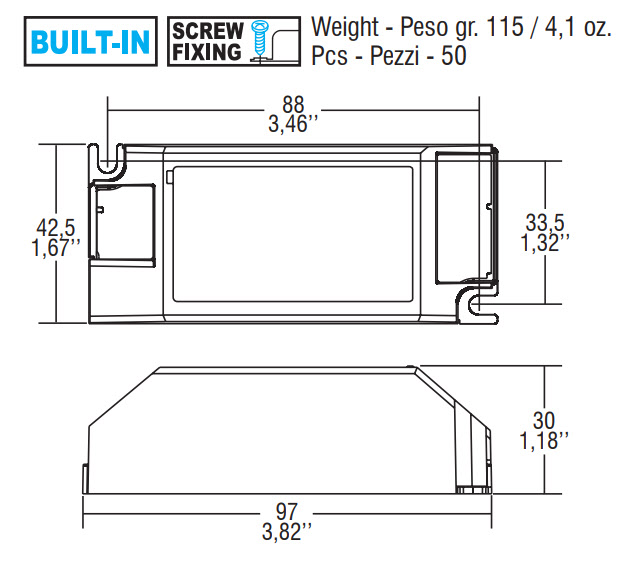

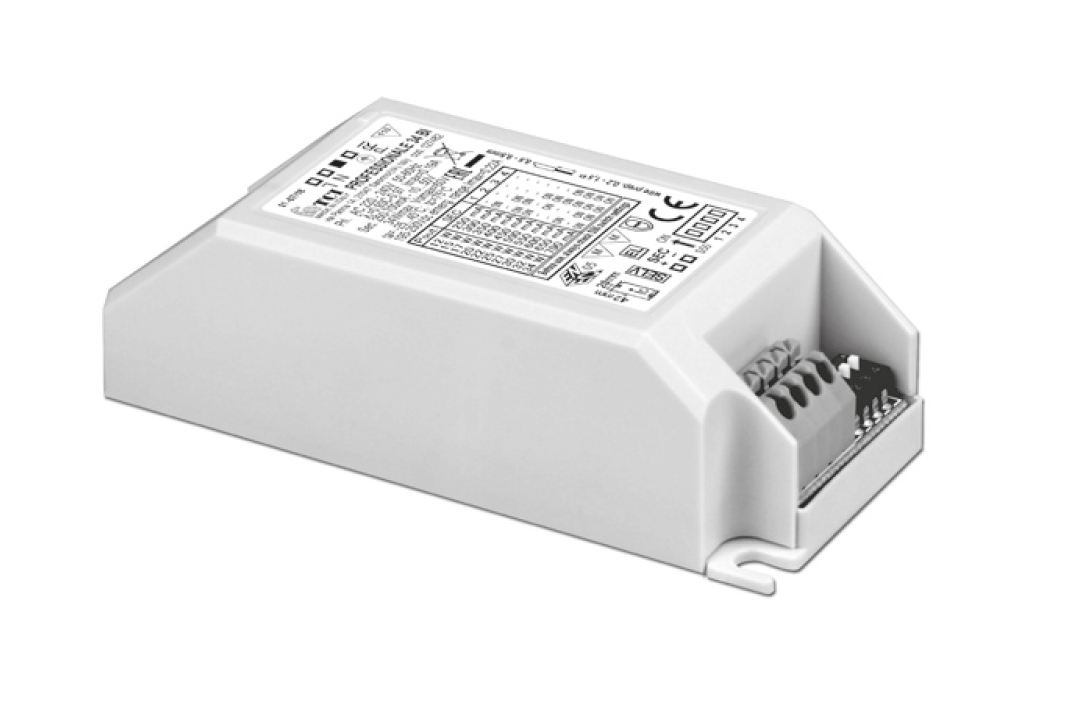

TCI Professionale 34 BI (127482)

  • Built-in version (open terminal block)
  • 97 x 42,5 x 30mm (L x W x H)
  • Suitable for lighting equipment/ luminaires. Protection class I
Ripple freeconstant currentTCI Professionale 34 SELV

Dip-SW

Power Spg. sec Current sec
Position 1 12 W 20..50V 250mA const.
Position 2 15 W 15..50V 300mA const.
Position 3 17 W 15..50V 350mA const.
Position 4 20 W 15..50V 400mA const.
Position 5 22 W 15..50V 450mA const.
Position 6 25 W 10..50V 500mA const.
Position 7 27 W 10..50V 550mA const.
Position 8 30 W 10..50V 600mA const.
Position 9 32 W 10..49V 650mA const.
Position 10 34 W 10..48V 700mA const.
LED driver functions
For further details for the products TCI 127480 or TCI 127482 please see the manufacturer data sheet (download tab)
Related links to "TCI Professionale 34"
Affordable multipower driver with 34W power at currents from 250mA to 700mA. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Current: 0,25A, 0,3A, 0,35A, 0,4A, 0,45A, 0,5A, 0,55A, 0,6A, 0,65A, 0,7A
Power range: 5 - 20 W, 20 - 50 W
