Aviora FL 1195x295 with reflector microfacetted optics
Modern design with revolutionary optics
The special structure of the reflector microfacettes (Bartenbach development) of the Aviora generates a radiation of 85° FWHM (corresponds to 100° FWTM) without the generation of disturbing scattered light. Normally the beam angle of a luminaire is half the highest lux value of the light beam (Full Width at Half Maximum, FWHM).
This is usually accompanied by a lot of stray light outside the beam, which causes disturbing glare. For this reason, Illuxtron panels also work with beam sizes that are based on the height of the 10% lux value (half the half-width or "Full Width at Tenth Maximum", FWTM).
In other words, the LED panel directs the light exactly where you want it, onto the work surface and only slightly onto the walls with a pleasant transition. This makes it possible to meet the 500 lux requirement on the work surface of a 5 x 5 metre room with only 4 x 20 watts.
Features and benefits of the Illuxtron Aviora FL
|Casing color||matt white RAL 9016|
|reflector glass: polycarbonate|
|Beam angle (FWHM/FWTM)||Standard 85°/100°|
|UGR (4H8H 70/50/20)||< 19|
|Colour consistency (MacAdam)||SDCM3|
|Operating temperature (Ta)||-20°C / +45°C|
|Lifetime at||25° C|
|Safety sign||EN60598 / EN62031 / EN62471|
|Type||incl. LED driver|
|Input||220V - 240V/50Hz|
|Performance levels||26,6 - 56,0 W|
|Power factor /Pf||0,9 - 0,98|
|inrush current||5A 50µS||20A 400µS|

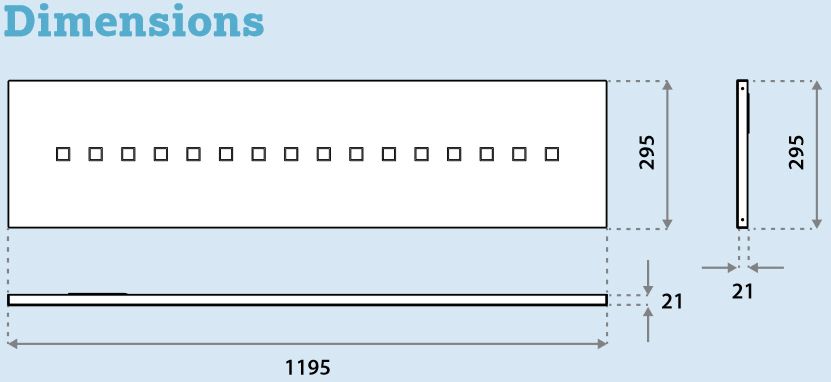

Aviora FL 1195x295
All Aviora LED Panels are available with either 2700-6500K, 3000K or 4000K, as well as different lumen packages or powers, as well as ballasts included in the set (dimmable via DALI, 1-10V&Push or switchable only)
Overview of available LED panels with part numbers.
|Luminous flux||4100 lm||5350 lm||4350 lm||5650 lm||3450 lm|
|Performance||37,3 W||56,0 W||37,3 W||56,0 W||26,6 W|
|Luminous efficacy (with ECG)||110 Lm/W||96 Lm/W||117 Lm/W||101 Lm/W||139 Lm/W|
|1-10V & Push||38DH03MWG202||38DJ03MWG202||38DH03MWG302||38DJ03MWG302||-|
For further information on the Aviora FL 1195x295, please refer to the data sheet in the download tab. There you will also find information on optionally available alternative power stages (26.6W; 29.3W and 47.5W)
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Lamp shape:||LED Grid Inlay|
|Dimmable/Control:||1..10V, Casambi radio, DALI, Push-Button|
|Color Temperature/Color:||3000K, 4000K|
