Versatile CASAMBI Interface - IP20, DALI controllable, for DIN-rails
Using this high-quality CASAMBI interface you are able to comfortably control selected smart applications with your mobile phone or tablet because of the module´s versatility. Therefore, the interface communicates with luminaires networks which can be controlled by the CASAMBI app. This includes automatic detection of new devices, lighting control and the creation of scenes and animations. In addition to that, intelligent timer and gallery funcitons aim to provide an even more flexible controlling. Especially, the interface refers to an application DIN-rails as well as relay and window shape control. Due to its protection level, the module is resistant against temperatures between -20°C and +45°C.
Product Overview (additional features):
- Interface to control:

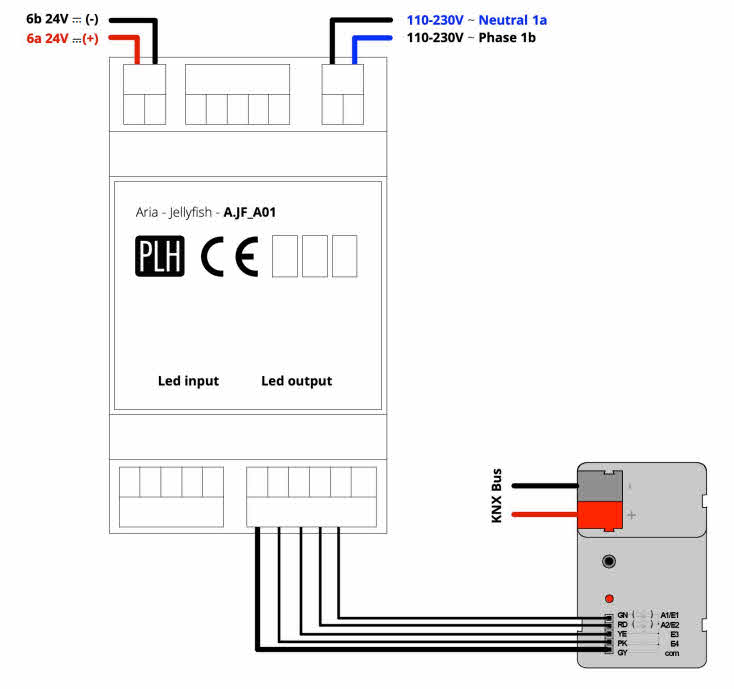

- Gira Bus 1119 00 Konnex,
- Philips LCU2070,
- Creston C2N-UNI8IO,
- Lutron QSE-CI-WCI,

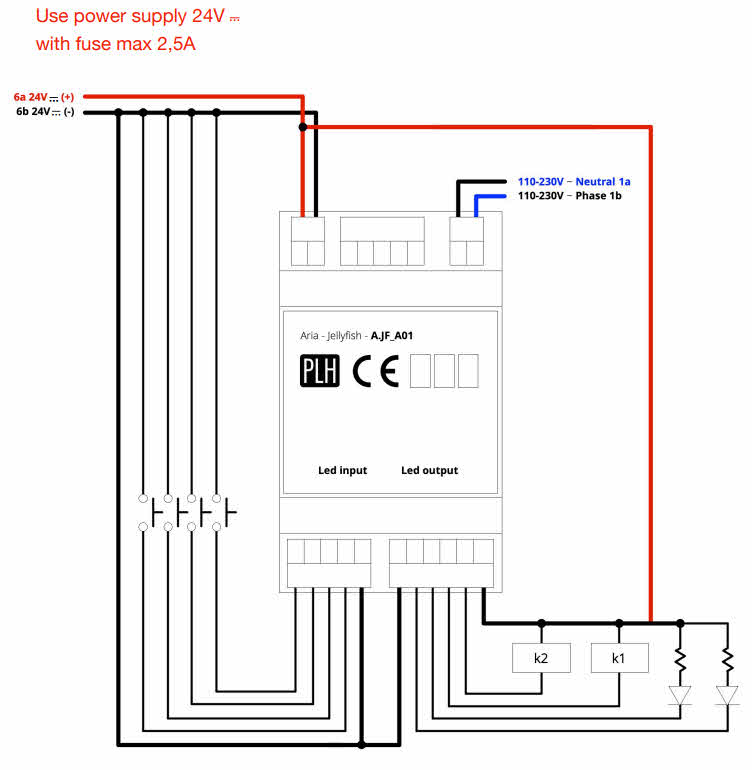

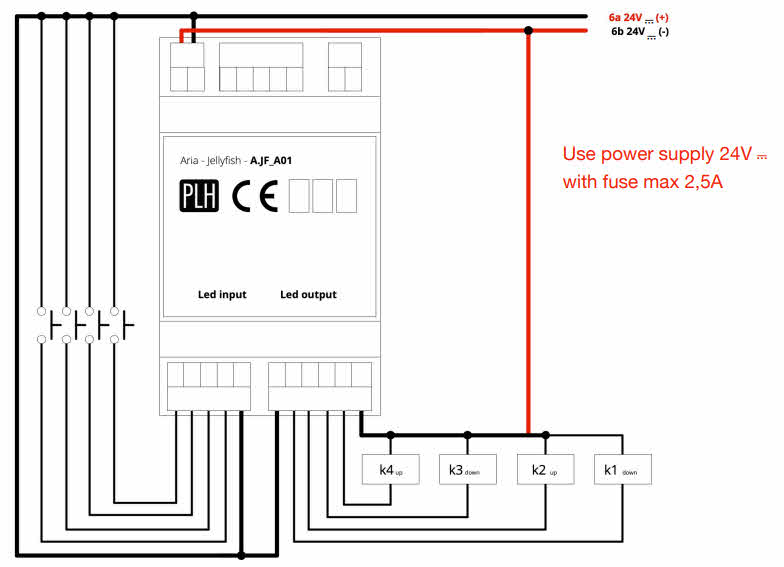

- Relay and window shape control,

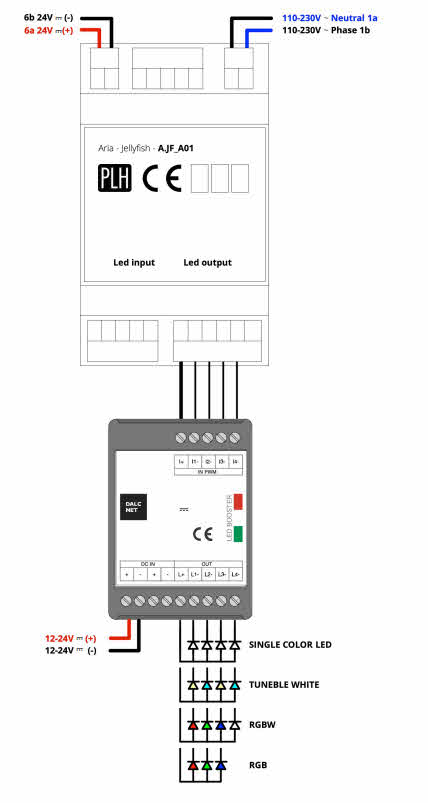

- single- and multichannel D-PWM ballast control.
- Free App from CASAMBI (Apple/Android):
- Lighting control (colour/dim level)
- Configuration of luminaires and luminaires networks
- Creation of scenes and animations (colour gradient)
- Automatic detection of new devices
- Intelligent timer and gallery function
- Protection settings of your luminaires network („just me“, „with password“,...)
- Especially for DIN-rail, when installed in control cabinets, reduced BT availability is expected.
A gateway is not necessary but there is the possibility for a setup anyway.

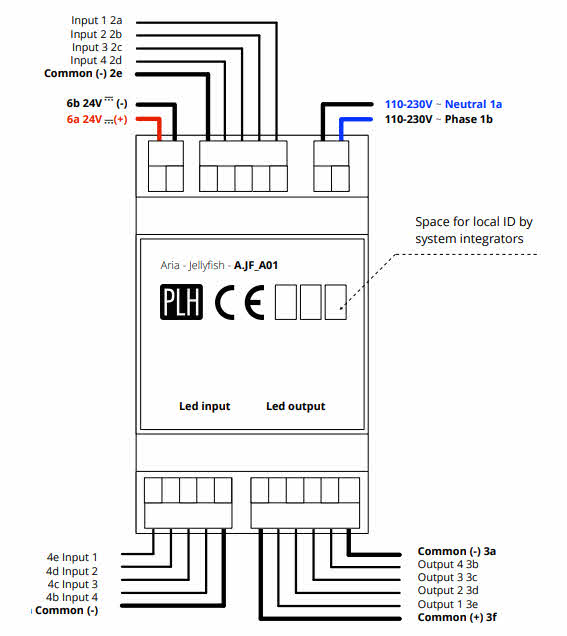

|Power supply input||100..240 Vac, 18..30 Vdc|
|Signal input||DALI, 4 Kanäle, BT 4.0 (2,4 GHz) lite @ smart devices|
|Signal output||4 channels 100mA and 30Vdc, controlling of the inductive load (with relays) is allowed|
|Max. output power||100 mA, 30 Vdc|
|Ambient temperature (ta)||-20..+45 °C|
|Rated max. temperature (tc)||65 °C|
|IP protection level||IP20|
The data sheet located in the download tab provides more helpful information.
|·Dimmable/Control:||BT4.0 (2,4 GHz), Casambi radio, PWM|
|·Application/IP-Code:||IP20 - IP44 (Indoor)|
|·Constant Voltage:||20V, 24V, 28V, 30V|
