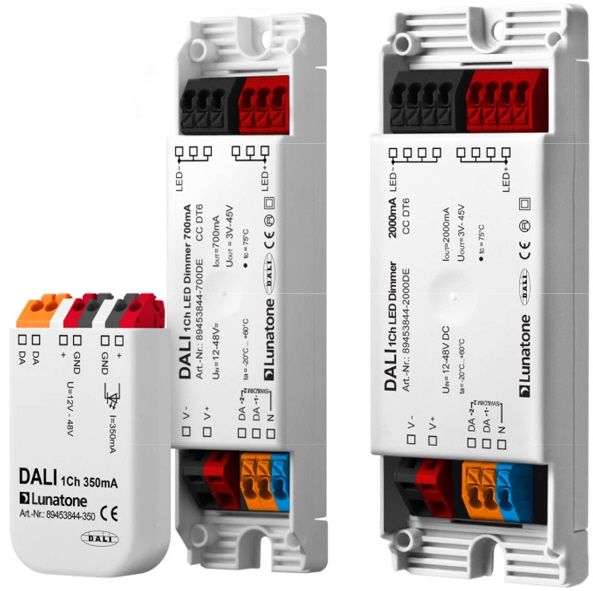

DALI ballast with 12V - 48V input for constant current
Original images, see data sheet or manufacturer’s website
€62.08*
net-price: €52.17 % €75.39* (17.65% saved)Just 2 pieces available
Available, delivery time: 1-3 days*
Product number: 1903-89453844-350
Manufacturer: Lunatone Industrielle Elektronik GmbH
Manufacturer product number: 89453844-350
Weight: 0.05 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "DALI ballast with 12V - 48V input for constant current"
DALI ballast for constant current at low voltage input voltage
Product specifications for 89453844
- Available for amperages 350mA and 700mA
- Supply voltage 12V to 48V DC

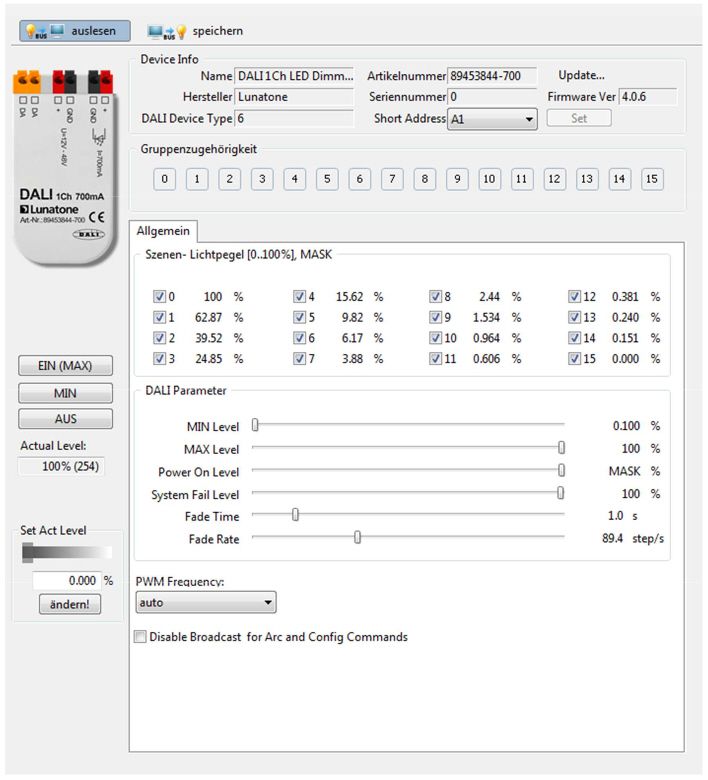

- Configuration via DALI cockpit and DALI USB interface
- Integrated short-circuit protection

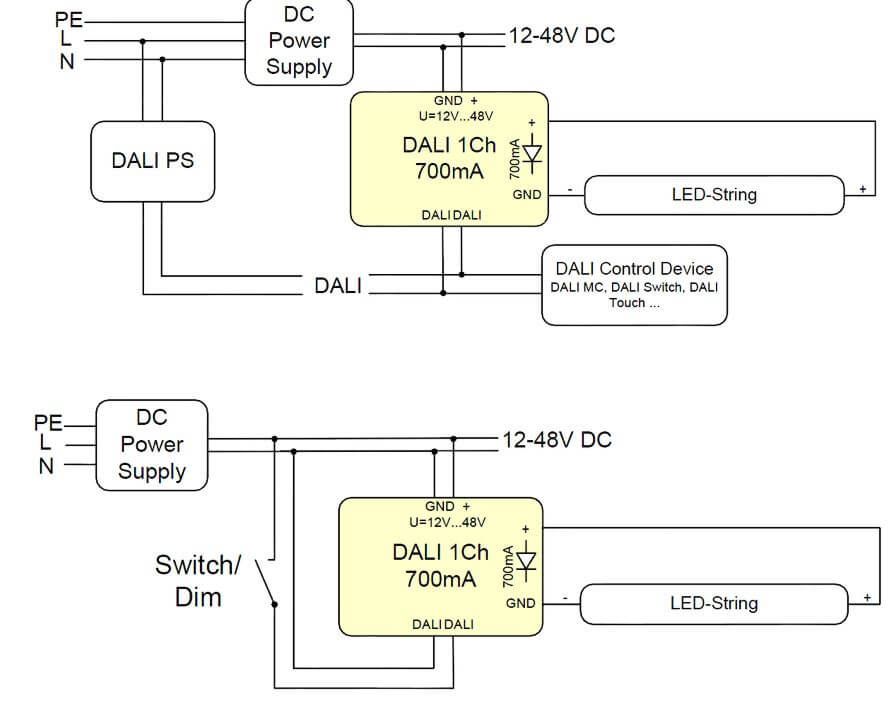

- Alternatively it is also possible to control it via push-button instead of DALI
Available variants:
- 350 mA const. Output current: 89453844-350
- 700 mA const. output current: 89453844-700
Technical data for DALI ballast
- Supply: 12 V DC - 48 V DC
- Maximum output current: depending on the type
- Output voltage range: depending on the type (see data sheet)
- Control input: DALI
- Temperature: depending on the type (see data sheet)
- Protection class: IP20
- Condition after mains return: depends on DALI setting
- Maximum power mean: depending on the type (see data sheet)
- Dimensions (L x W x H): depending on type (see data sheet)
Properties "DALI ballast with 12V - 48V input for constant current"
| ·Dimmable/Control: | DALI, Push-Button |
|---|
Manufacturer "Lunatone Industrielle Elektronik GmbH"
Intelligent light control, in particular thanks to the universal DALI Enocean controller for wireless transmission of DALI signals. Professional solution to implement DALI projects without additional lines on the input side.
