DALI DT6 Powersupply 20W 24V/350-1050mA 89453849

Variants from 46.11€ *
Net price: 38.75€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

1-channel DALI LED Power Supply 89453849 with DALI control input Product features... more

1-channel DALI LED Power Supply 89453849 with DALI control input


Product features

  • Types for constant voltage (24V) and constant current (250mA, 350mA, 500mA, 700mA, 1050mA) available
  • Control via DALI-address (DT6)

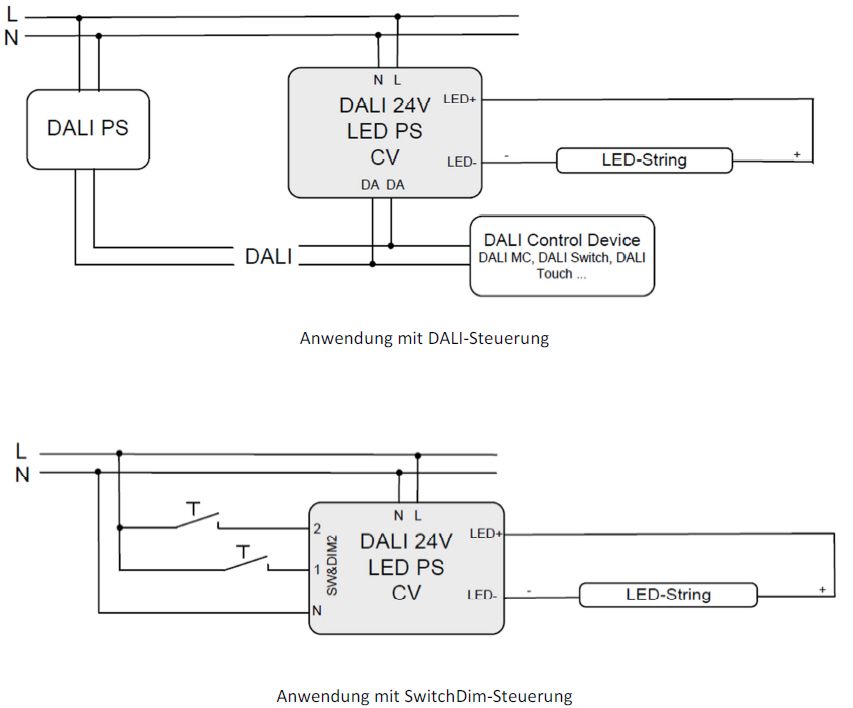

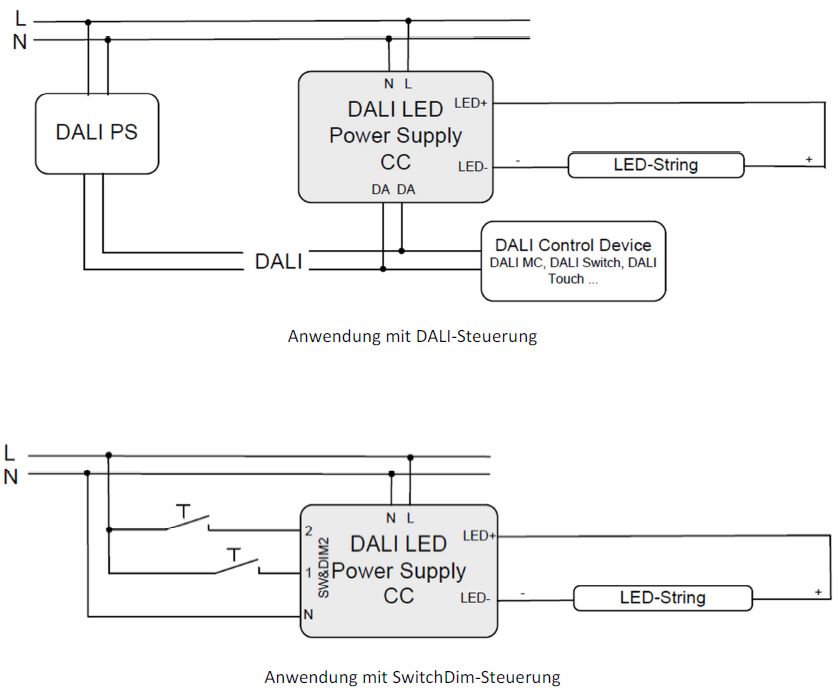

  • SwitchDim2: level control via switching inputs without DALI
  • Dimming range from 0.1%-100% (constant current operation)
  • Supply voltage 230V AC
  • Configuration with DALI-Cockpit softwaretool and DALI USB interface
  • Over temperature shutdown, integrated short circuit protection
  • User-friendly factory default settings
  • Suitable for integration in luminaires and remote ceiling


Technical data

  • Supply: 220/240 V AC 50/60 Hz
  • Idle power: < 0,3W
  • Inrush current: >0,2 A
  • Power factor: >0,95
  • Control input: DALI or SwichDim2
  • Number of DALI addresses: 1
  • Current consumption DALI: 2mA
  • Temperature: -20 °C to +45 °C
  • Protection class: IP20
  • Power on behaviour: Configurable via DALI: 0%-100% or last value
  • Max. connecting wire cross section : 1,5 mm2

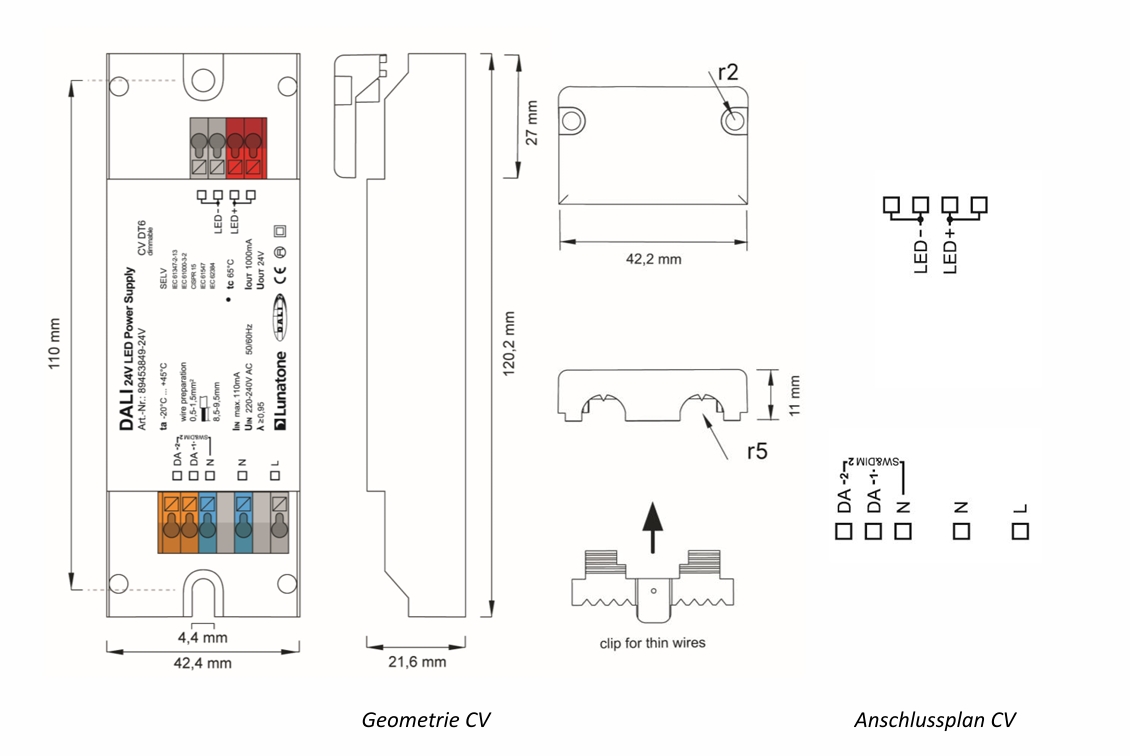

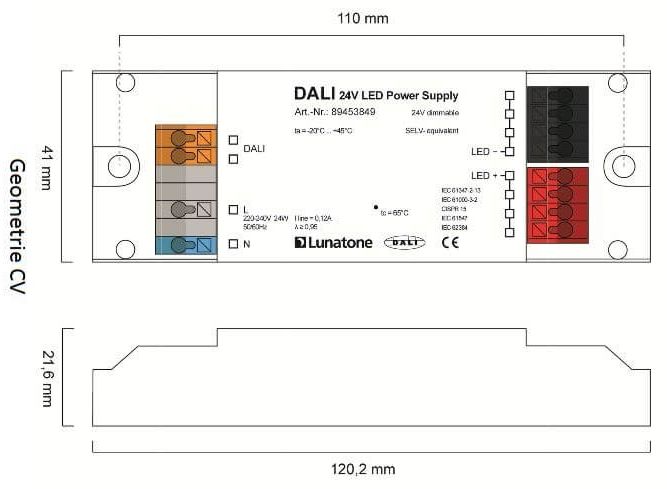

  • Dimensions (LxWxH): 120 mm x 41 mm x 22mm



Specification:

Constant voltage (CV)

Type: DALI 24V LED Power Supply CV DT6
Article number 89453849-XXX 24V
Electrical data:
Output voltage 24V+- 0,5V PWM
max. output current 1A


Constant current (CC)

Type DALI LED Power Supply CC DT6
Article number 89453849-XXX 250  350  500  700  1050
Electrical data:
Output current 250mA 350mA 500mA 700mA 1050mA
Output voltage range 12-44V 12-44V 12-36V 12-32V 12-21V


RECOMMENDATION: Care should be taken on keeping cable lengths between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.ieren.

For more information on the Lunatone 1-channel DALI, please refer to the data sheet in the Downloads tab.
