DALI light sensor LS module from Lunatone The DALI light sensor LS automatically controls the... more

DALI light sensor LS module from Lunatone

The DALI light sensor LS automatically controls the light level of individual luminaires or luminaire groups. A rotary switch allows the desired illuminance to be set directly at the rear of the device. The measured light level can also be queried via the DALI bus.

Product Characteristics

  • Light intensity sensor for brightness measurement in DALI lighting control systems
  • Optional use as active lighting control unit or for monitoring purposes
  • As an active lighting control unit, the module can be configured either as a threshold switch with hysteresis or as an ambient light-dependent controller
  • As threshold switch, the DALI light sensor LS can send various DALI commands (such as ON, OFF, RECALL MIN/MAX, GO TO SCENE X,...) to defined destinations
  • As adaptive light level-dependent dimming control, the target address and brightness setpoint can be specified for the module
  • Simple configuration of the sensor via the DALI bus using the DALI Cockpit software. Individual and group addresses or broadcast addresses can be used as destination addresses

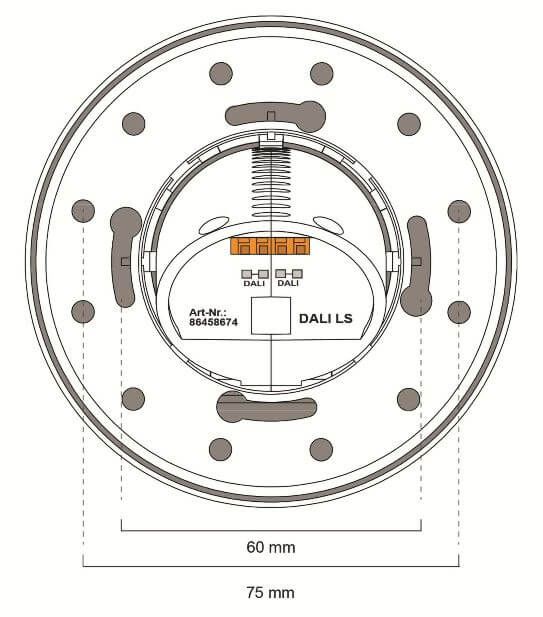

  • The default setting can be used for simple applications. The rotary switch on the rear panel is used to set the brightness setpoint. The default destination address is Broadcast
  • The combination of several DALI LS in one DALI circuit is possible

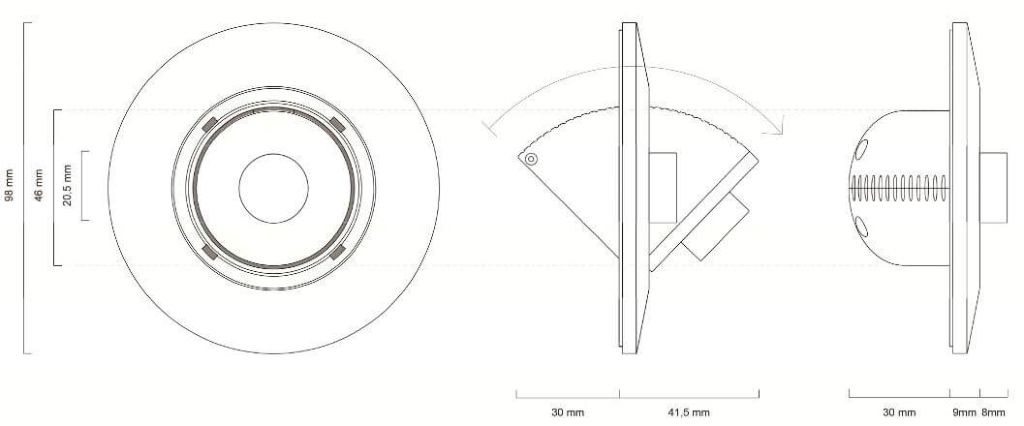

  • The compact module can be mounted in a flush-mounted box or directly on cavity walls

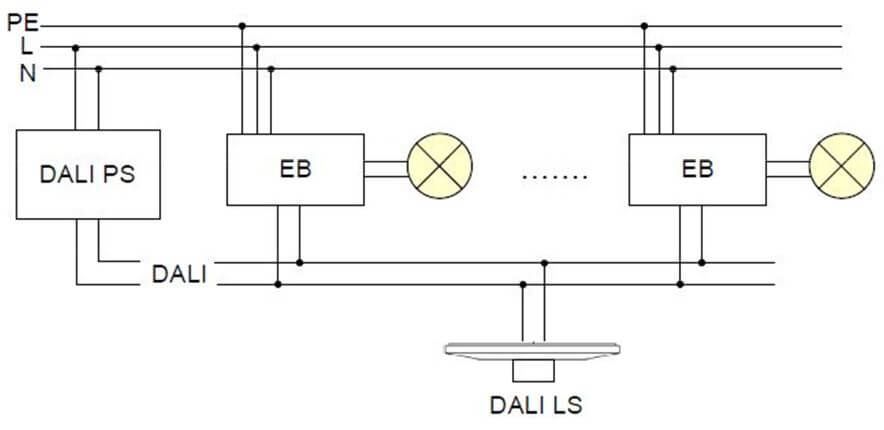

  • The module is supplied directly via the DALI line; no additional connection is necessary
  • Simple installation with DALI double terminal


Item number 86458674 86458674-W16 86458674-W16-AP 86458674-W16-ZD


Technical data

Light sensor
Measuring range: 0-2500lux
Resolution: 1lux
Function Programmable, brightness setting via rotary switch
Storage- and transport temperature -20°C ... +75°C
Operating temperature -20°C ... +70°C
Protection class IP20
Connection wires cross section 0.5-1.5 mm²
Housing colour RAL9010 RAL9016 RAL9016 RAL9016
Montage Can, cavity wall Can, cavity wall Surface-mounted Suspended ceiling
