DALI temperature module for indoor and outdoor use

61.48€ *
Net price: 51.66€

Prices incl. VAT plus shipping costs

Delivery time 1-3 weeks*


DALI temperature module to measure the temperature with built-in sensor or external PT1000... more

DALI temperature module to measure the temperature with built-in sensor or external PT1000

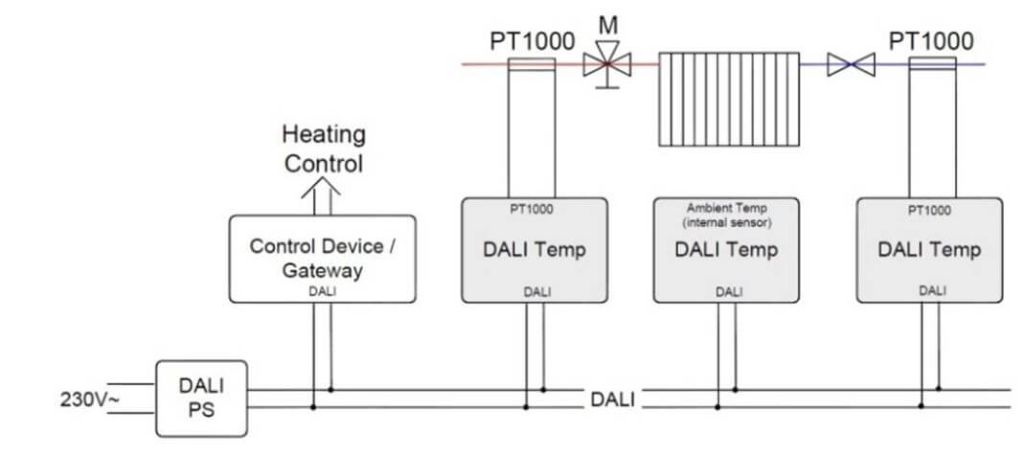

  • The DALI Temp module determines the internal, external, flow or return flow temperature, depending on the application. The current measured value can be read out at any time.
  • Internal sensor installed and option to connect an external PT1000.
  • All measured values can be read out via DALI.
  • No additional power supply is required, this is guaranteed via the DALI bus.


  • Power supply: via DALI-Bus
  • typical current consumption: 2,6 mA
  • Output: DALI
  • Used DALI addresses: 1
  • Input (external): PT1000 (sensor sold separately)
  • Temperature measuring range (external sensor): -25 °C bis 125°C
  • Temperature measuring range (internal sensor): 0 °C bis 85°C
  • Accuracy (internal sensor): 0,5 °C
  • Protection class: IP20
  • Connection cross section: 0,5 - 1,5 mm2
Related links to "DALI temperature module for indoor and outdoor use"
Temperature module DALI sensor with indoor, outdoor, flow or return temperature more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Data sheett Temperature module
