LED power supply 60W / 80W IP65 - dimmable via phasecut/edge dimmer
This independent IP65 protected LED power supply is available in versions 12VDC or 24VDC output voltage or output power 60Wor 80W. With this universal LED power supply, it is possible to dim LED strips or other LED lamps with DC (DC voltage) via an external phasecut/edge dimmer. The high degree of protection allows ideal operation in combination with moisture-proof LED strips in the outdoor area.
Proven and recommended phase dimmers are in particular products by GIRA (030700/I02), JUNG (225TDE), Berker (2874), Kopp (8033), Feller (40300.RC), Busch-Jäger (6523U), as well as our Casambi-module for control via Bluetooth for intelligent lighting control.
Please observe:
The dimming range on is less with a lower LED load small (depending on dimming).
The minimum load of the dimmer must not be underdriven.
This is unavoidable in the case of phase dimmers: in dimming mode, can buzzing occur, especially with phase- or section dimmers.
LED modules only connect in parallel! Do not switch in the secondary circuit of the LED power supply!
Technical data of the dimmable LED power supply units:
Designs
12V 60W
12V 80W
24V 60W
24V 80W
Article number
800594
800596
800595
800597
Type
NIDI12-60
NIDI12-80
NIDI24-60
NIDI24-80
Imput voltage
220-240 Vac
Frequency
50..60 Hz
50..60 Hz
50..60 Hz
50..60 Hz
Nominal output voltage
12 Vdc
24 Vdc
Output power
36..60 W
48..80 W
36..60 W
48..80 W
Power factor ? acc. to EN61000-3-2
0,94
Ambient temperature (ta)
-25..40° C
Rated maximum temperature (tc)
70° C
Overheating protection
ja
ja
ja
ja
Short circuit protection
ja
ja
ja
ja
Protection
IP65
IP65
IP65
IP65

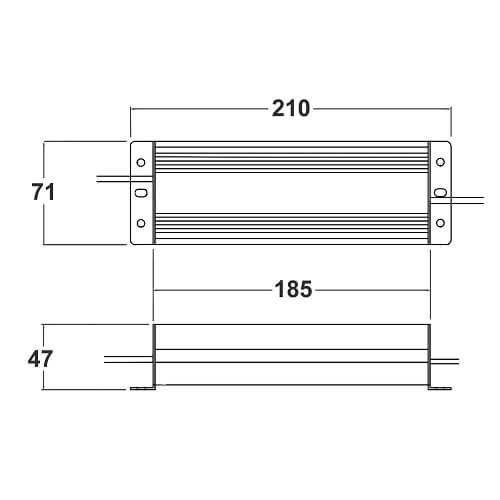

Dimensions
210mm x 71mm x 47mm
