DMX512 LED Dimmer 12-24Vdc 24x4A

282.13€ *
Net price: 237.08€
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time 6-12 weeks*


  • CTR-7673524
  • CTR-7673524
  • 0.9 kg
  • PUR-LED GmbH & Co .KG
DMX512 LED Dimmer 12-24Vdc 24x4A RDM This 24-channel RDM DMX512 converter lends itself to... more

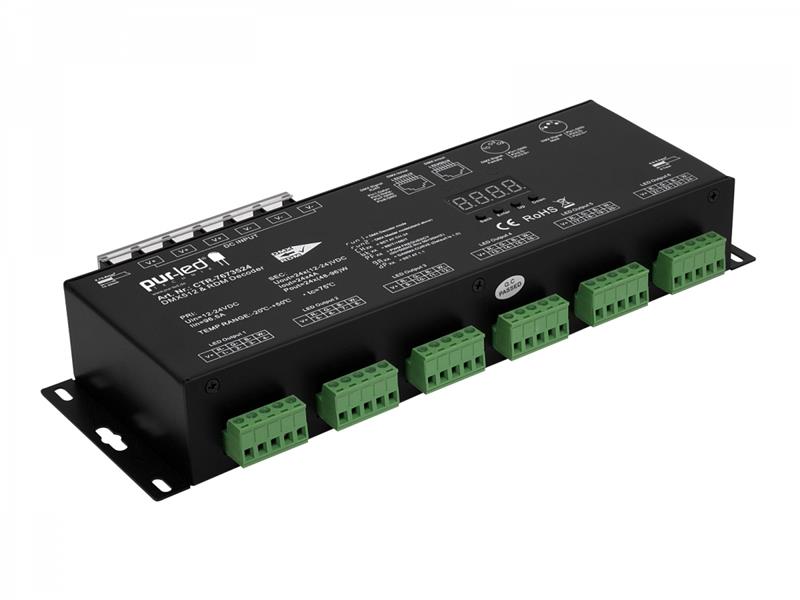

DMX512 LED Dimmer 12-24Vdc 24x4A RDM

This 24-channel RDM DMX512 converter lends itself to large light project. Perfect for controlling several zones.

Using RDM (remote device management) protocol, it is possible to communicate bidirectionally via standard DMX lines with all connected RDM-capable devices.
Connected devices are identified and addressed, the assignment of a DMX start address is omitted.
At the same time standard DMX and RDM-capable devices can be used, here there is no mutual interference. The RDM protocol sends its own signals, including status messages.

Technical data 6x4Kanal DMX Dimmer:

Input voltage 12-24 Vdc
Output current 24 x 4A, common positive pole
Output power 48W @ 12Vdc / 96W @ 24Vdc
Input signal DMX512 + RDM
Output signal 24 CH PWM constant voltage acc. +
Dimming 8 bit and 16 bit resolution DMX512

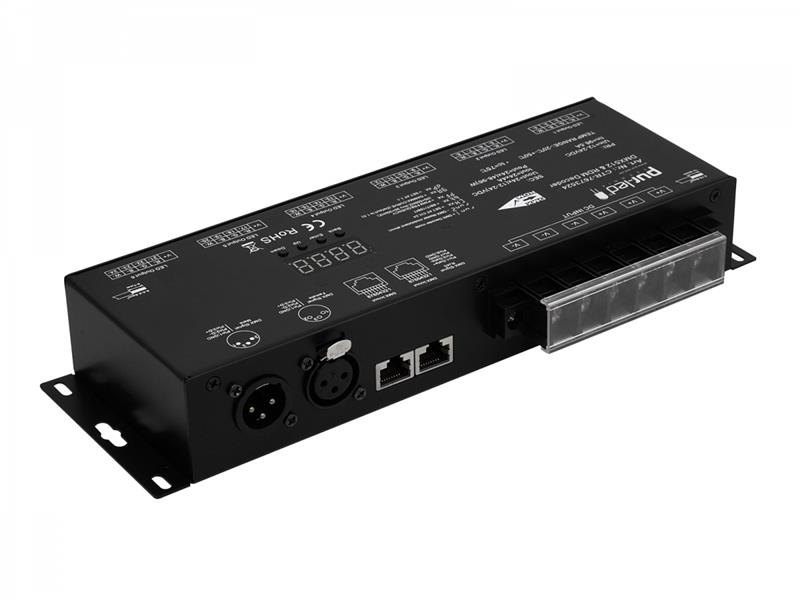

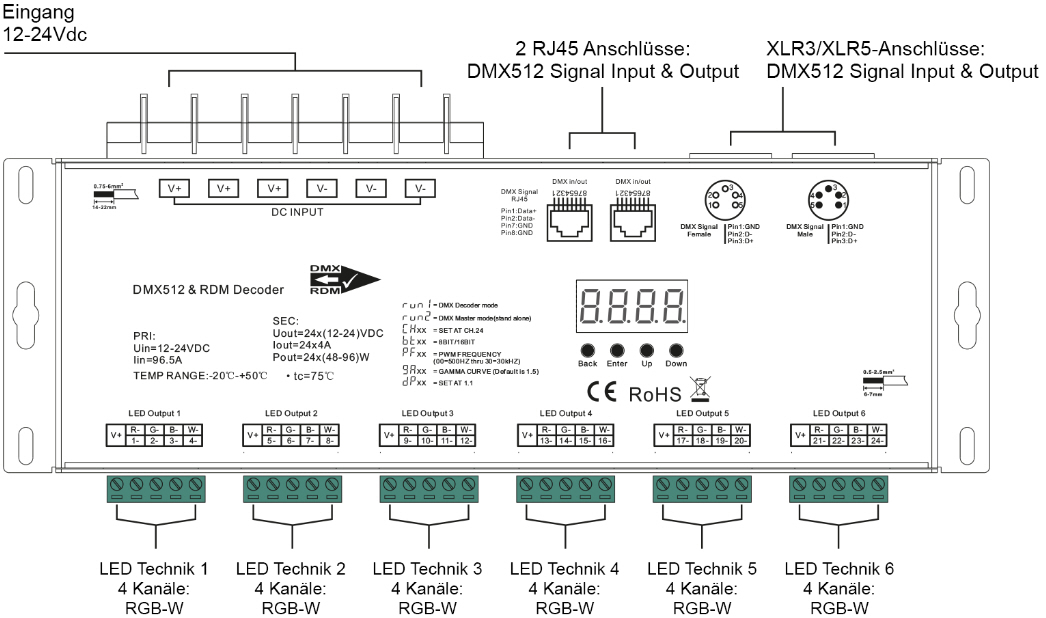

Connection DMX512 input and output for DMX signals,
optional XLR or RJ45 connectors
Dimensions (LxWxH in mm) ca. 265 x 83 x 42
Operating temperature -20 - + 55°C
Delivery LED DMX 24 channel (6x 4 channel)
Decoder (Art.Nr.: CTR-7673524)

For more detailed information, please read the data sheet / PDF.
Related links to "DMX512 LED Dimmer 12-24Vdc 24x4A"
LED RDM DMX512 dimmer 24-channel, converter, 12-24Vdc 24x4A max. gem. PLUS more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 15V, 20V, 24V
Dimmable/Control: DMX
Data sheet Dimmer DMX512
