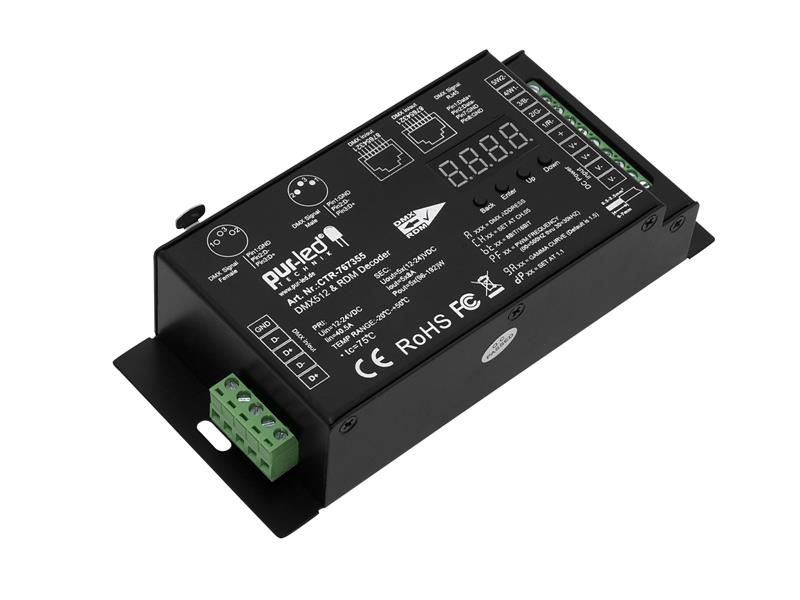

DMX LED Controller 512 3-channel Decoder

Product information "DMX LED Controller 512 3-channel Decoder"

DMX LED Controller, DMX 512 3-channel Decoder

RGB converter, RGB 5-24VDC 3x8A common positive

This DMX 3-channel decoder serves as RGB LED controller for the DMX-512 standard

The input signal is a standard DMX512. Optionally also available: XLR, RJ45 or terminal connections.

The DMX LED Controller is dimmable in 256 steps.

The DMX address can be set via dip switch 1-9 from 0 to 511.

To set the address to 37, set switch 1,3 and 6 (1 + 4 + 32) to ON.
The decoder then uses the addresses 37, 38, 39 and 40 consecutively on RGBW output.

DMX LED Controller

In addition, the DMX LED Controller has a test function.

Technical Data:

Input voltage:5-24V DC
Outup current:3 channelsx 8A max.
Input signal:DMX512
Output signal3CH PWM constant voltage, common +
Channels:three: R- / G- / B- / COM+
Dimming range:256 levels

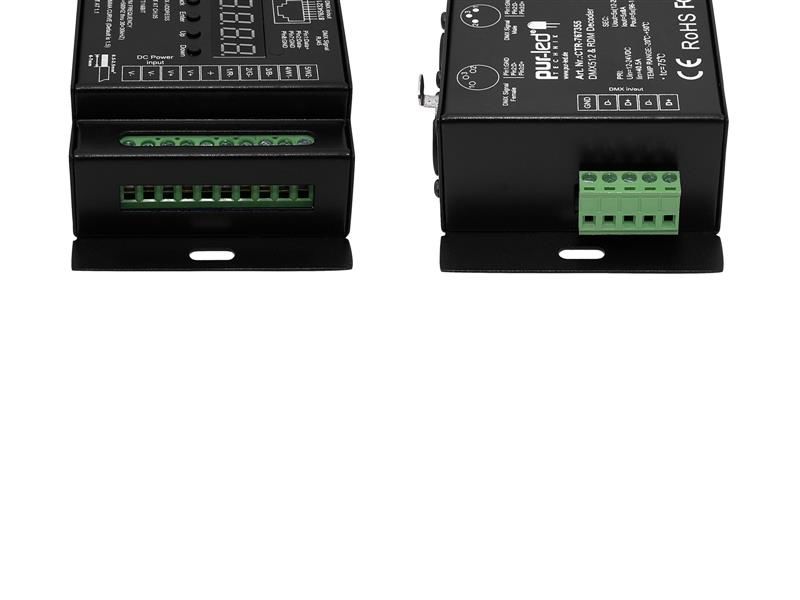

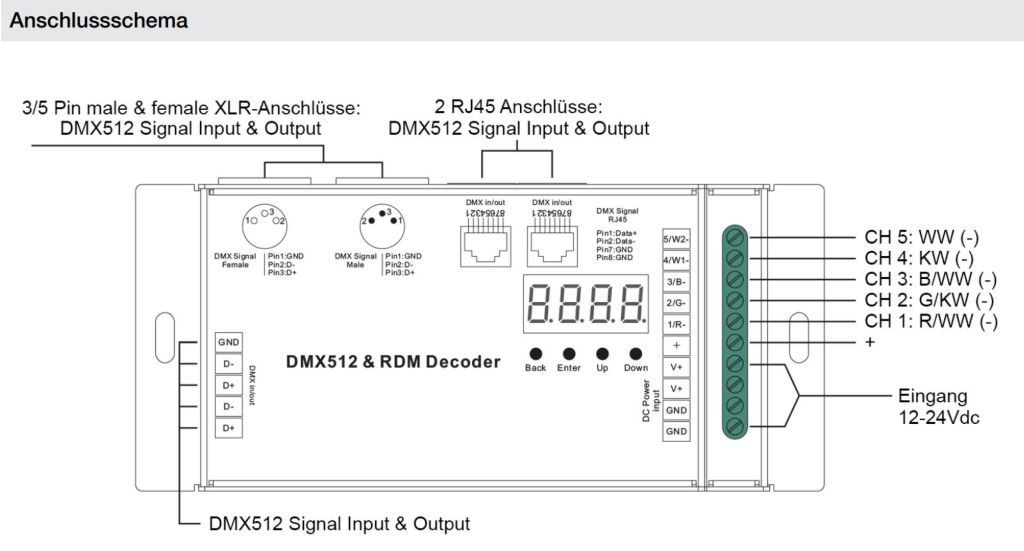

DMX512 Connection:DMX512 Connection: DMX512 input and output for DMX signals alternatively XLR, RJ45 or terminal connections
Output power:120W @ 5Vdc / 288W @ 12Vdc max. / 576W @ 24Vdc max.
Temperature range:-20 to +55°C
Dimensions (LxWxH) in mm:156 x 78 x 40
Properties "DMX LED Controller 512 3-channel Decoder"
·Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch, Tuneable White
·Dimmable/Control: DMX
·Constant Voltage: 12V, 15V, 20V, 24V
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

DMX Controller 512 Datasheet

DMX LED Controller 512 Data sheet"
