PUR-LED DMX512 Decoder

87.19€ *
Net price: 73.27€
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


  • CTR-7673545
  • CTR-7673545
  • 0.115 kg
  • PUR-LED GmbH & Co .KG
LED DMX 512 4-Channel Decoder 12 - 36Vdc 4x5A DIN-rail from PUR-LED 4-Channel DMX 512 Decoder... more

LED DMX 512 4-Channel Decoder 12 - 36Vdc 4x5A DIN-rail from PUR-LED

4-Channel DMX 512 Decoder with 240W @ 12Vdc / 480W @ 24Vdc max. / 720W @ 36Vdc max output power.

The DMX 512 Decoder from PUR-LED is easy to install on a DIN rail (DIN rail TS35 / 7.5 oder 15).

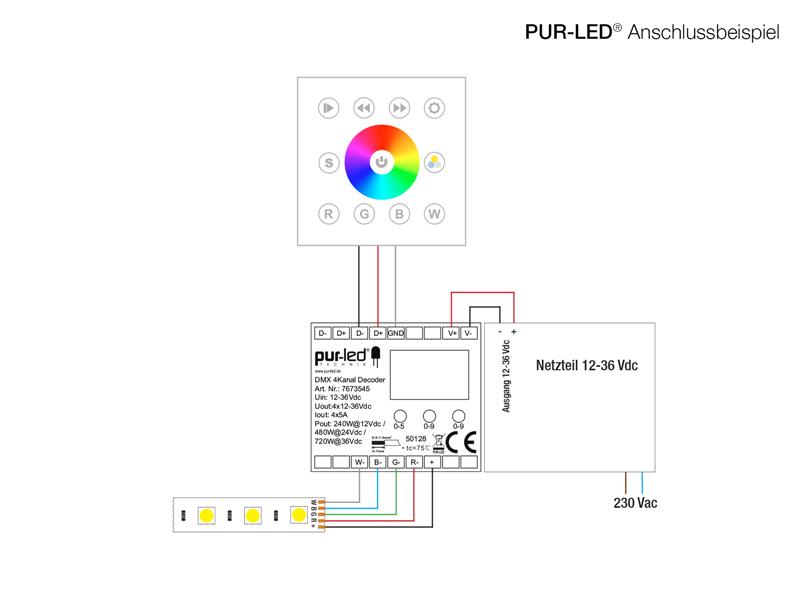

It works with 1- and 2-colour as well as RGB and RGB (W) LED technology and converts the DMX512 input signal into a PWM output signal. The digital display allows you to enter and read the DMX addresses conveniently.
In addition to the ability of dimming your LEDs from 0-100%, you are able to play the preset colours and to invoke a warm as well as a jumping colour change.

Technical Data:

Input voltage 12-36 Vdc
Output voltage 4 Channels x 5 A max.
Input signal DMX512
Ouput signal 4CH PWM constant voltage, gem.+

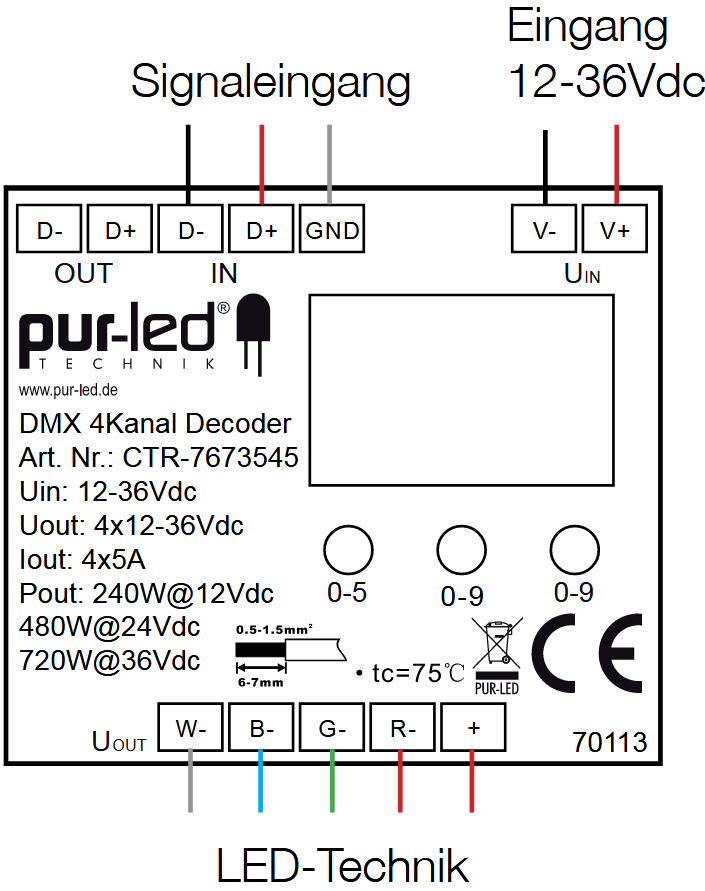

Channels four: R- / G- / B- / W- / COM+
Dimming 0-100% in 256 Levels
DMX512 Connection Input/ Output for DMX signals with terminal clamps
Output power 240W @ 12Vdc / 480W @ 24Vdc max. / 720W @ 36Vdc max.
Temperature range -20°C to +55°C
Dimensions (L x W x H) in mm 109 x 53 x 63

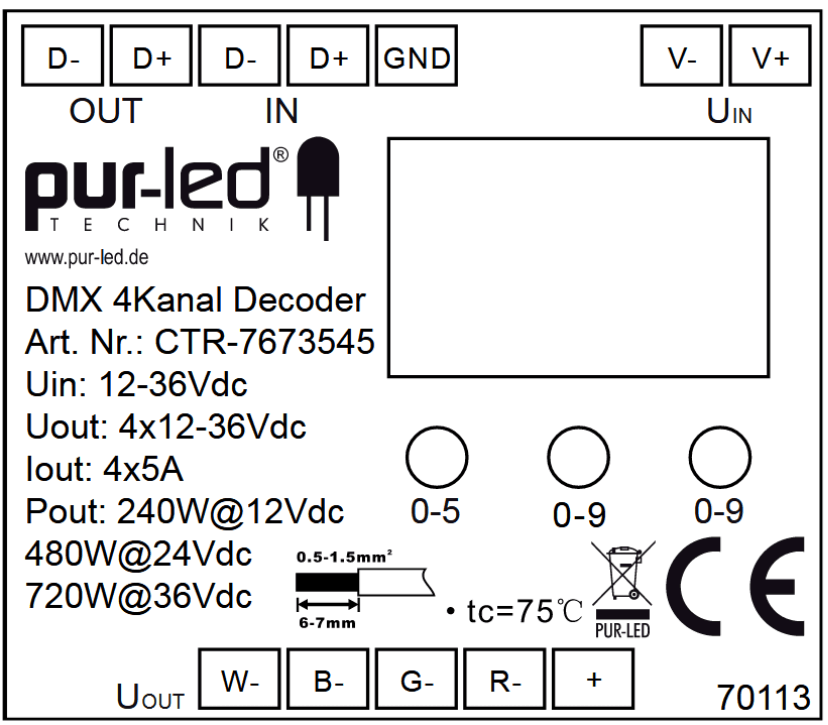

Adress setting:

  • Adressing by means of the three pushbuttons (0-5, 0-9 und 0-9).
  • Push one of the buttons for ca. 3 seconds until the display starts to blink.
  • Set channels in the range from 001 - 508 by briefly tapping the button.
  • Exit the input mode by pushing one of the buttons for ca. 3 seconds or 8 seconds after waiting for channel input.
DMX decoder RGBW LED dimmer 4x5A address setting

This device must be installed by an electrician!
For further information please refer to the data sheet.
Related links to "PUR-LED DMX512 Decoder"
DMX 512 4-Channel Decoder, DMX 512 PWM Dimmer 4 x 5A output current, 512 DMX Adresses. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 15V, 20V, 24V, 28V, 30V, 36V
Dimmable/Control: DMX
Data sheet 4-Channel DIN rail
Read, write and discuss reviews... more
Customer evaluation for "PUR-LED DMX512 Decoder"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

DMX LED Controller 1 channel DMX LED Controller 1 channel
Content 1 Stück
76.29€ *
Order number: 76715010
DMX LED Controller 512 3-channel Decoder DMX LED Controller 512 3-channel Decoder
Content 1 Stück
108.11€ *
Order number: CTR-767355
128.00€ * 135.90€ *
Order number: LIN720D3

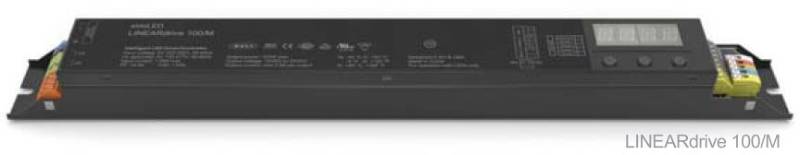

lineardrive 100 bauform m eldoLED LINEARdrive 100 DALI/DMX
