Downlight PASSUM UP GU10

A++ to A
From 202.00€ *
Net price: 169.75€

Prices incl. VAT plus shipping costs

Please select a variant first





  • 4529-MG-5-R
  • PASUP125-GU10-7
  • ALS GmbH
LED Downlight PASSUM-UP GU10 from A.L.S. These recessed luminaires optimally meet the... more

LED Downlight PASSUM-UP GU10 from A.L.S.

These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here.
The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options.
The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces.

Features of the PASSUM-UP series:

  • Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating
  • Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg
  • 0.5 m floor-retractable H07RN-F cable with IP68 connection

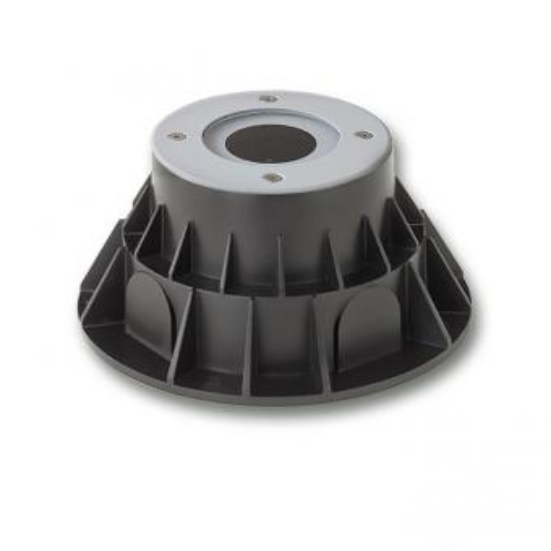

  • Built-in box made of stabilized technopolymer
  • The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws
  • Manufactured in accordance with European standards EN 60598-1: 2015
  • Version is available in round and square

Technical data:

Light source GU10 GU10
System power 5W 8W
pivotable 15°
Connection voltage 230 V
Energy efficacy A++ - D
Protection class 1
Mechanical load IK10
passable 2000 Kg 3500 Kg
Protection type IP67
Dimensions round Ø125mm
square 125x125mm
round Ø 180mm
square 180x180mm

INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector

For further information please refer to the data sheet in the Download-tab.

Related links to "Downlight PASSUM UP GU10"
GU10 LED recessed floor light with IP67, round / square design; metallized grey/ stainless steel,... more
Features of the product family. Details on variants can be found in the description.
Application: Outdoor
Base: GU10 (HV)
Power: 9W
Data sheet round 125mm
Data sheet square 125x125mm
Data sheet round 180mm
Data sheet square 180x180mm
