EnOcean DALI-2 Multicontrol Modul | 86463327

Variants from 161.84€ *
Net price: 136.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:

EnOcean DALI-2 MC control module capable of connecting 4 EnOcean wireless pushbuttons to DALI |... more

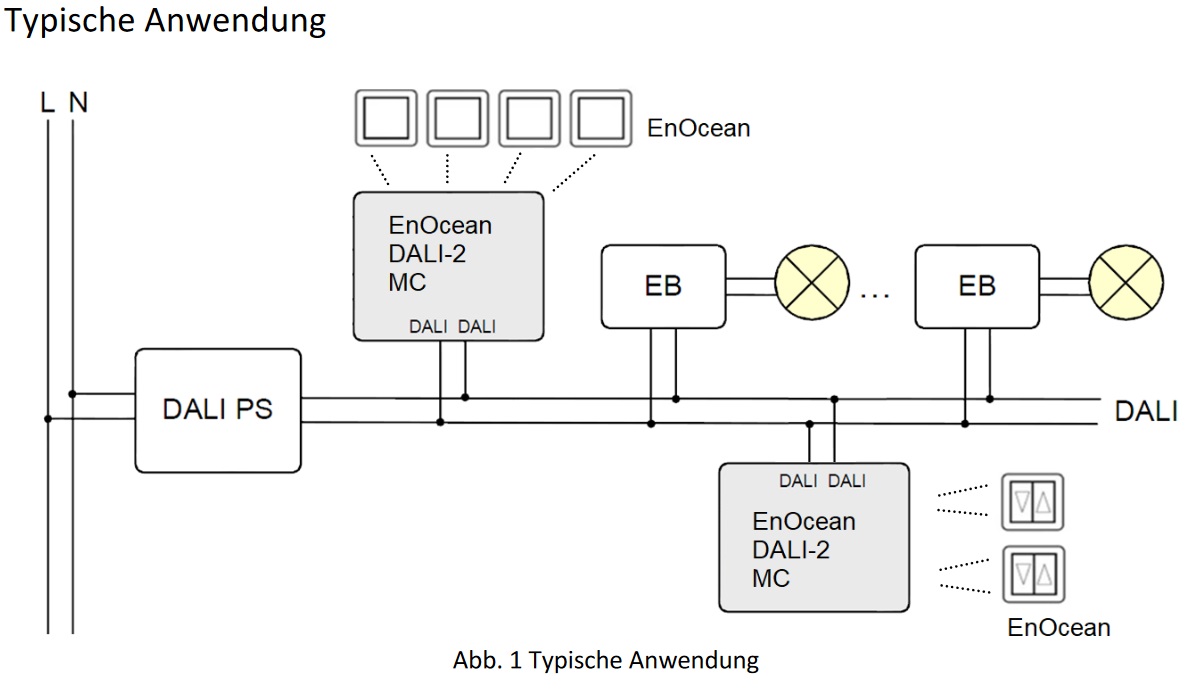

EnOcean DALI-2 MC control module capable of connecting 4 EnOcean wireless pushbuttons to DALI | 86463327

Each of the 4 EnOcean Inputs can be individually configured with switching functions, effective range and DALI commands. Additionally to standard functions like Scene recall, dimming, switching and more, the device is capable of Setting the Colour temperature, sequences and dynamic Scenes as well as user defined command lists. The device is designed to fit a flush-type installation box.

Variants:

  • 86463327-app: Here the application Controller is activated. Additionally to Standard DALI commands, the DALI DT8 TC and RGB/W Control is supported. The device can also be set to instance mode with the DALI Cockpit PC Software.
  • 86463327-int: This variant is set to instance mode (no direct DALI Control commands) for Integration into higher-level Building managements Systems from e.g., Beckhoff or WAGO. The application Controller can be activated with the DALI Cockpit PC Software.
  • 86463327-NFC: In this Version, Settings are adjustable by using a NFC Ready Smartphone and the Lunatone NFC App, in Addition to Standard configuration via the DALI Cockpit PC Software.

Type EnOcean DALI-2 MC EnOcean DALI-2 MC Integration EnOcean DALI-2 MC NFC
Art. Nr. 86463327-app 86463327-int 86463327-NFC
Factory Default setting app-controller active instances active app-controller active
Electrical data
Supply by DALI Bus
Typical current consumption 6 mA (DALI)
Input type 4 EnOcean - wireless
Output type DALI, DALI-2, Multimaster
Technical data
Ambient temperature -20°C...+75°C
Protection degree housing IP40, terminals IP20
Wire size: solid core 0,5 … 1,5mm² (AWG20 … AWG16)

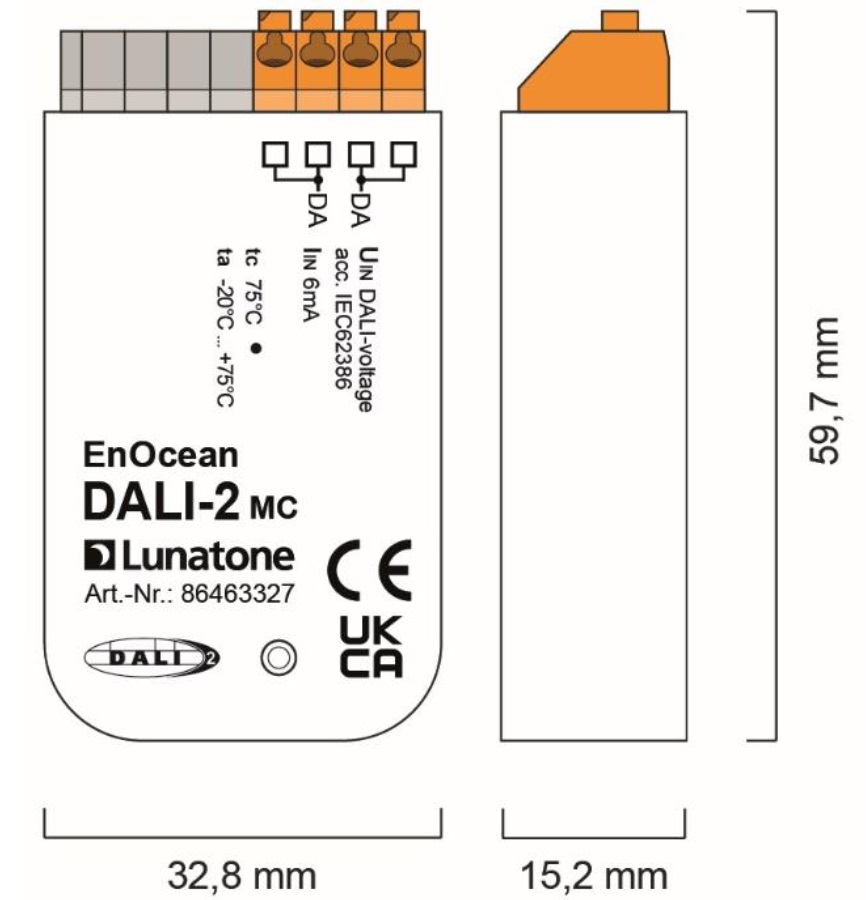

Dimensions (LxWxH) 59mm x 33mm x 15mm
Case Type flush-type Installation box

For more Information, please refer to the data sheet in the download tab.

Related links to "EnOcean DALI-2 Multicontrol Modul | 86463327"
DALI control module for connection of 4 EnOcean wireless pushbuttons. Each input is capable of... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI2, DALI DT8, Enocean (868 MHz)
Datasheet DALI-2 MC EnOcean
86463327-app / 86463327-int / 86463327-NFC
