DALI MC / DALI-2 MC Multi Control control module 86459532 with 1 to 4 programmable,... more

DALI MC / DALI-2 MC Multi Control control module 86459532 with 1 to 4 programmable, potential-free inputs

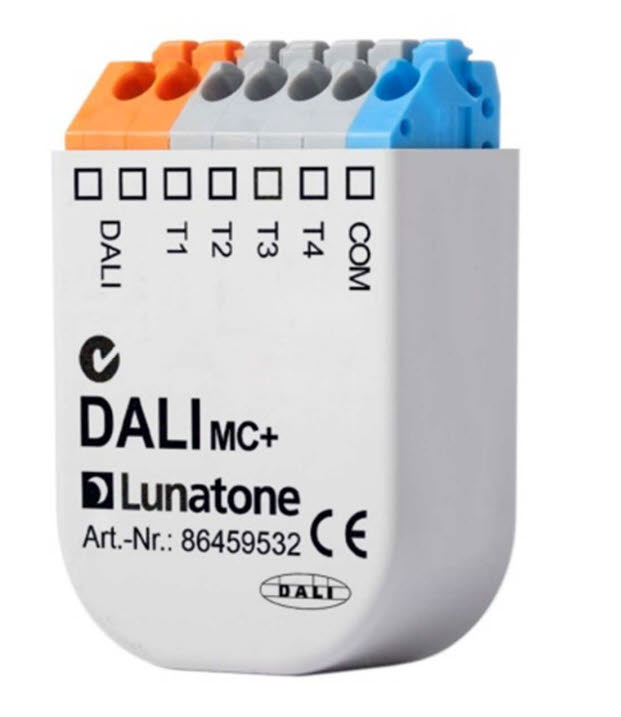

The DALI MC (+) from Lunatone is a & nbsp; push button coupler / interface for connecting four conventional switches or buttons.
Now also the versions for DALI-2.

Various DALI commands can be assigned to each input via PC software: dim up, dim down, off, recall min., Recall max., Goto scene 1-16, direct arcpower ...%, mask and predefined macros.

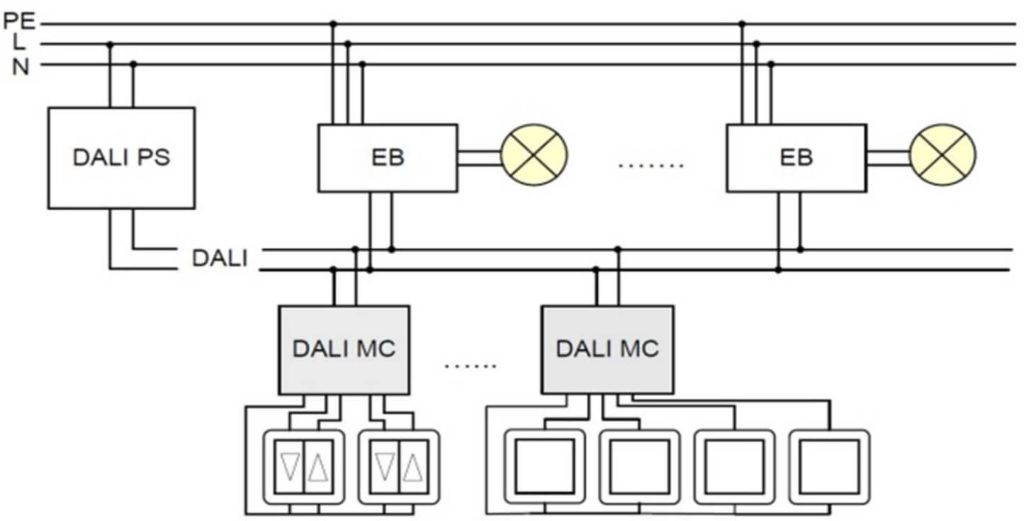

The compact DALI-2 MC / DALI MC + can be inserted into the flush-mounted box behind the switch, turning a standard light switch or button into a DALI control device.

The compact device can be inserted into the flush-mounted box behind the switch. In addition to the configuration via the DALI Cockpit PC software, selected settings can also be made using an NFC-enabled smartphone and the Lunatone NFC app.

Features DALI MC (in phase out):

  • Compact control module with four freely programmable switching inputs or analog inputs (MC +) for mains voltage
  • A maximum of 2 functions can be assigned to each input, depending on the switching behavior (short or long button press, toggle, edge-controlled relay mode)
  • connection a 100KOhm potentiometer (MC + only)
  • The following functions are available:
    • dim up,
    • dim down,
    • recall min, max
    • got scene 1-16
    • direct arcpower in%
    • and both predefined and self-configurable macros
  • Control of the color temperature (DT8) with Step Cooler, Step Warmer commands (MC + only)
  • With analog inputs, the input signal is converted directly into a DALI dimming level. The conversion can be initiated periodically or by a trigger (MC + only).
  • Possibility of a configurable power-up function, i.e. automatic sending of an adjustable command after a voltage interruption
  • Configuration via DALI-Cockpit and DALI-USB interface (also DALI-PS required)
  • Possibility of addressing individual addresses (1-64), groups (1-16), and broadcast multi-master capability, several modules can be installed in a DALI circuit
  • Use with default setting for dimming and switching applications without additional configuration possible
  • The module can be inserted in a flush-mounted box directly behind a light button
  • The module is supplied directly via the DALI line and does not have to be connected to the network
  • The buttons are connected directly to the module (potential-free closing contacts) (MC)

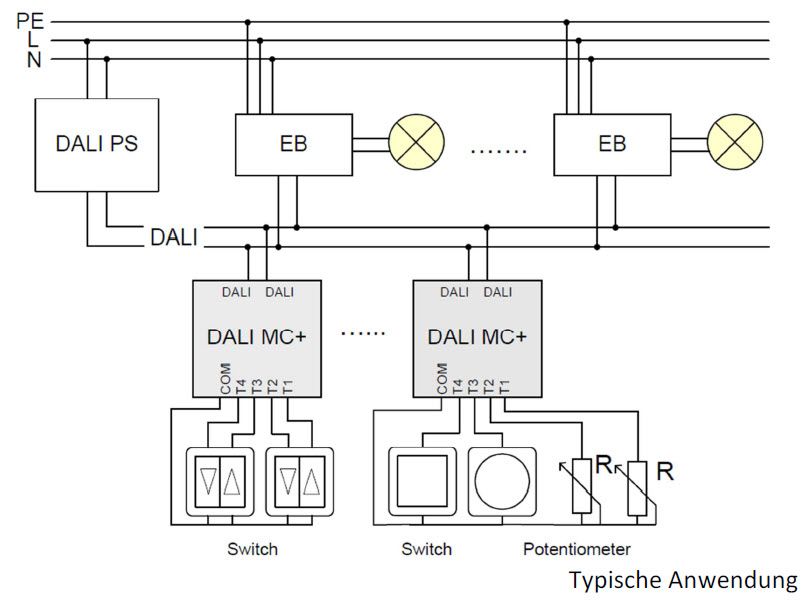

  • DALI MC + with alternatively also an analog input. Connection of 100kOhm potentiometer possible.

Features for DALI-2 MC

  • Compact DALI-2 control module with 4 potential-free inputs
  • Multi-master capable. Several modules can be installed in a DALI circuit and / or a DALI group.
  • Individual DALI commands can be assigned to each input
  • Integrated DALI-2 application controller
  • Simple integration through four DALI-2 pushbutton instances
  • In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB (W) control
  • Supports short button press, long button press (with repetition for dimming) and Toggle
  • In addition to buttons, also suitable for switches.
  • New: Alternative button function, each of the inputs can also be assigned a second function, which can be activated / deactivated via a scene command on the DALI bus or via a switch on input 4. In this way, for example, the partition wall problem can be solved.
  • Sequences, macros and other functions are available in the application controller.
  • Simple configuration via LUNATONE DALI USB interface and DALI cockpit software tool.
  • New: NFC variant for simple, contactless configuration with LUNATONE NFC smartphone app
  • Easy installation: the device can be placed in a flush-mounted box and is supplied via the DALI bus
  • DALI-2 control unit according to IEC62386-103.

Technical data for DALI-2 MC:

Type DALI-2 MC DALI-2 MC integration DALI-2 MC NFC
Article number 86459532-2-app 86459532-2-int 86459532-NFC
GTIN GTIN 9010342013492 GTIN 9010342012730
Delivery status App-Controller App-Controller App-Controller activated Instances activated App-Controller App-Controller activated
Note The application controller leads to direct DALI control commands, which are executed immediately by the DALI drivers. (see MC +) The DALI-2 instances generate event messages that are interpreted and processed by higher-level control units (WAGO, Beckhoff, LUNATONE DALI-2 KNX gateway). The DALI-2 MC NFC includes a nearfield communication interface. This means that the configuration can be carried out not only with the DALI Cockpit software, but also via this NFC interface with a smartphone app.
DALI interface, supply:
Type of exit DALI, DALI-2, Multimaster
Identification of terminals DA, DA
Voltage range 9.5V - 22.5Vdc according to IEC62386
typ. Current consumption DALI (16.5V) 1.7 mA
max. Current consumption DALI (22.5V) 2 mA
DALI addresses none
DALI-2 addresses one
inputs & nbsp;
Entrances for Potential-free buttons / switches
Number of inputs 4

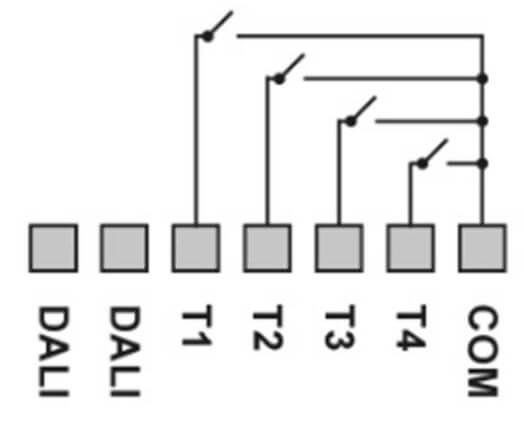

Identification of input terminals T1, T2, T3, T4, COM
Control pulse length min. 40ms
Control pulse length long button press adjustable from 200-5100ms
Max cable length button inputs 50cm
General data: & nbsp;

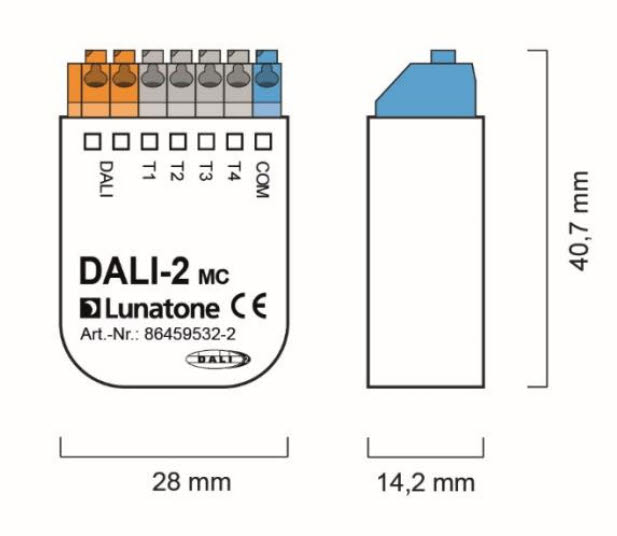

Dimensions 40mm x 28mm x 15mm
Assembly Installation installation box, installation in protection class II devices
max. Rated temperature tc 75 ° C
Expected lifetime 200,000h
Protection class SKII if installed as intended
Protection type housing IP40
Protection class terminals IP20

For further information (also DALI MC +) please refer to the data sheets in the download tab.
