Illuxtron Fluxe 90 LV (Low Voltage) Downlight The Fluxe downlights fall under the first... more

Illuxtron Fluxe 90 LV (Low Voltage) Downlight

The Fluxe downlights fall under the first luminaires from Illuxtron. Over the years the series was expanded and grew with new technologies and now consists of 5 luminaires with different hole sizes and specifications. The Fluxe 90 recessed downlights from Illuxtron are real powerhouses!

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

Version Power range
Beam angle
Special feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology) 10,1-10,3 W 40° / 80° directly connectable to 220-240V
HV-WD 11,2 W 80° directly connectable to 220-240V, Power factor (>90)
LV (Low Voltage) This Version 13,8 W 24° / 60° / 80° CRI-97 Standard, inc. PSU
LV-TW (Low Voltage- Tuneable White) 11,4 W 60° / 80° Tuneable White Technology

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Fluxe 90 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Fluxe 90 series:

Housing colour

matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)

Material Housing: Die-cast aluminium
Reflector glass: Polycarbonate

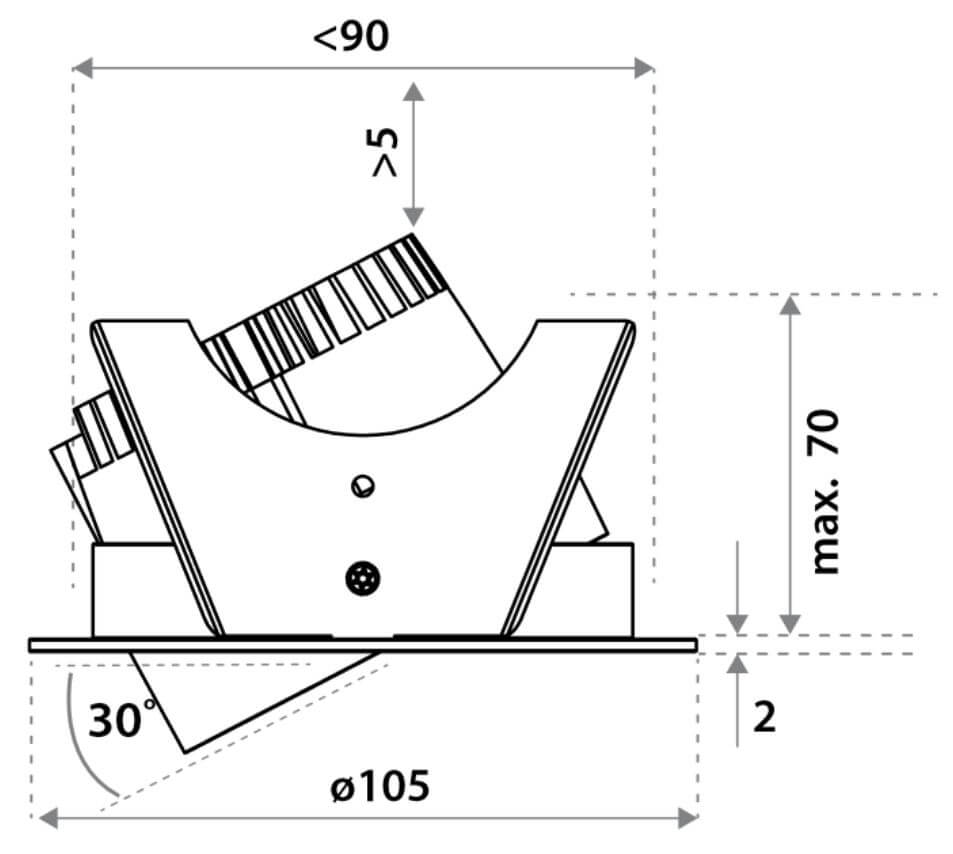

Dimensions ø 105 mm
Required installation depth > 75 mm
Ceiling cut-out

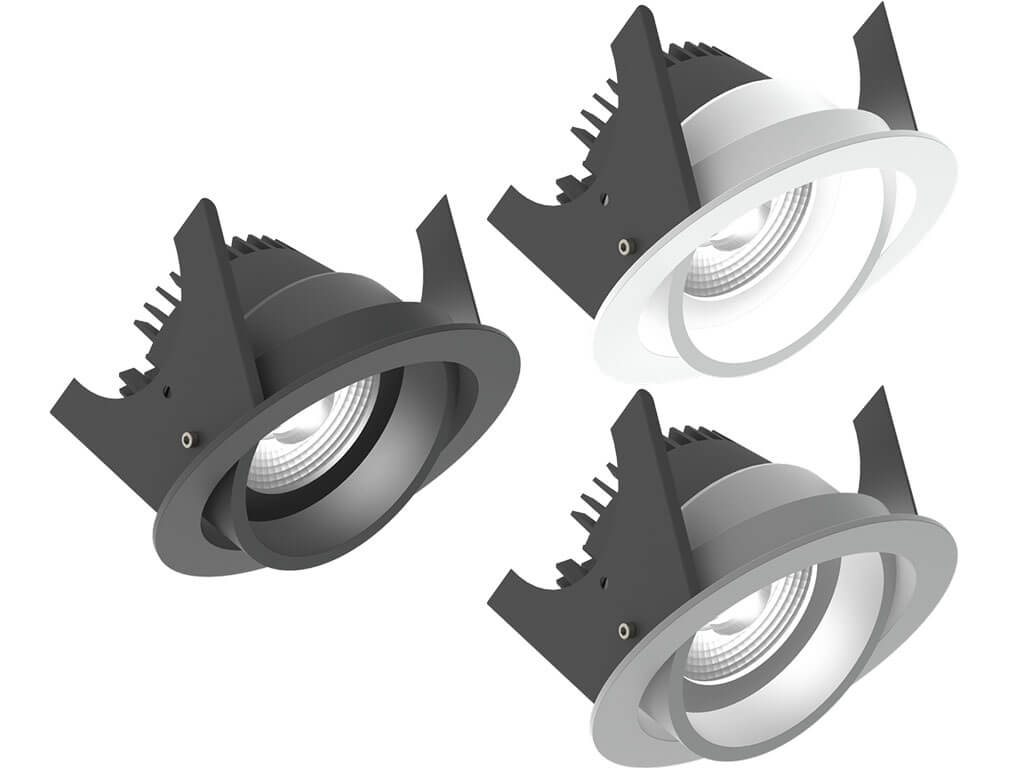

90 mm: Use of ceiling springs.

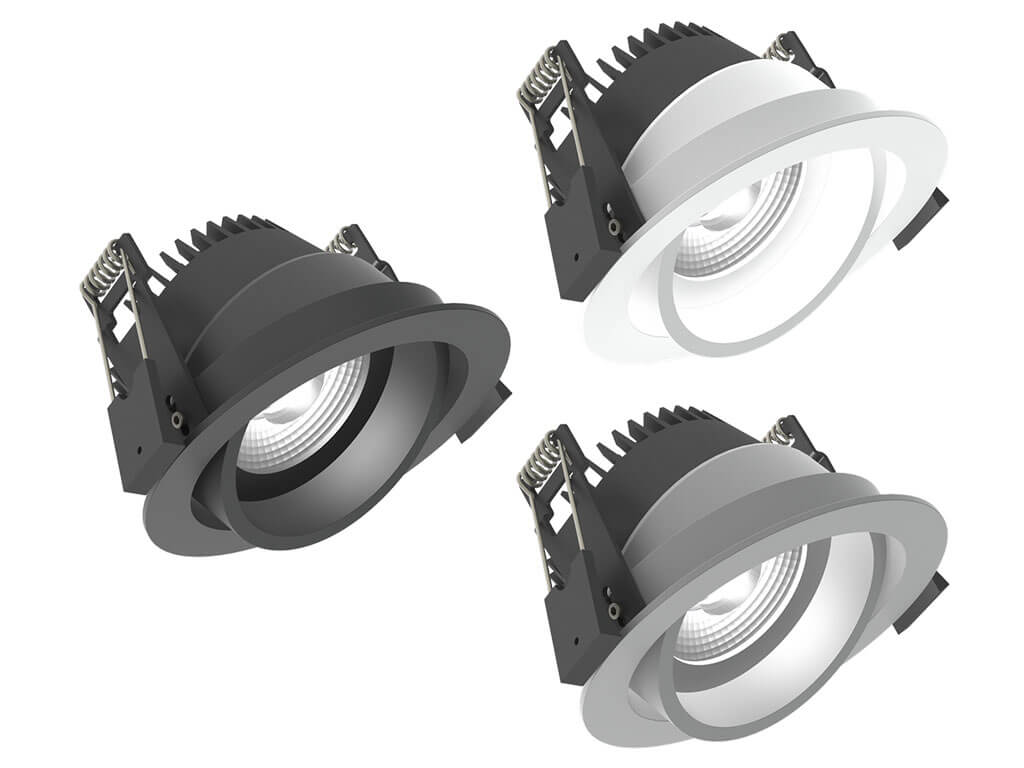

92 mm: Use of wire springs.

Usage Indoors
Colour Consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 162.137 h
L80B50 99.652 h
L90B50 44.082 h
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A

Fluxe 90 Low Voltage (LV)

High Efficiency, CRI 97

The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.

For further information on Fluxe 90 LV downlights please refer to the respective data sheet.

Fluxe 90 LV


Nein (*Note)
1-10V & Push (*Note)
DALI (*Note)
Triac (*Note)

Art.No. 805C03XX4K02 805C03XX4K02 805C03XX4K02 805C03XX4K02
Colour temperature 2700 K 3000 K 4000 K 1800 - 3000 K
UGR 23,1
Luminous flux 1150 lm 1250 lm 1350 lm 1250 lm
Lm/W (with EVG) 83 91
Type Incl. PSU
Input 220-240 V
Power 13,8 W
Protection class II
Pf 0,95

*Note: This table shows only the switchable 1150lm version with 24° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angles 60° and 80°.

For data sheets of the Fluxe 90 series downlights, see Download Tabs:

The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
