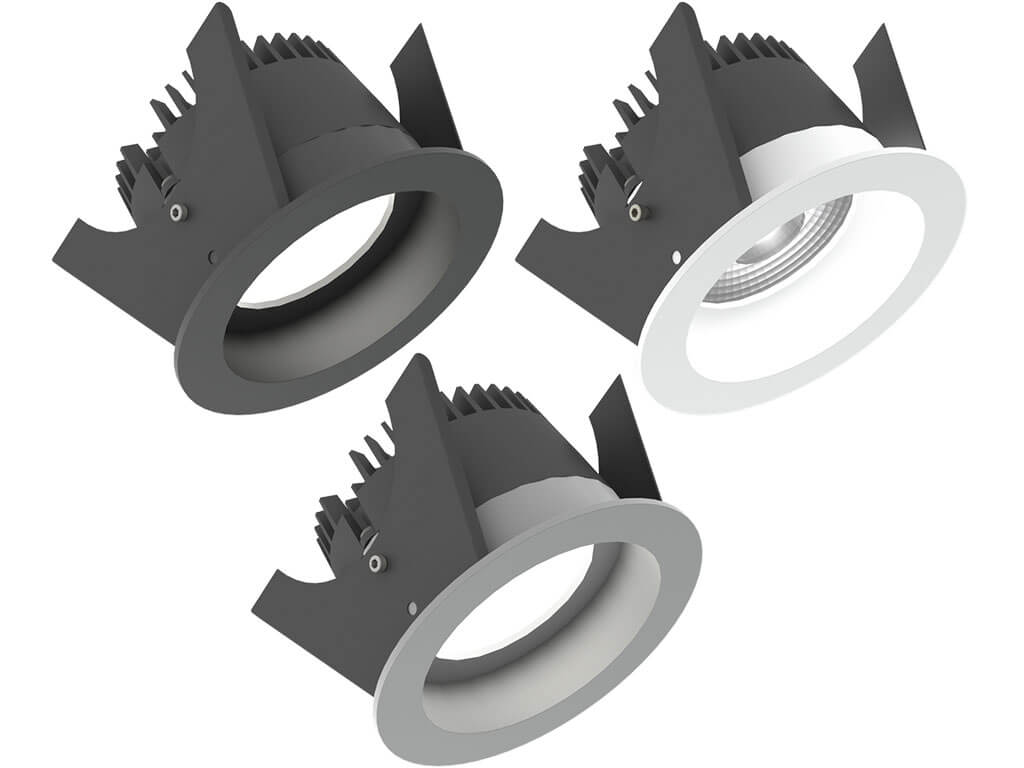

Illuxtron Fluxe 75 LV (Low Voltage) Downlight
The Fluxe downlights fall under the first luminaires from Illuxtron. Over the years the series was expanded and grew with new technologies and now consists of 5 luminaires with different hole sizes and specifications. The Fluxe 75 recessed downlights from Illuxtron are real powerhouses!
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
|Version||Power range ||Beam angle ||Special feature|
|HV-FD (High Voltage - Flimmerfree Dimmtechnology)||10,1-10,3 W||40° / 80°||directly connectable to 220-240V|
|HV-WD||11,2 W||80°||directly connectable to 220-240V, Power factor (>90)|

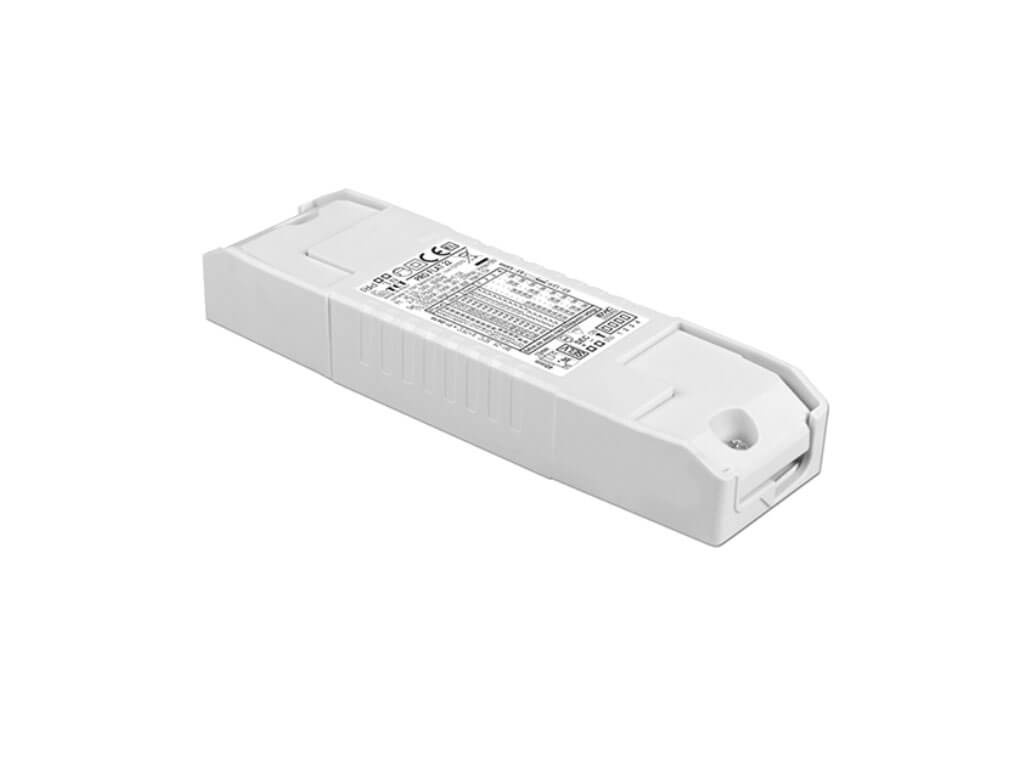

|LV (Low Voltage) This Version||13,8 W||24° / 60° / 80°||CRI-97 Standard, inc. PSU|
|LV-TW (Low Voltage- Tuneable White)||11,4 W||60° / 80°||Tuneable White Technology|
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Fluxe 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.
The most important technical details of the Fluxe 75 series:
|Housing colour|| |
matt white RAL 9016 (XX=MW)
|Material||Housing: Die-cast aluminium|
Reflector glass: Polycarbonate
|Dimensions||ø 90 mm|
|Required installation depth||> 62 mm|
|Ceiling cut-out|| |
75 mm: Use of ceiling springs.
|Colour Consistency (MacAdam)||SDCM3|
|IP Code||IP20 / IP44|
|Operating temperature (Ta)||-20°C / +45°C|
|Safety signs||EN60598 / EN62031 / EN62471|
Fluxe 75 Low Voltage (LV)
High Efficiency, CRI 97
The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
For further information on Fluxe 75 LV downlights please refer to the respective data sheet.
Fluxe 75 LV
|Colour temperature||2700 K||3000 K||4000 K||1800 - 3000 K|
|Luminous flux||1150 lm||1250 lm||1350 lm||1250 lm|
|Lm/W (with EVG)||83||91|
*Note: This table shows only the switchable 1150lm version with 24° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angles 60° and 80°.
For data sheets of the Fluxe 75 series downlights, see Download Tabs:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Lamp shape:||Recessed ceiling|
|Dimmable/Control:||1..10V, Casambi radio, DALI, Phase-Cut (Triac)|
