Linea 75 LV

Product information "Linea 75 LV"

Illuxtron Linea 75 LV (Low Voltage) Downlight

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

VersionPower rangeBeam angleSpecial feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology)10,1-10,3 W40° / 80°directly connectable to 220-240V
HV-WD11,2 W80°directly connectable to 220-240V, Power factor (>90)
LV (Low Voltage) This Version13,8 W24° / 60° / 80°CRI-97 Standard, inc. PSU
LV-TW (Low Voltage- Tuneable White)11,4 W60° / 80°Tuneable White Technology
Sensor6 / 7 W24° / 60°Sensor activated downlight

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Linea 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Linea 75 series:

Housing colour

matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)

MaterialHousing: Die-cast aluminium
Reflector glass: Polycarbonate

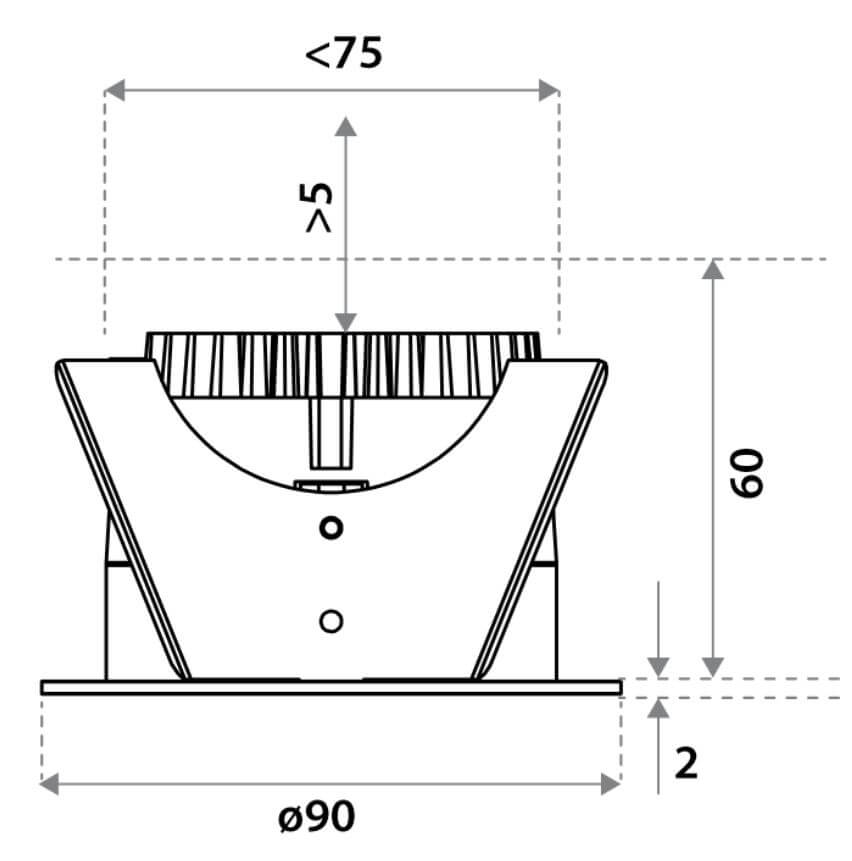

Dimensionsø 90 mm
Required installation depth> 65 mm
Ceiling cut-out

75 mm: Use of ceiling springs.

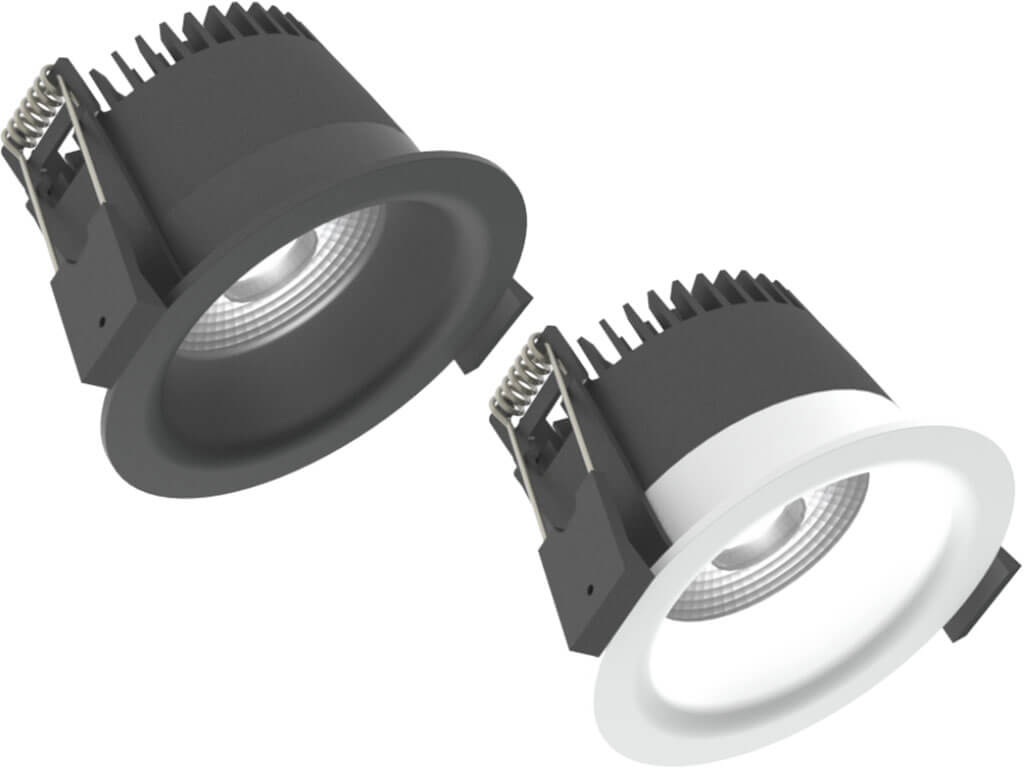

77 mm: Use of wire springs.

UsageIndoors
Colour Consistency (MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK03
Operating temperature (Ta)-20°C / +45°C
Lifetimeat 25°C
L70B50> 70.000 h
L80B50> 70.000 h
L90B50> 54.000 h
EMV-DirectiveEN55015
Guarantee7 years
Energy classA

Linea 75 Low Voltage (LV)

High Efficiency, CRI 97

The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.

For further information on Linea 75 LV downlights please refer to the respective data sheet.


Linea 75 LV

Dimmability

Casambi
Nein (*Note)
1-10V & Push (*Note)
DALI (*Note)
Triac (*Note)

Art.No.915A03XX4C02915A03XX4C02915A03XX4C02915A03XX4C02
Colour temperature2700 K3000 K4000 K1800 - 3000 K
UGR23,1
Luminous flux1150 lm1250 lm1350 lm1250 lm
Lm/W (with EVG)8391

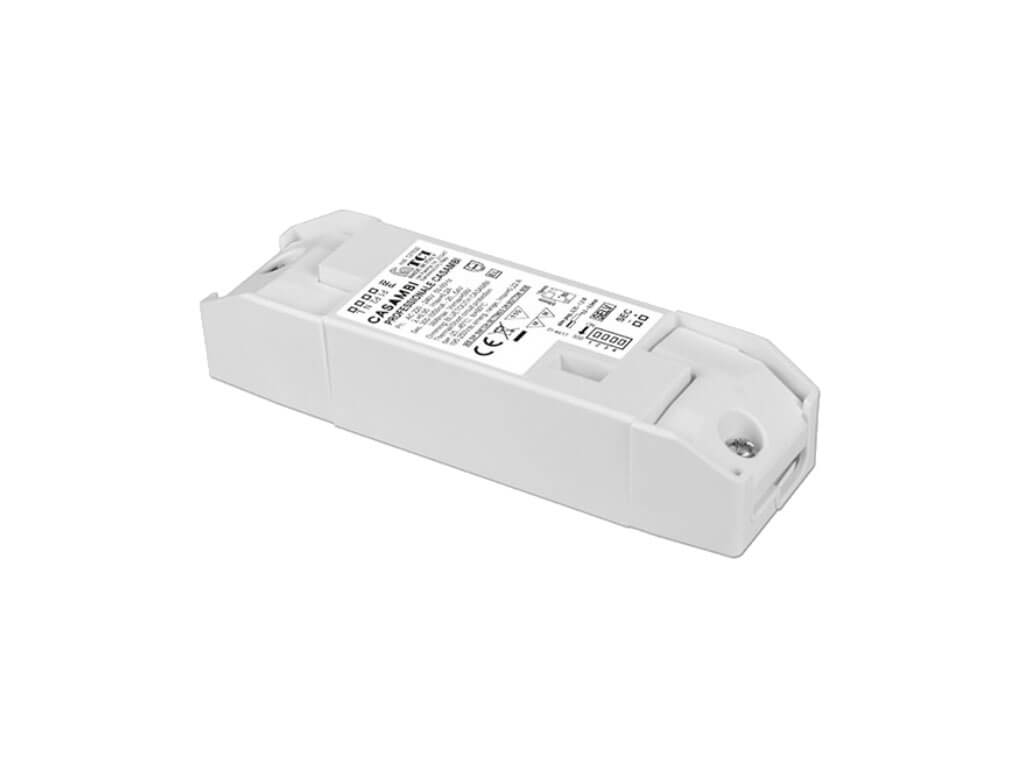

TypeIncl. PSU
Input220-240 V
Power13,8 W
Protection classII
Pf0,95

*Note: This table shows only the switchable 1150lm version with 24° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angles 60° and 80°.

For data sheets of the Linea 75 series downlights, see Download Tabs:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.

Properties "Linea 75 LV"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Dimmable/Control: 1..10V, Casambi radio, DALI, Phase-Cut (Triac)
·Hole diameter: 75mm
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Datasheet Illuxtron

Linea 75 LV

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

FAQ-Deckeneinbauspots

Similar Products

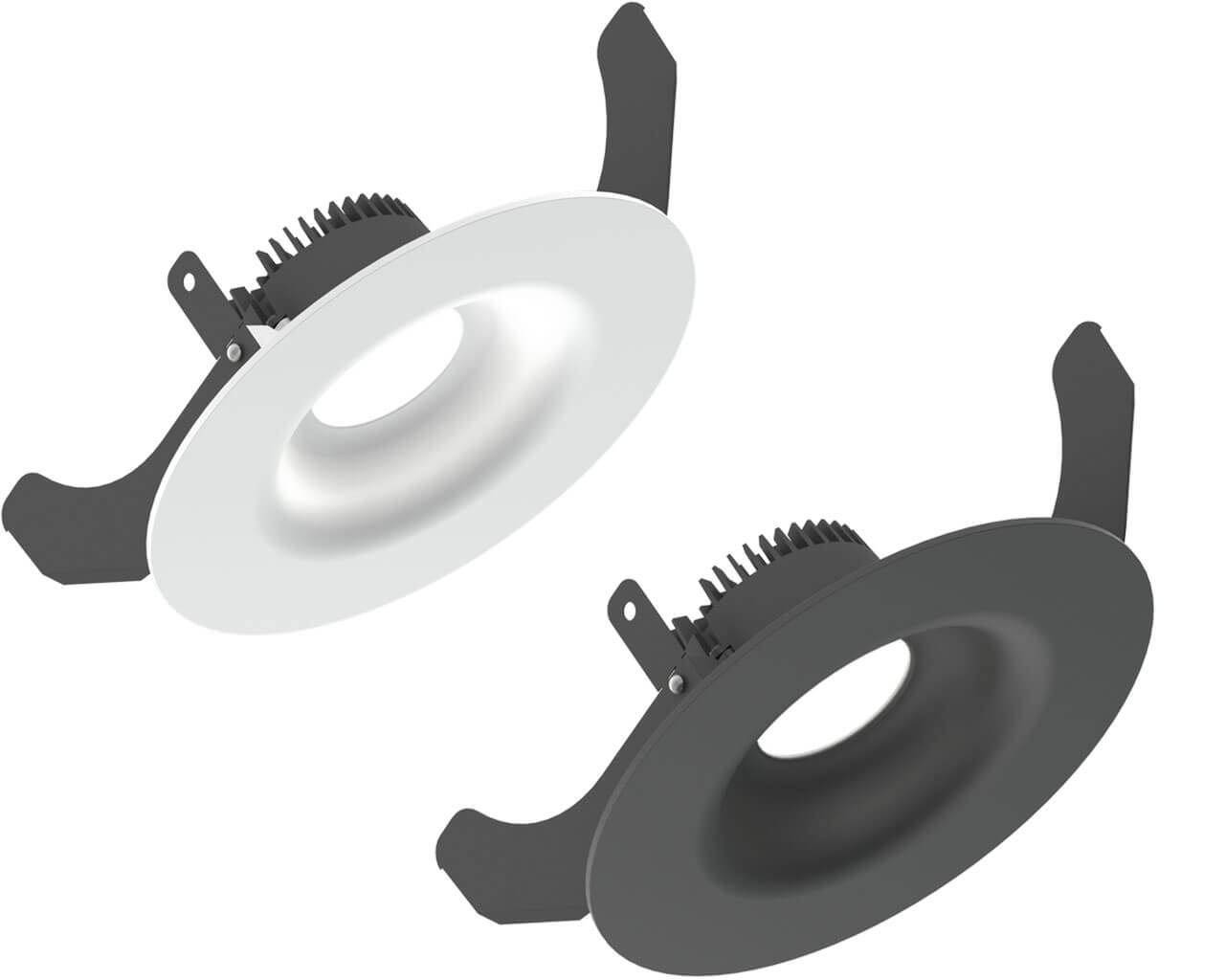

Linea 120 mit Gyproc Feder
