Recessed downlight sensor Strada 75

Product information "Recessed downlight sensor Strada 75"

Illuxtron Sensordownlight Strada 75

This 15.0W sensor downlight is available in 3000K as a switchable version. A choice of housing colors is available, with a housing diameter of 81mm.

New standards require new lighting solutions
Illuxtron's small recessed downlights with a hole size of 75 mm, bring light to life. All designs are available in different variations of bundle degrees, springs and optics. The LED-based lighting innovations are designed by Illuxtron's in-house R&D team and assembled in their local workshops. Only high quality components are used to produce unique combinations in quality and design with a 7-year warranty.

Complex software and Quad PIR sensor
Built into the built-in sensors is a complex software model that takes into account all these factors and guarantees that the sensor will work properly. The sensor, as well as the lenses, are manufactured by Murata Electronics, a world leader in the design, production and sales of high-quality electronic materials. The Quad sensor is used exclusively in areas where sensitivity and reliability play a major role.

Possible applications
An ideal place for these LEDs with integrated motion detector are smaller rooms that require a single light source, such as toilet areas or hallways. The operation of the LEDs is stand-alone and cannot be used with "master/slave" combinations.

The main technical details of the Sensor Strada 75 series:

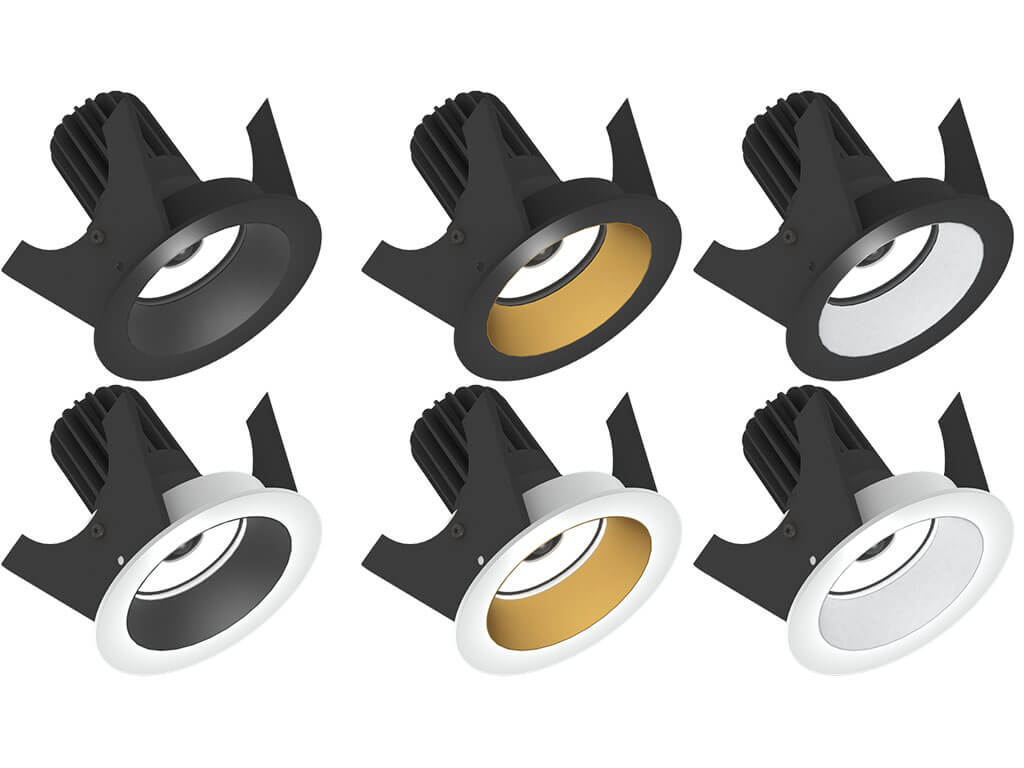

Housing colour  matt white RAL 9016 / gold (XX=61)
matt white RAL 9016 / silver (XX=63)
matt white RAL 9016 / white (XX=64)
matt white RAL 9016 / Black (XX=62)
matt black RAL 9005 / Gold (XX=71)
matt black RAL 9005 / Silver (XX=74)
matt black RAL 9005 / White (XX=75)
matt black RAL 9005 / Black (XX=72)
Material Casing: Die-cast aluminium
Reflector glass: Polycarbonate

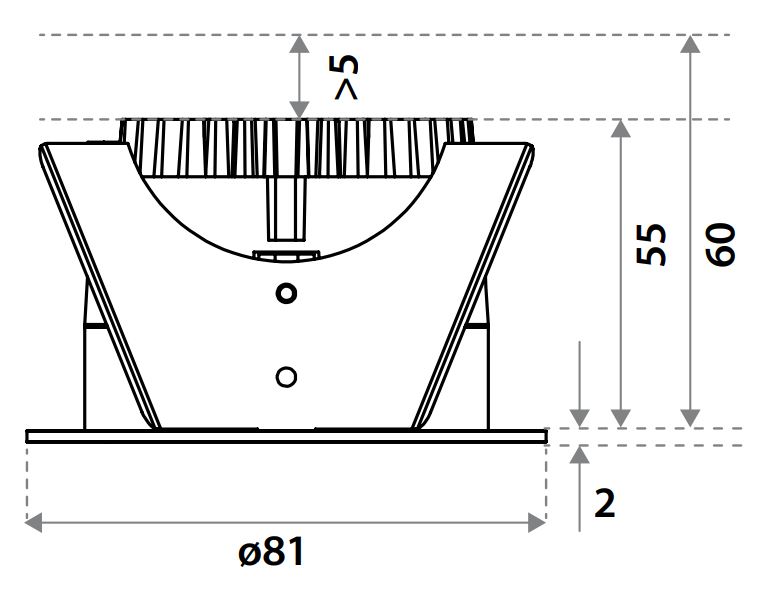

Dimensions ø 81 mm
Required installation depth > 65 mm
Application Inside area
Emitted beam angle (FWHM) 80°
UGR 25,9
CRI / Ra (typ.) 83
Colour consistency (MacAdam) SDCM3
IK Code IK03

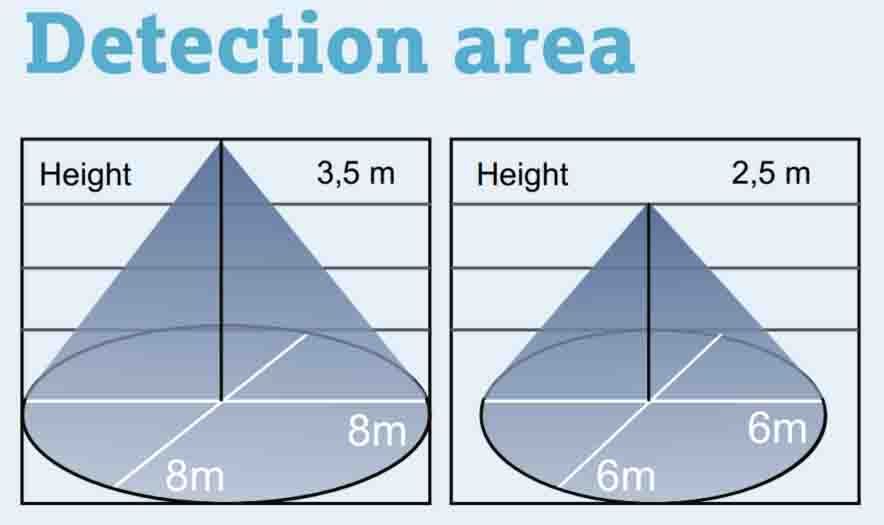

Detection range at 2.5 m Höhe 6 m x 6 m
Detection range at 3.5 m Höhe 8 m x 8 m
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 > 54.000 h
L80B50 > 54.000 h
L90B50 > 54.000 h
Safety sign EN60598 / EN62031 / EN62471
EMV Directive EN55015
Guarantee 7 years
Energy class A

Sensor Strada 75

Illuxtron Sensor Strada 75


A junction box is already available.

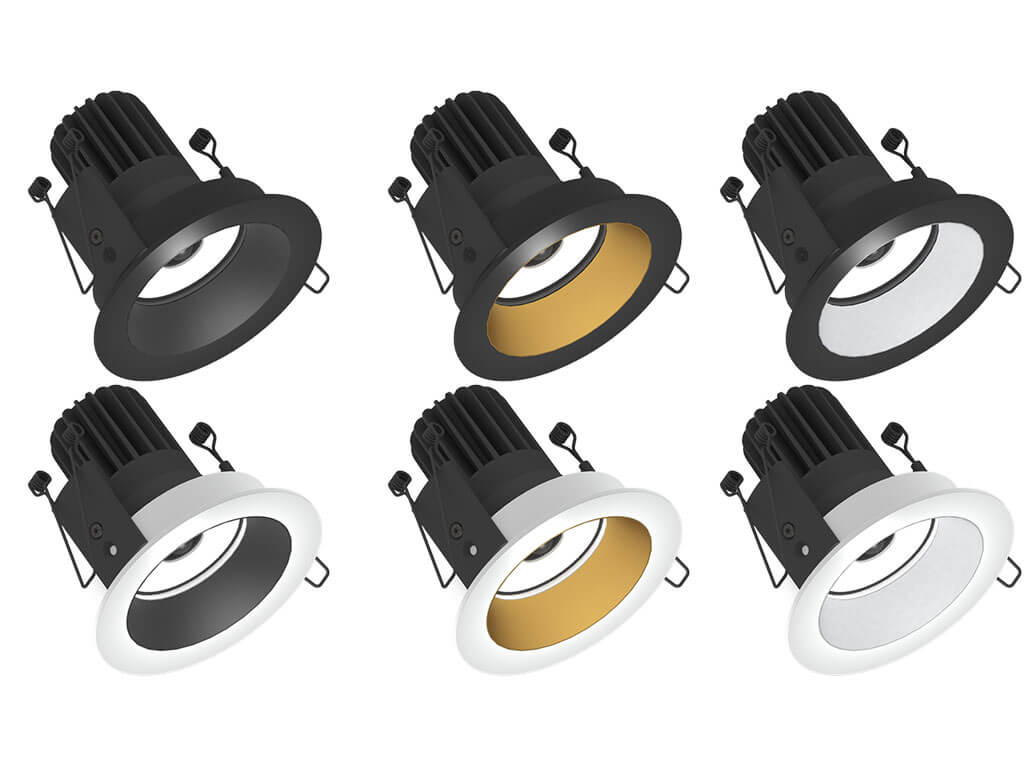

This version is available as switchable version, with different mounting options and different housing colors.

To Illuxtron connection cable.



Further information about Sensor Strada 75 please see data sheet.


Dimmability No
Article number 852S03XX5D02
Colour temperature 3000K
Beam angle 80 °
Luminous flux 600 lm
Lm/W (with EVG) 40
Type Inkl. Anschlussbox
Input 220-240 V
Power 15,0 W
Protection class I
Powerfactor 0,99
Weight 262 g


Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specifications. This also explains the longer delivery time of 1-3 weeks depending on the load.

Data sheets of the recessed downlights Sensor Strada 75 series see Download Tabs:

Properties "Recessed downlight sensor Strada 75"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 3000K
·Dimmable/Control: Sensor int.
·Hole diameter: 75mm
·Lamp shape: Recessed ceiling
·Power range: 5 - 20 W
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Data sheet

Data sheet Illuxtron Sensor Strada 75

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

FAQs rund um LED-Leuchten
Sammlung über häufig gestellte Fragen rund um LED-Leuchten (Nicht LED-Lampen)

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

It is a challenging topic. A basic distinction can be made between these types of LED luminaires:
  • designer luminaires (the eye pays the price regardless of the technical design)
  • luminaires with replaceable LED light sources (less sustainable)
  • luminaires with permanently integrated LED boards and their own LED driver (most sustainable solution with the best efficiency and flexible options for dimming via DALI, 1-10V, etc.)
  • technical luminaires with special lighting tasks such as LED downlights.

Colloquially, they are often equated with each other. However, lighting experts make a clear distinction between lamps and luminaires.

This also applies to LEDs. A lamp is the typical light source (e.g. a light bulb) that is screwed into the socket of a luminaire. That already explains it. Luminaire is the system consisting of lamp, base, lampshade, etc. LED luminaires are available with a replaceable LED light source (lamp) and with a permanently installed LED module. The advantages and disadvantages can be found in another FAQ.
