HLG320H power supply from Mean Well

Variants from 107.93€ *
Net price: 90.70€

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage:

Version:

  • HLG-320H-12-A
  • HLG-320H-12A
  • 1.88 kg
  • MEAN WELL
HLG320H-12/24 The Meanwell HLG-320H-12/24 LED switching power supply is suitable in... more

HLG320H-12/24

The Meanwell HLG-320H-12/24 LED switching power supply is suitable in execution, for instance -12A, carried on with 12V lamps, such as low-voltage LED spotlight MR16 / GU5.3 or MR11 and LED Stripes. The high power (right up to 320W), is compatible to many LED lamps that can be switched to a single transformer. This gives you cost savings!
With the HLG320H you have an high performance dust - and waterproof AC-to-DC LED power supply right up to 320W.

Even if you want to be active in outdoor areas, this device promise, with IP65, a high degree of protection. It is also possible to dim, via an additional input.  (Typ B)

HLG320H features (depends on type):

  • 7 Years warranty from Meanwell
  • Built-in active PFC function
  • Universal alternate current up to 305VAC
  • Protections: over -/laod, -/voltage, -/temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • Type H for use Class I Zone 2 (gases and vapors)
  • IP65/IP67 for indoor or outdoor installations
  • LED lighting especially street lighting applications
  • Compliance to worldwide safety regulations for lighting


Performance HLG320H Typ -12/24 A:

  • IP65 rated. Output voltage and and constant current level can
  • be adjusted through internal potential meter.
  • IP65 design for indoor or outdoor installations


Performance HLG320H Typ - 12/24 B:

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications



Technical data to Meanwell power supply HLG 320W:

Execution For LED and lighting applications
Model Switching power supply, Performance H
Input  90 - 305 VAC / 127 - 431 VDC 47 -63 Hz
Rated Power 264 - 321,3 W (voltage depending, see datasheet)
Surge solidity 4 kV
Output operating parameters  See data sheet
Design  HLG
Approbation  UL / EN Class C

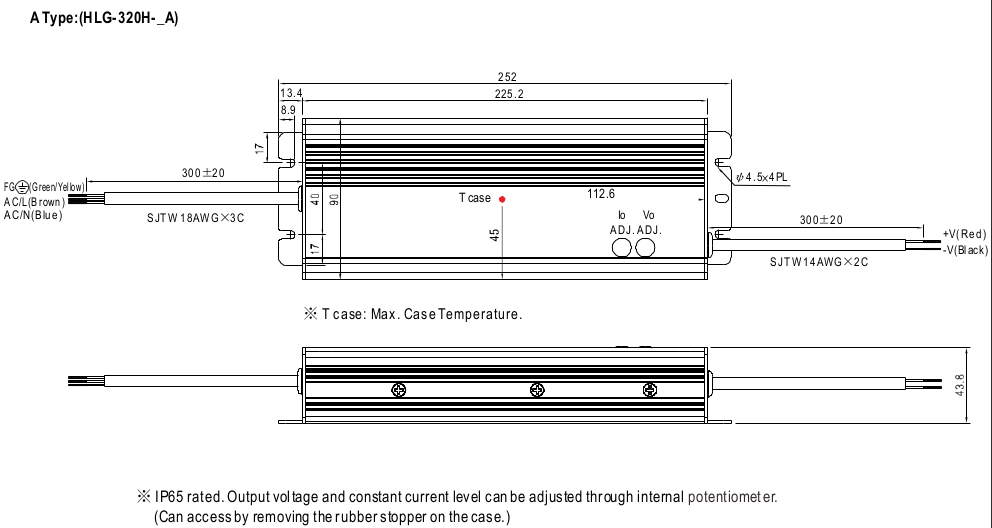

Dimension 252mm x 90mm x 43,8mm (H x W x D)

On request, we also offer type and voltage ranges.

Related links to "HLG320H power supply from Mean Well"
Meanwell HLG320H series LED power supply in metal housing with output voltages from 12V to 54V... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Power range: 100 - 250 W, 250 - 1000 W
Dimmable/Control: 1..10V, PWM
Application/IP-Code: IP65/67 (Outdoor)
Meanwell Series: HLG
#Kategoriefilter: LED-Trafos- alles mit CV
Datasheet(PDF) HLG320H
Meanwell Powersupply HLG320H
Meanwell Installation Manual
