An HLG600H-12/24 is a high performance dust - and waterproof AC-to-DC LED power supply up to 600W. The Meanwell HLG600H - LED switching power supply is suitable in execution, for example -12A, eminently suitable for operations with 12V lamps, in example to low-voltage LED spotlight MR16 / GU5.3 or MR11 and LED Stripes.
To save costs, you connect several LED lights on one transformer. This is only possible due to the high output of up to 600W. It is also possible to dim, via an additional input.
Due to high standards of protection is this device also ideally suited for outdoor use.
HLG600H features (depends on type):
- Seven Years warranty by Meanwell
- Built-in active PFC function
- IP65/IP67 for indoor or outdoor installations
- Protections: over -/laod, -/voltage, -/temperature
- Cooling by free air convection
- OCP point adjustable through output cable or internal potentiometer
- Three possibilities of dimming via 1-10 V, PWM or resistance
- Type H for use Class I Zone 2 (gases and vapors)
- Universal alternate current up to 305VAC
- LED lighting especially street lighting applications
- Compliance to worldwide safety regulations for lighting
Performance HLG600H Typ - 12/24 A:
- IP65 design for indoor or outdoor installations
- IP65 rated. Output voltage and and constant current level can
- be adjusted through internal potential meter.
Performance HLG600H Typ - 12/24 B:
- Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
- IP67 protection. For indoor -and outdoor applications
Technical data to Meanwell power supply HLG:
|Execution||For LED and lighting applications|
|Model||Switching power supply, Performance H|
|Input||90 - 305 VAC / 127 - 431 VDC 47 -63 Hz|
|Rated Power||480 - 604,8 W (voltage depending, see datasheet)|
|Surge solidity||4 kV|
|Output operating parameters||See data sheet|
|Approbation||UL / EN Class C|

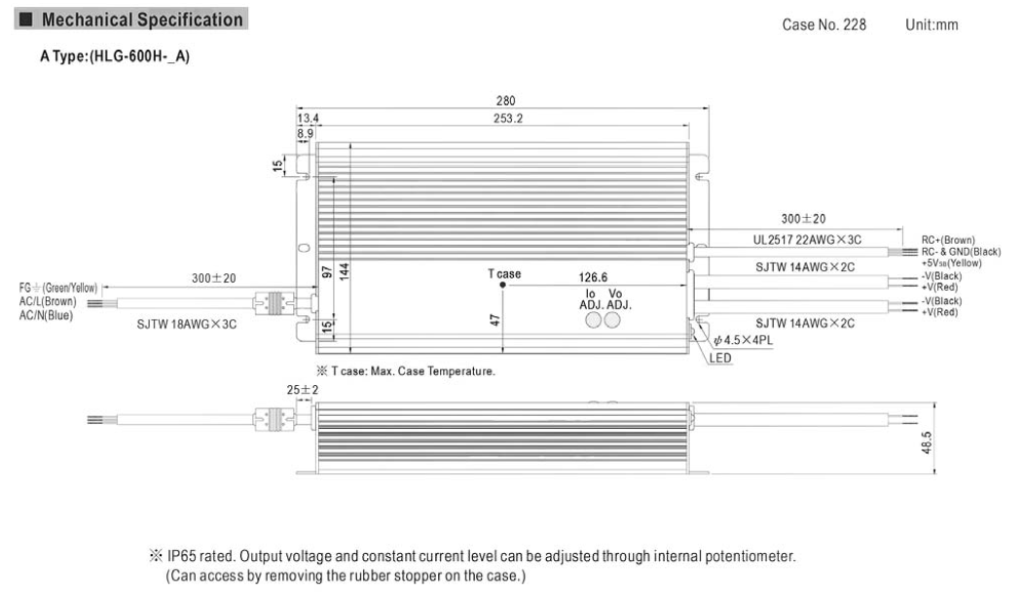

|Dimension||280mm x 144mm x 48,5mm (H x W x D)|
On request, we also offer the type C or other voltage ranges.
|Constant Voltage:||12V, 24V|
|Constant Current:||> 5A, 13A, 16A, 22A, 40A|
|Dimmable/Control:||Switchable On/off, 1..10V, PWM|
12V Ausführung mit 480W
HLG-600 mit 600W nur bei Spannung 24V. Wäre fast drauf reingefallen. deswegen ein Punkt weniger.
