LED Dimmer 4 Channels 0-10 V up to 72 W / channel

Product information "LED Dimmer 4 Channels 0-10 V up to 72 W / channel"

LED-Dimmer 4 Channels 0-10V - for constant voltage, PWM dimming

With this multi-channel LED dimmer, LEDs can be controlled, which are operated with constant voltage. It has 4 channels and achieves an output of up to 72W per channel in operation. There are also various control options, such as via control voltage or via potentiometer.

Overview:

  •  4 channel dimmer for LEDs for constant voltag
  • Controllable by:
    • Control voltage 1-10 V
    • Potentiometer 200 KO
    • Electronic potentiometer



Technical data:

Article number800598
TypeDU4P14-288
Input voltage12..24 Vdc
Output voltage12..24 Vdc
MMax. output power at 12 V4x 36 W
Max. output power at 24 V4x 72 W
PWM frequency1500 Hz
Ambient temperaturemax. 50 °C

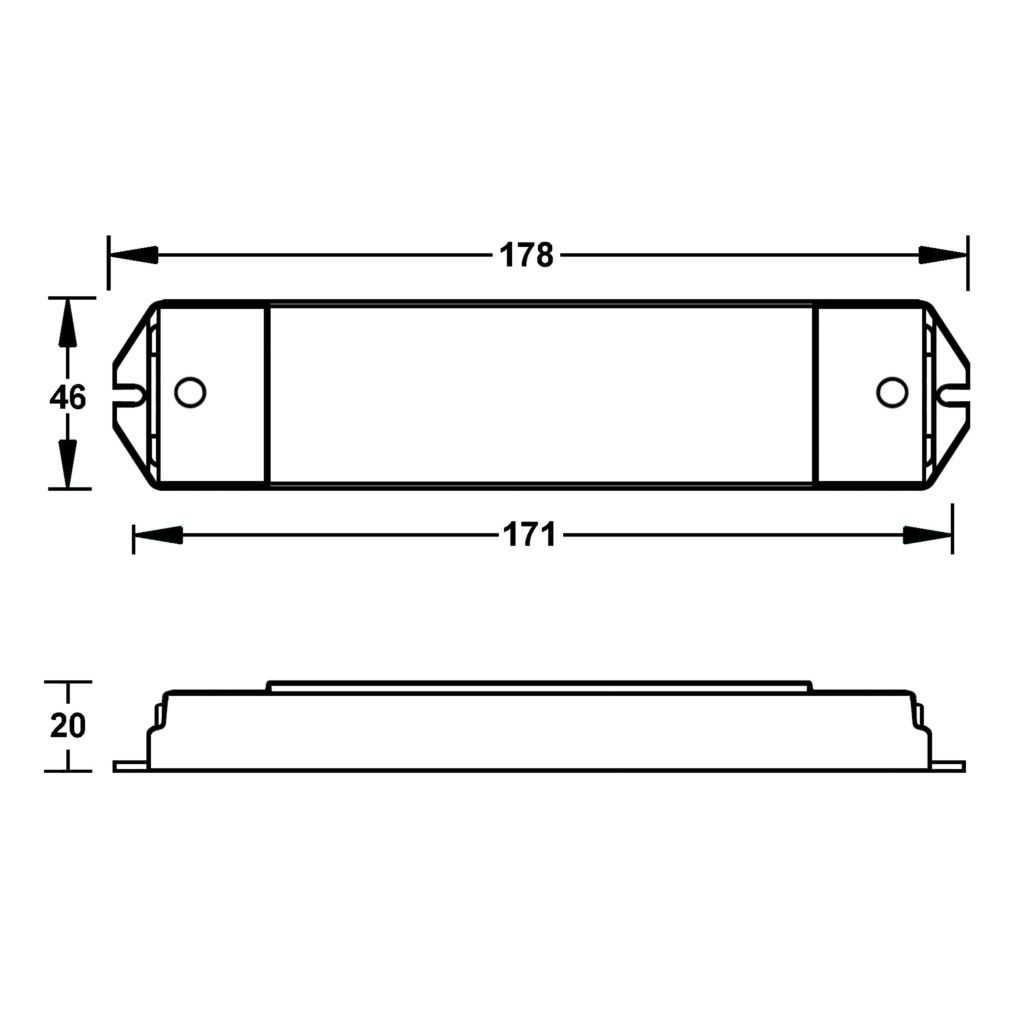

Dimensions178x46x20 mm

For further information please refer to the data sheet in the Download tab.

Properties "LED Dimmer 4 Channels 0-10 V up to 72 W / channel"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: RGBW/4-Ch
·Constant Voltage: 12V, 24V
·Dimmable/Control: 1..10V, PWM
Datasheet & further Infos about this product

Data sheet LED Dimmer

800598

Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH

specialises in lighting electrics and electronics and was founded over 60 years ago. With its own manufactured products, within the Arditi Group and an additional portfolio, it designs, manufactures and sells lighting components in the lighting industry. Especially in the field of smart home lighting as the largest European partner of CASAMBI. The product range consists of the following categories | Electrical engineering | LED components and CASAMBI lighting controls, it is broadly diversified and includes switches, dimmers, sockets, cables, transformers and accessories. In the field of LED technology, the company offers various forms of transformers, drivers/power supplies and LED power supplies.
For over 10 years we have been offering more than 100 products from the manufacturer Arditi worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the item you are looking for, or give us a call.



Arditi GmbH
Leischstraße 17 - 27432 Ebersdorf - Germany


E-Mail: info@arditi.de
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
