LED-Warrior14-01MOD

LED-Warrior14 IEC62386

From 17.85€ *
Net price: 15.39€

Prices incl. VAT plus shipping costs

Please select a variant first

versions:


piece

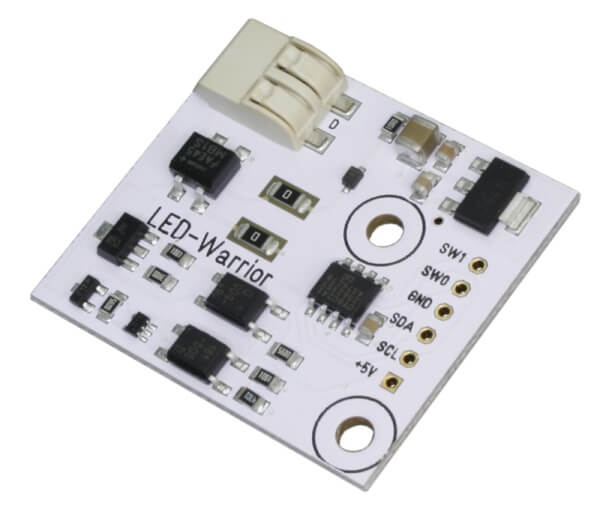

LED-Warrior14 -MOD The -01MOD is a ready to use module. It works as a I2C to IEC62386 bridge... more

LED-Warrior14 -MOD

The -01MOD is a ready to use module. It works as a I2C to IEC62386 bridge and needs a 5V power supply.

The -02MOD is a ready to use module for stand alone devices. It extracts its power supply from the IEC62386 bus and can provide some power for additional electronics like a RF receiver.

  • I2C to IEC62386 bridge
  • 4 I2C addresses programmable by jumper
  • I2C base address programmable by I2C
  • All 16 bit forward telegrams can be sent
  • 16 bit forward telegrams from other masters can be received
  • All 8 bit reverse telegrams can be received

Operating specification -01MOD

Supply Voltage (+5V relative to GND) 4.5V to 5.25V
Operating temperature -20°C to +65°C
IEC62386 input voltage (differential)  max. 24V
Supply current max. 25mA

Operating specification -02MOD

Supply Voltage Output (Vin relative to GND) 4.5V to 5.25V
Supply Output max. current 15 mA
Operating temperature -20°C to +65°C
IEC62386 input voltage (differential) max. 24V
IEC62386 bus current max. 25mA

LED-Warrior14U-DR

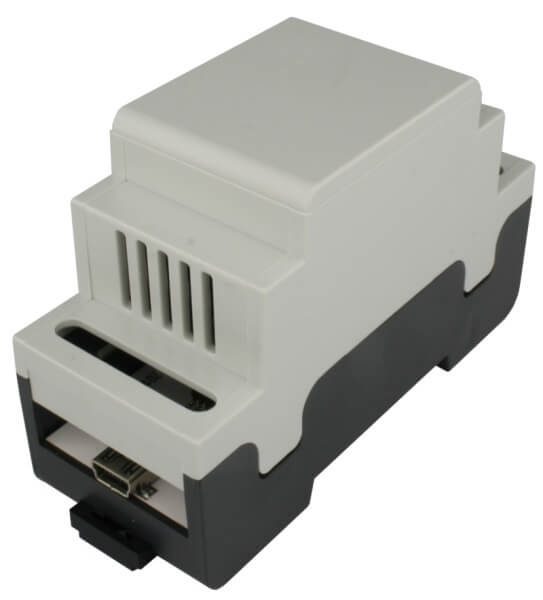

LED-Warrior14U-DR is a type II IEC62386 master. It can coexist with other masters on the same bus but is not addressable. LED-Warrior14U-DR supports transmission of 8 bit reply telegrams, all 16 and 24 bit forward telegrams and receives 8 bit reply telegrams as well as any 16 and 24 bit forward telegrams transmitted by other masters. This allows to control light levels, retrieve status information and set configuration data in IEC62386 devices.
  • USB to IEC62386 bridge
  • All 16 bit forward telegrams can be sent
  • 16 bit forward telegrams from other masters can be received
  • All 8 bit reverse telegrams can received
  • Power supply from USB
  • Galvanic isolation between USB an IEC62386 bus
  • Design for DIN rail
  • USB connection with IO-Warrior24
  • No driver installation required
Supply voltage (USB V + relative to GND) 4.5V to 5.25V
Operating temperature 0°C to +70°C
Supply current 30mA max.
IEC62386 input voltage (differential) max. 24V
IEC62386 input current max. 2mA

Take further data from our download-tab.

Related links to "LED-Warrior14 IEC62386"
The LED-Warrior14 is a module with IEC62386 and also available as a bridge more
Features of the product family. Details on variants can be found in the description.
Application: IP20 - IP44 (Indoor)
LED-Warrior14 Data sheet
LED-Warrior14U-DR Data sheet
LED-Warrior14U-DR manuell
