Quad 75 LV-TW

Variants from 192.78€ *
Net price: 162.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first


Beam angle:

Housing surface:

Mounting method:


  • IL1380-936A03BL4X02
  • 936A03BL4X02
  • 0.151 kg
  • 8716197185087
  • Illuxtron International BV
Illuxtron Quad 75 LV-TW (Tuneable White) Downlight Compact, technologically innovative and... more

Illuxtron Quad 75 LV-TW (Tuneable White) Downlight

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

Version Power range
Beam angle
Special feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology) 10,1-10,3 W 40° / 80° directly connectable to 220-240V
HV-WD 11,2 W 80° directly connectable to 220-240V, Power factor (>90)
LV (Low Voltage) 13,8 W 24° / 60° / 80° CRI-97 Standard, inc. PSU
LV-TW (Low Voltage- Tuneable White) This Version 11,4 W 60° / 80° Tuneable White Technology

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Quad 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Quad 75 series:

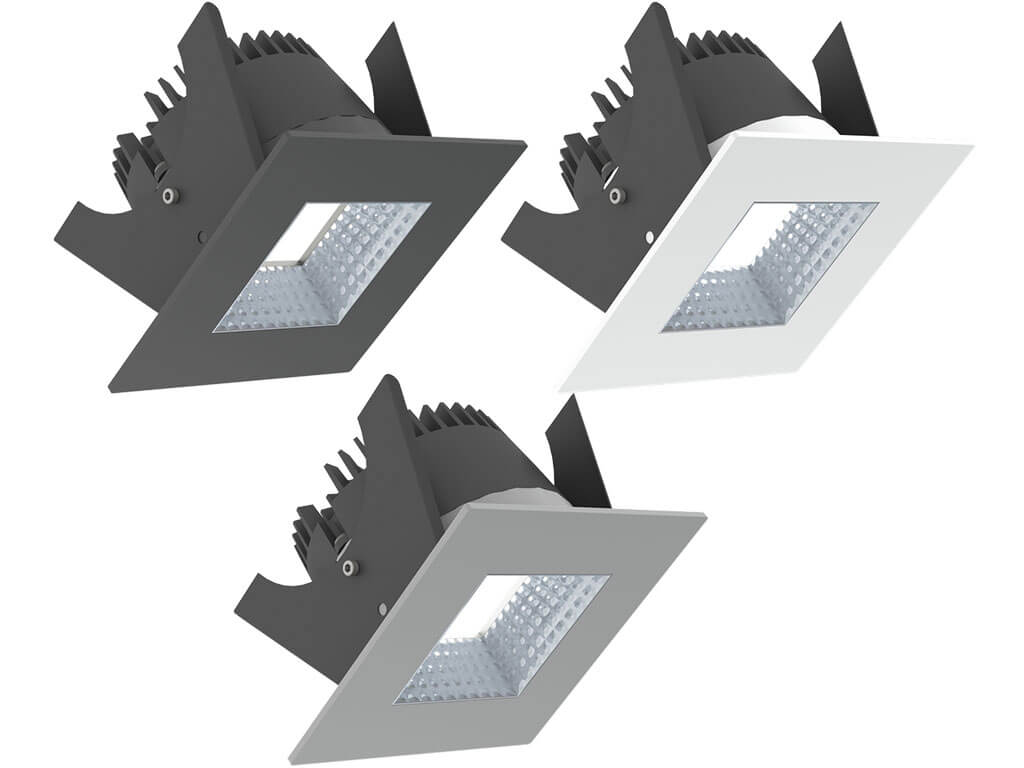

Housing colour

matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)
matt grey RAL 9006 (XX=GR)

Material Housing: Die-cast aluminium
Reflector glass: Polycarbonate
Dimensions ø 90 mm
Required installation depth > 65 mm
Ceiling cut-out

75 mm: Use of ceiling springs.

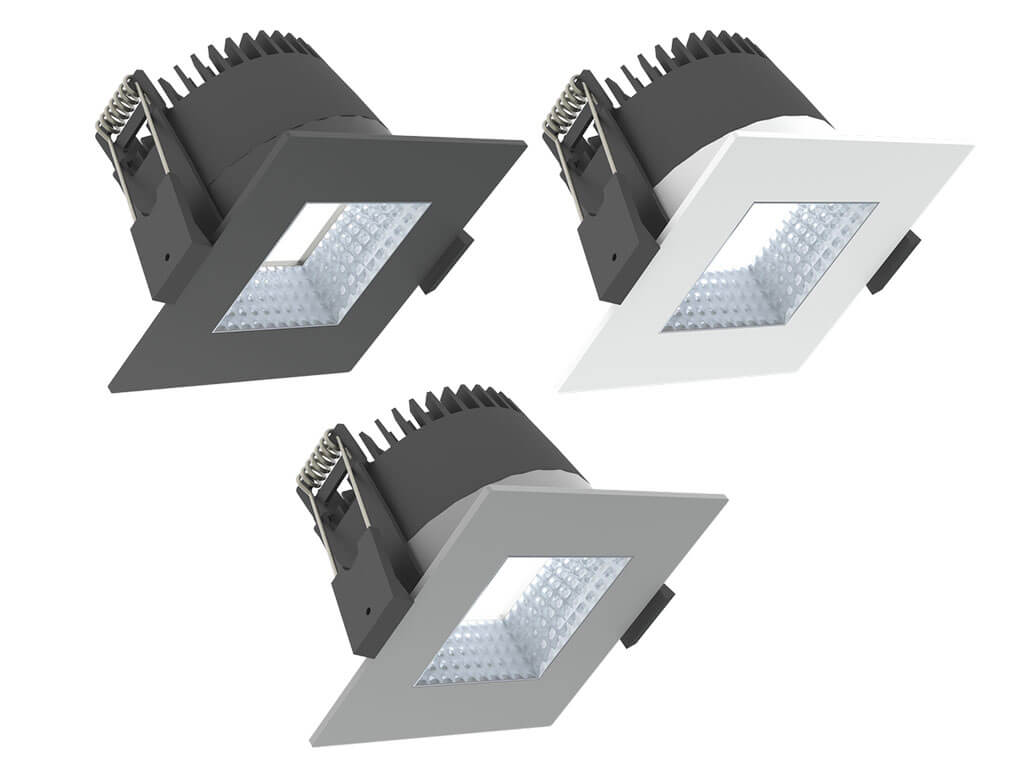

77 mm: Use of wire springs.

Usage Indoors
Colour Consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 > 70.000 h
L80B50 > 69.000 h
L90B50 > 36.000 h
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A

Quad 75 Low Voltage –Tuneable White Technology (TW)

Human Centric Lightning (HCL) high-end lighting design solution

The natural light changes its colour during the course of the day from the morning glow of the sunrise to the bright midday sun, to a deep, warm sunset. We have the technology to adjust the colour temperature of the artificial light in our homes.

The human biological clock is closely linked to the day-night cycle of the earth's circadian rhythm and is central to the release of various hormones, such as melatonin, which regulates sleep, and cortisol, which is necessary for healing. We know that light has a significant impact on the human biological clock and our health.

As much as technology can help us, it can also throw our natural biological clock out of balance. We get too little of the right type of light during the day and too much of the wrong type at night. Televisions, LED lights, computer screens and mobile devices that emit blue (cold) light can disrupt our biological clock and shift our natural sleep rhythm.

An HCL (Human Centric Lighting System) can also change artificial light. If we need to be more concentrated or attentive, we can adjust the colour temperature to a cool light. If we want to relax or create a more relaxing environment, we can adjust the colour temperature to provide warmer light.

Lighting and control technologies have achieved a high degree of user-friendliness. Through careful consideration and expert advice, light can be more organic and can be better integrated into this intelligent home technology to provide greater comfort.

For further information on Quad 75 LV-TW downlights, please refer to the respective data sheet.

Quad 75 LV-TW

Dimmability DALI Casambi
Art.No. 936A03XX4W02 936A03XX4X02
Colour temperature 2700 -6500 K
UGR 21,2
Luminous flux 1250 lm
Lm/W (with EVG) 110
Type Incl. PSU
Input 220-240 V
Power 11,4 W
Protection class I
Pf 0,91

*Note: This table shows only the version with 60° beam angle. This downlight is also available with different mounting options and the 80° beam angle.

For data sheets of the Quad 75 series downlights, see Download tab:

The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilisation.
