Sensordownlight Sensor Linea 75

A++ to A
From 89.25€ *
Net price: 75.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Surface:

color temperature:

Beam angle:

Ballast:

Mounting method:


Stck

  • 4687-917203MW0702
  • 917203MW0702
  • 0.303 kg
  • 8716197007952
  • Illuxtron International BV
Illuxtron Sensor Linea 75 Downlight These sensor activated recessed floodlights are available in... more

Illuxtron Sensor Linea 75 Downlight

These sensor activated recessed floodlights are available in 2700 - 4000K as stepdimming version and in 3000K / 4000K as switchable version. A choice of housing colours is available, with dimensions of 90 mm x 82 mm. Power rating is 7.0W or 8.0W depending on PSU selection (24 Vdc SELV/220 - 240 V).
What makes these LED downlights so special are the reflectors with microfacets. These microfacets of the sensor series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - Reflectors

  • High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
  • low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of LED light spectra for very good colour rendering
Complex software and Quad PIR Sensor
The built-in sensors incorporate a complex software model that takes all these factors into account and guarantees that the sensor functions correctly. The sensor and lenses are manufactured by Murata Electronics, a global leader in the design, manufacture and distribution of high-quality electronic materials. The Quad sensor is used exclusively in areas where sensitivity and reliability are critical.

Application possibilities
An ideal location for these LEDs with integrated motion detectors are smaller rooms that require a single light source, such as toilet areas or corridors. The LEDs operate independently and cannot be used with "master/slave" combinations.

You can find more detailed details of these technical features here.

The most important technical details of the Sensor Linea 75 series:
Casing color mat white RAL 9016 (XX=MW)
matt black RAL 9005 / gold (XX=BL)
Material Housing: die-cast aluminium
Reflector glass: Polycarbonate
Dimensions 90 mm x 82 mm
Hole diameter 75 mm
Required installation depth 90 mm
Application Inside area
Emitted beam angle (FWHM) 24° 60°
UGR 17,1 23,4
CRI / Ra (typ.) 83
Colour consistency (MacAdam) SDCM3
IP Code IP20
IK Code IK03

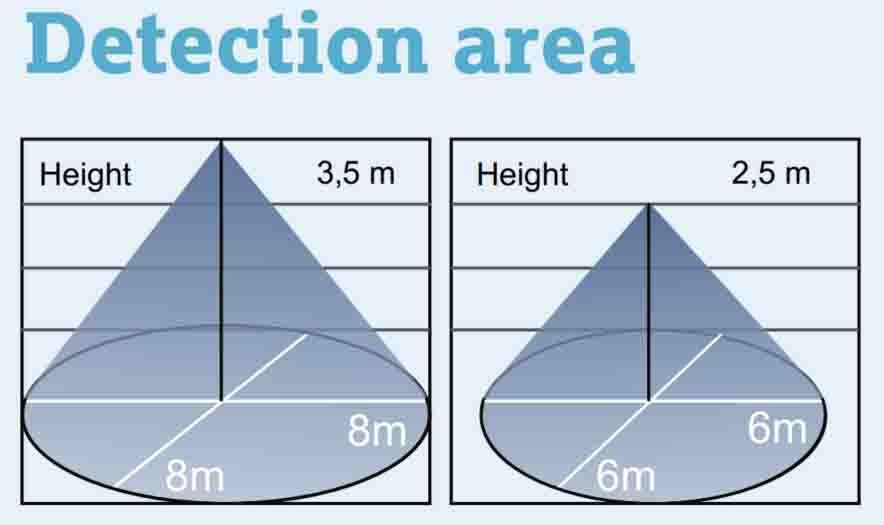

detection range at 2.5 m altitude 6 m x 6 m
detection range at 3.5 m altitude 8 m x 8 m
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 282.168 h
L80B50 178.352 h
L90B50 87.206 h
Safety sign EN60598 / EN62031 / EN62471
EMV Directive EN55015
Guarantee 7 years
Energy class A


Sensor Linea 75

Sensor Linea 75
Depending on the version, an external 24V power supply with connecting cable is required.
You can order these additionally:
- To the overview matching 24V constant voltage sources.
- To the overview matching 24V accessory cable.

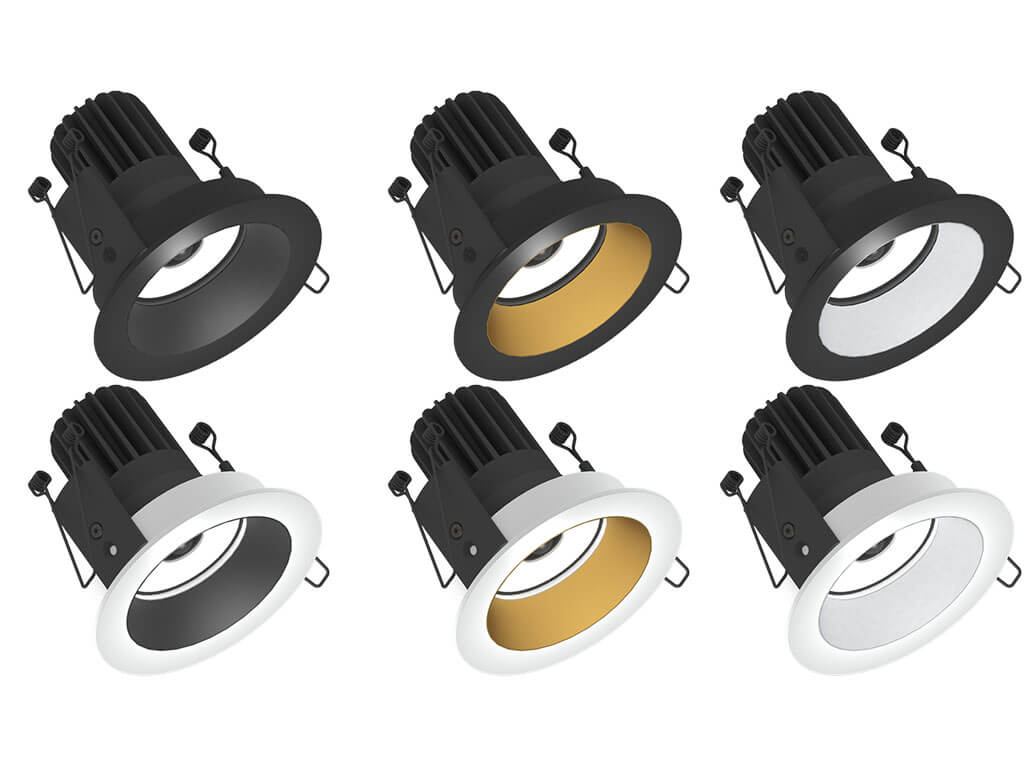

This version is available in a switchable version and as a stepdimming version. You can choose between concrete springs, Gyproc springs or wire springs. It is also available with a beam angle of 24 ° or 60 °.

Further information about Sensor Linea 75 Downlights can be found in the data sheet.

Dimmability No Stepdimming
Article number 917203XX8702 917203XX8721 917203XX8714 917203XX9702 917203XX9721 917203XX9714 917203XX0702 917203XX0721 917203XX0714
Colour temperature 3000K 4000K 2700 - 4000K
Luminous flux 600 lm
Lm/W (with ECG) 86 75 86 75 86 75
Type excl. PSU + without connection cable excl. PSU incl. PSU excl. PSU + without connection cable excl. PSU incl. PSU excl. PSU + without connection cable excl. PSU incl. PSU
Input 24 Vdc SELV 220 - 240 V 24 Vdc SELV 220 - 240 V 24 Vdc SELV 220 - 240 V
Power 7,0 W 8,0 W 7,0 W 8,0 W 7,0 W 8,0 W
Protection class III II III II III II
Note: The data of the article numbers shown in the table show products with concrete springs (fixing method) and a beam angle of 24 °. Articles with wire spring and Gyproc springs (fixing method) and / or beam angle of 60 °/ 24 ° have the same data.

Data sheets of the downlights Sensor Linea 75-series see download tab.

Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
Related links to "Sensordownlight Sensor Linea 75"
Elegant sensor-activated 7.0W/8.0W LED downlights from Illuxtron. Housing dimensions 90 mm x 82... more
Features of the product family. Details on variants can be found in the description.
Application: Indoor
Constant Current: 350mA
Power: 9W
Hole diameter: 75mm
Dimmable/Control: Push-Button, Switchable On/off
Color Temperature/Color: 3000K, 4000K, Tuneable White
