Product information "TRELIGHT Vega Bridge WLAN-LAN"

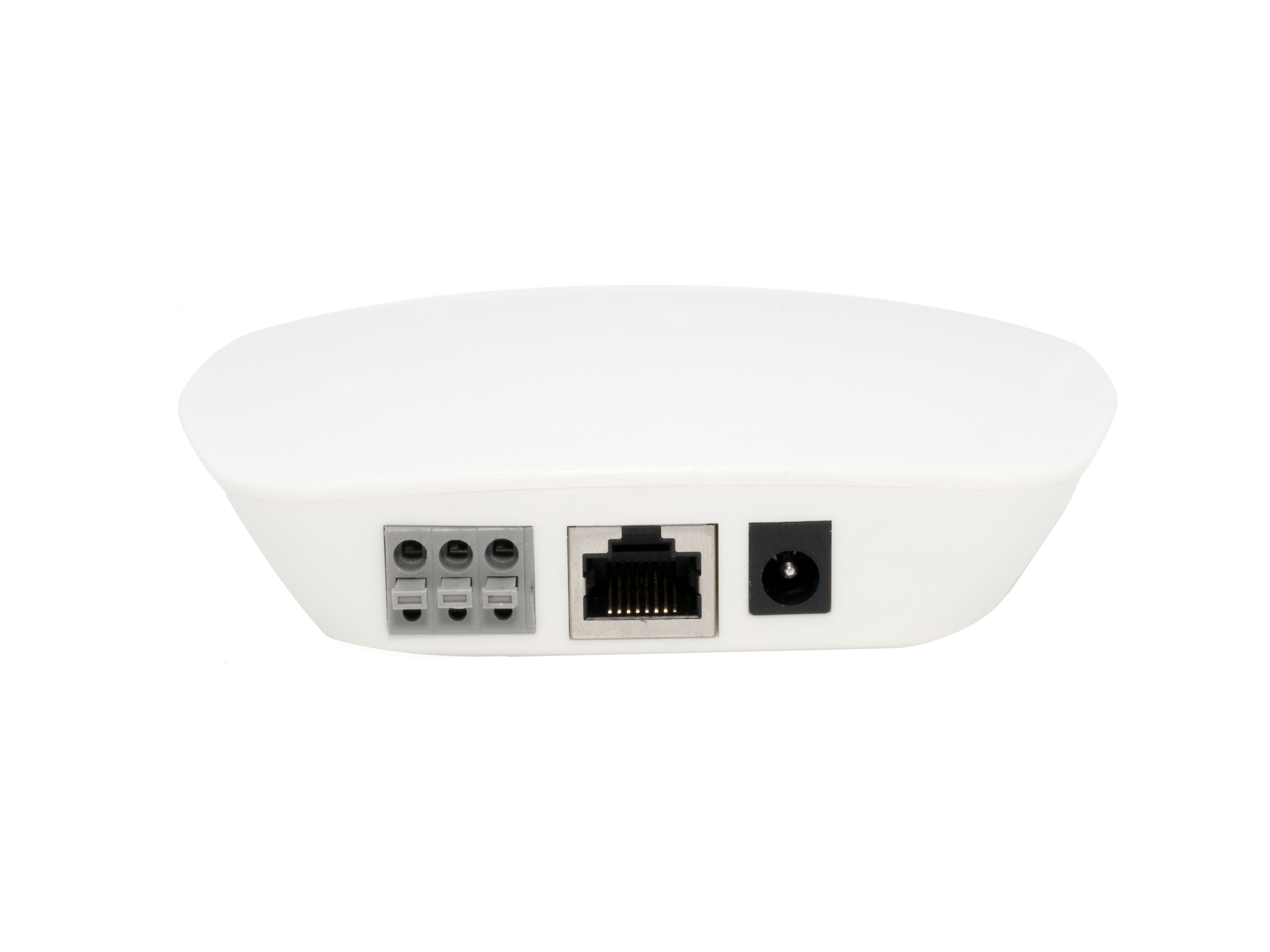

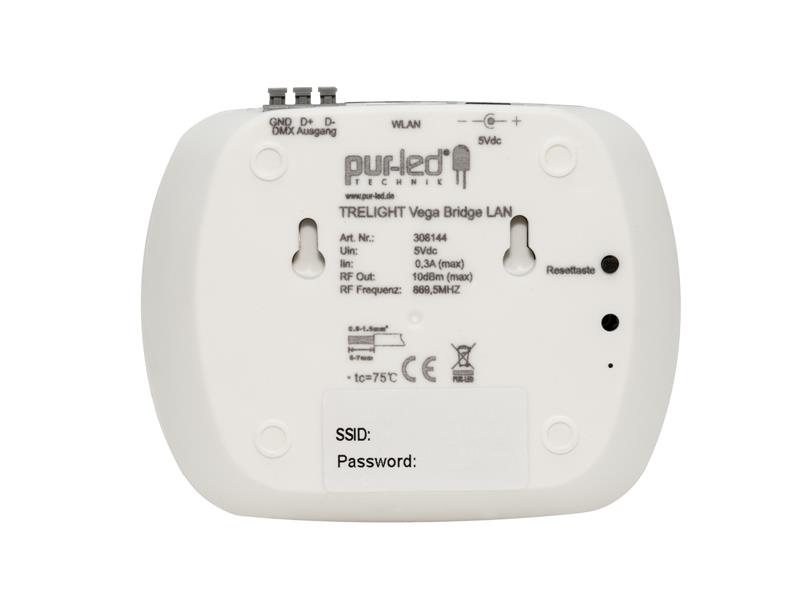

TRELIGHT Vega Bridge to control the TRELIGHT Vega Series

Implement modern lighting control via radio and APP via Wifi/WLAN

Control your home with your smartphone / tablet / wall control / remote control / wall button comfortably in up to 8 zones.
The easy way to smart lighting control: the TRELIGHT Vega series. Control your LED light sources with remote control, wall controls, and more with your smartphone or tablet. This multifunctional combinable system fulfils almost every wish. Optionally integrate your lighting technology into your own WLAN network and enjoy the full comfort of modern lighting technology.

The TRELIGHT Pro Wireless Controller RGB(W) / Dual White forms the basic component of this smart lighting control system. Now a multitude of control options opens up:
1. Radio (TRELIGHT Pro Memory Line + Pro Multicomfort remote control, TRELIGHT Vega wall control RGB(W) or dual white)
2. Wifi (TRELIGHT Vega Bridge) with your Smartphone or Tablet
3. or you simply combine these two possibilities as a complete System

Overview TRELIGHT Vega Serie

 Controller     connection   operation via
RGBW Wireless Controller 4x 5A
RGBW Wireless Controller 4x 8A
RGBW Wireless Controller 4x 5A DIN Rail
RGB-Dual LED Controller 12-36Vdc/5x8A
 TRELIGHT Radio

radio remote control 1 Zone
radio remote control 5 zones
RGB-Dual LED remote control with 4 zones
RGBW Remote Control Pro Memory Line
RGBW wireless wall controll


optional via:
WLAN Bridge

Tablet or smartphone via router

For your iPhone, iPad, iPod or Android check the App/Play Store:

  • EasyLighting EasyLife

Technical data TRELIGHT Vega Bridge:

Input voltage5 Vdc
OutputsWLAN, LAN(RJ45), DMX512
Operating temperature-10° C to +60° C
Storage temperature-20° C to +70° C
Dimensions (L x W x H) in mm110 x 90 x 23

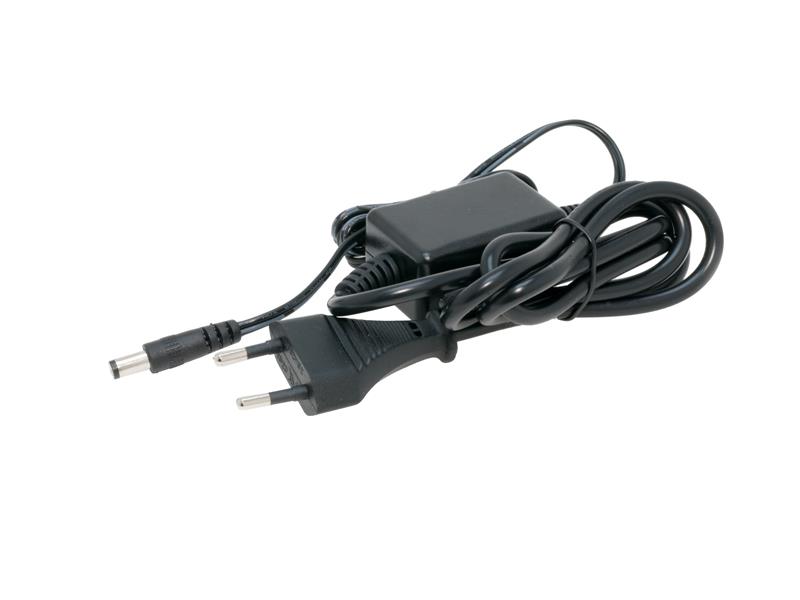

Technical data power supply:

Input voltage100-240Vac at 50-60Hz
Output voltage5Vdc
Output current1.2A max. at 5Vdc
Power6 Watt max.
Housing colourBlack
Cable routing VdcDouble wire 2x0,5mm2 ca. 1,0m
Plug Vdc5,5/2,1mm hollow plug
Cable routing VacRound cable sheathed double wire 2x0,5mm2 ca. 1,0m
Plug VacEuro flat plug
Operating temperature0°C to 40°C
ProtectionOvervoltage, short-circuit and overload
Dimensions (LxWxH) in mmca. 50 x 32 x 24
Delivery scopePUR-LED® TRELIGHT Vega Bridge with WLAN, LAN connection and DMX output
incl. power supply 5Vdc

This device must be installed by an electrician!

For further information please refer to the data sheet in the Download tab.

Properties "TRELIGHT Vega Bridge WLAN-LAN"
·Dimmable/Control: DMX, TRELIGHT wireless
·Constant Voltage: 5V
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

Data sheet Trelight Vega

Only available in German!

Quick Start Guide
