Vector 145

A++ to A
From 172.84€ *
Net price: 149.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Dimmable:

Angle of radiation:

Surface:

color temperature:


Stck

  • IL1387-7D1B0372D102
  • 7D1B0372D102
  • 1.2 kg
  • 8716197280041
  • Illuxtron International BV
Illuxtron Vector 145 Downlight These spotlights are available in 2700K, 3000K and 4000K. A... more

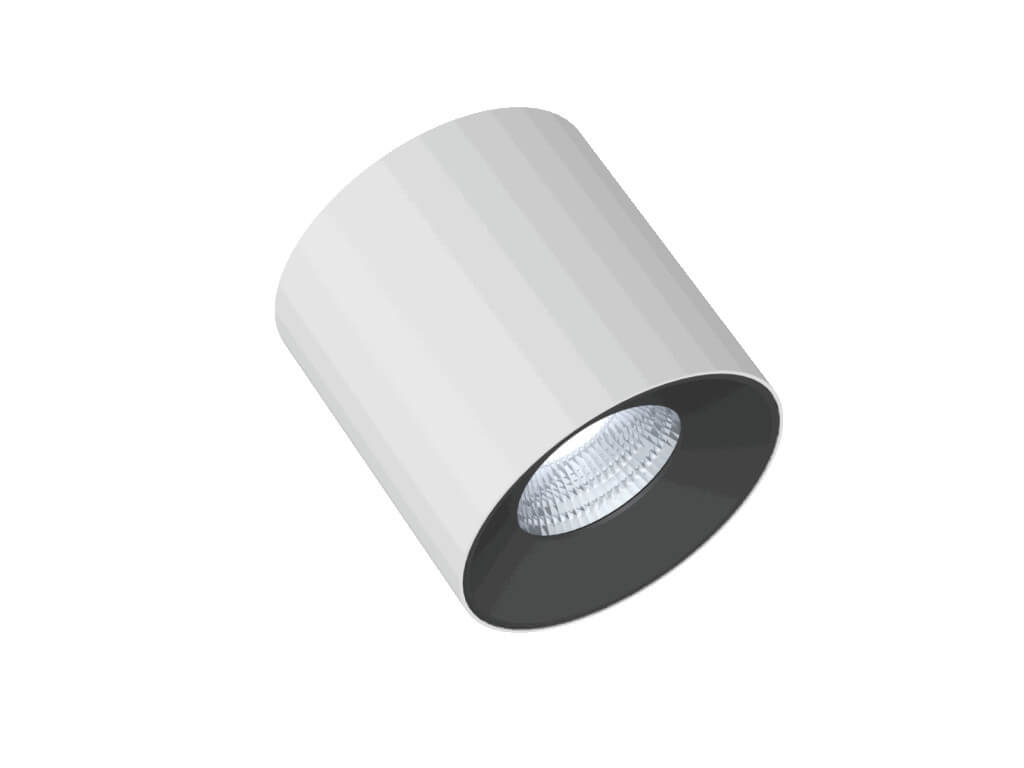

Illuxtron Vector 145 Downlight

These spotlights are available in 2700K, 3000K and 4000K. A selection of housing colours is available.

What makes these LED downlights so special are the reflectors with micro facets. These micro facets of the Sensor series provide perfect illumination of objects and rooms.
The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good color rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Vector 145 series:

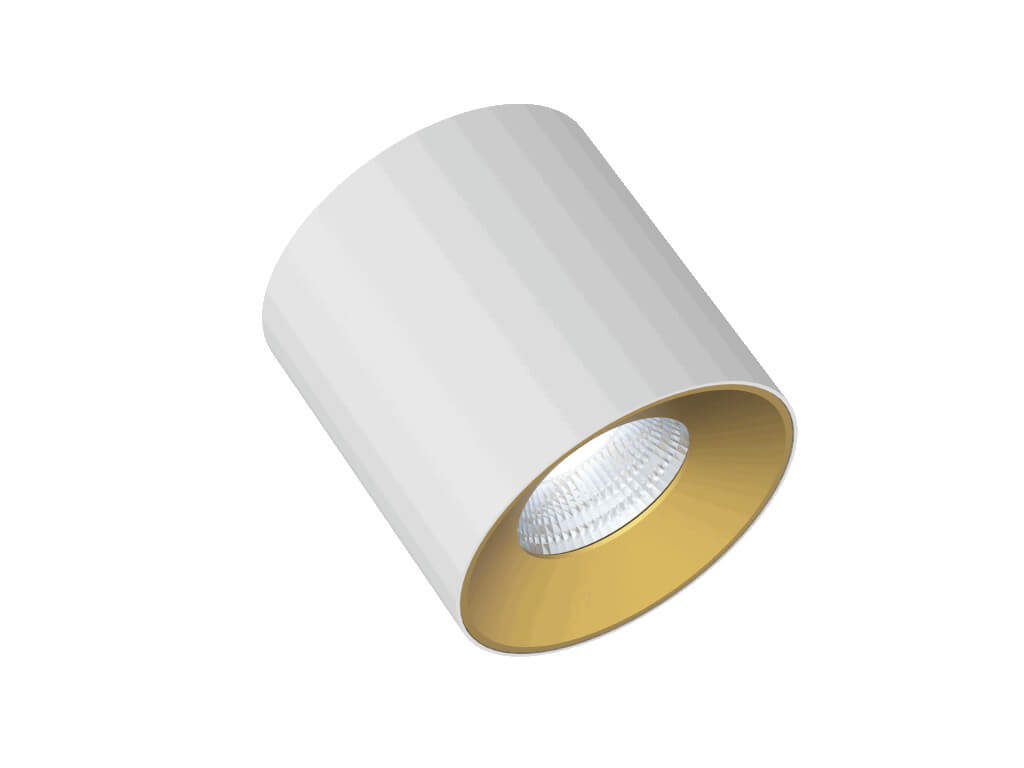

Housing colour / reflector ring matt white RAL9016 / Gold (XX=61)

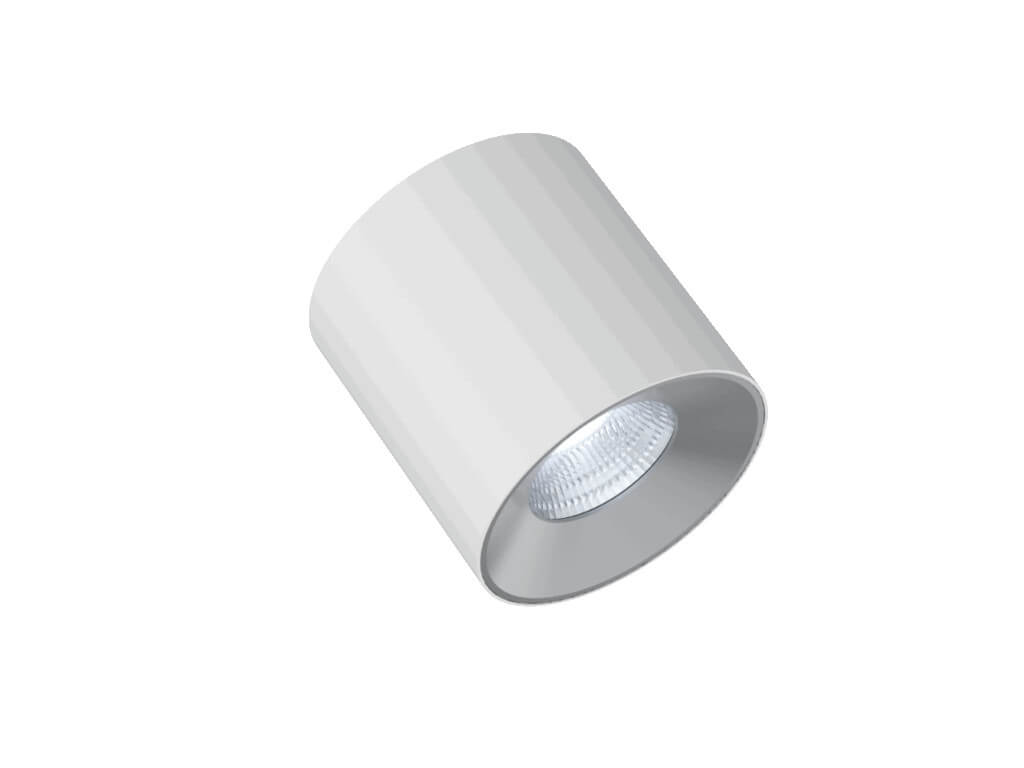

matt white RAL9016 / Silver (XX=63)

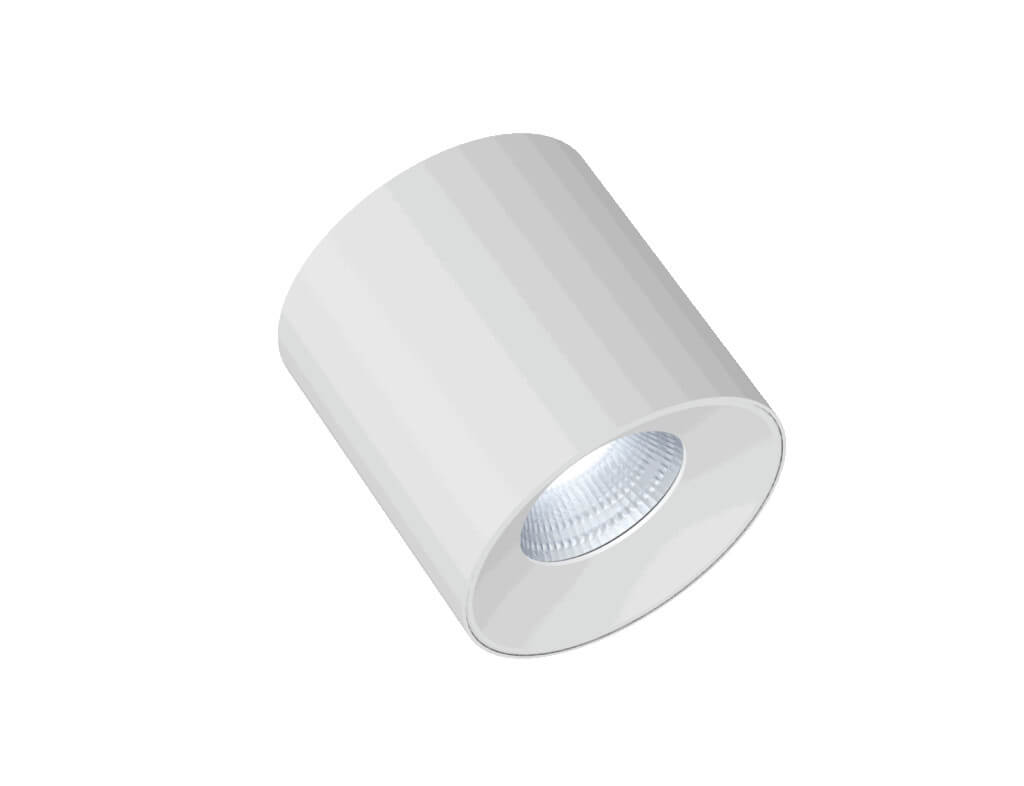

matt white RAL9016 / White (XX=64)
matt white RAL9016 / Black (XX=62)
matt black RAL9005 / Gold (XX=71)

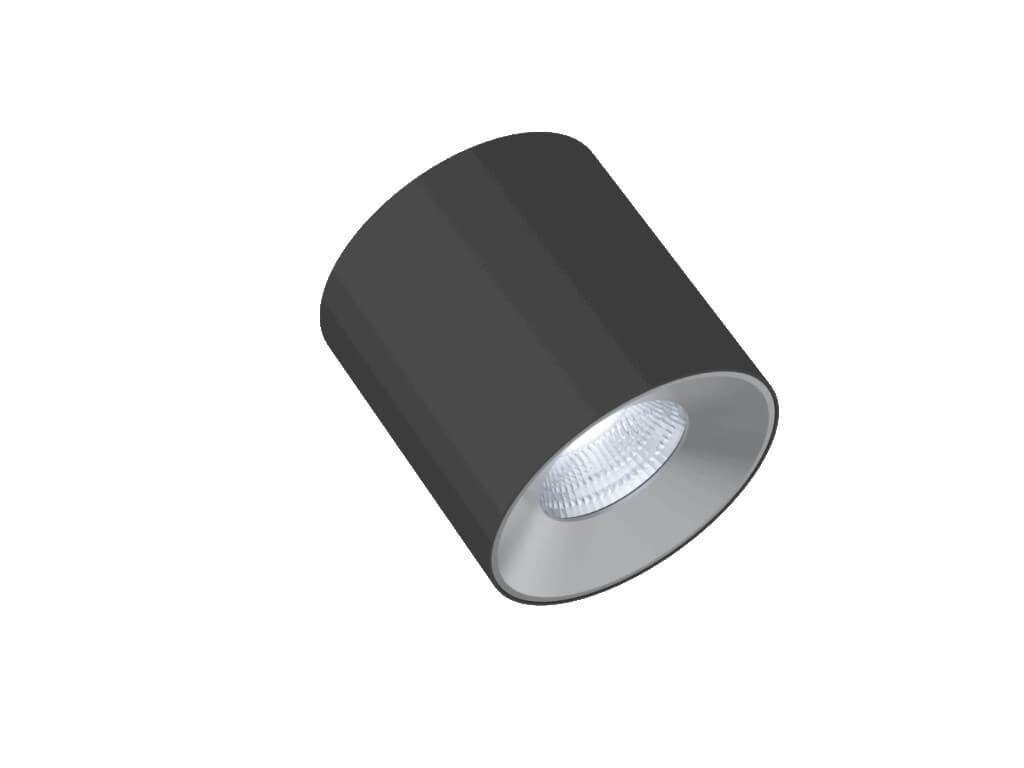

matt black RAL9005 / Silver (XX=74)
matt black RAL9005 / White (XX=75)

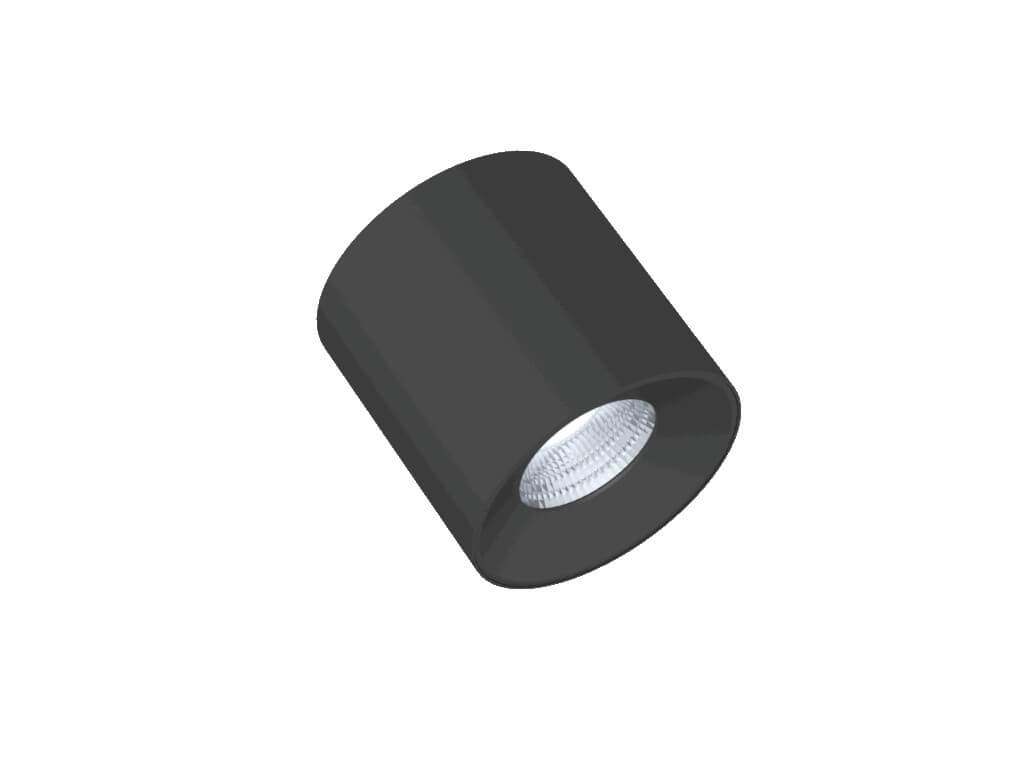

matt black RAL9005 / Black (XX=72)
Material Housing: Die-cast aluminium
Reflector glass: Polycarbonate

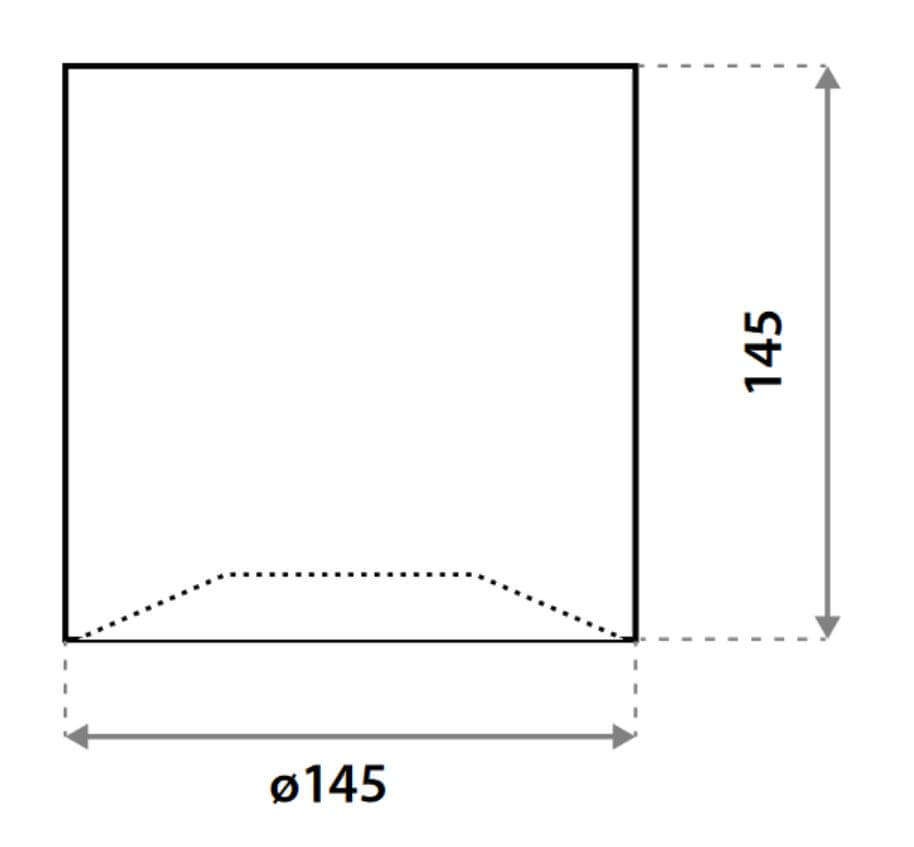

Dimensions 145 mm x 145 mm
Usage Indoors
Beam angle (FWHM) 18° / 37° / 60°
CRI / Ra (typ.) 97
Colour Consistency (MacAdam) SDCM3
IP Code IP20
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Life time at 25°C
L70B50 >165.000
L80B50 >105.000
L90B50 >51.000
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A

Vector 145 Low Voltage (LV)

High Efficiency, CRI 97

The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.

For further information on Vector 145 LV downlights, please refer to the respective data sheet.

Vector 145 LV

Dimmability

Switchable (Triac, DALI, 1-10V & Push *Note)

Art. No. 7D1B03XX8J02 7D1B03XX8K02 7D1B03XX8L02
Colour temperature 2700 K 3000 K 4000 K
UGR 15,8 16,2 16,4
Luminous flux 1625 lm 1800 lm 1925 lm
Lm/W (with EVG) 81

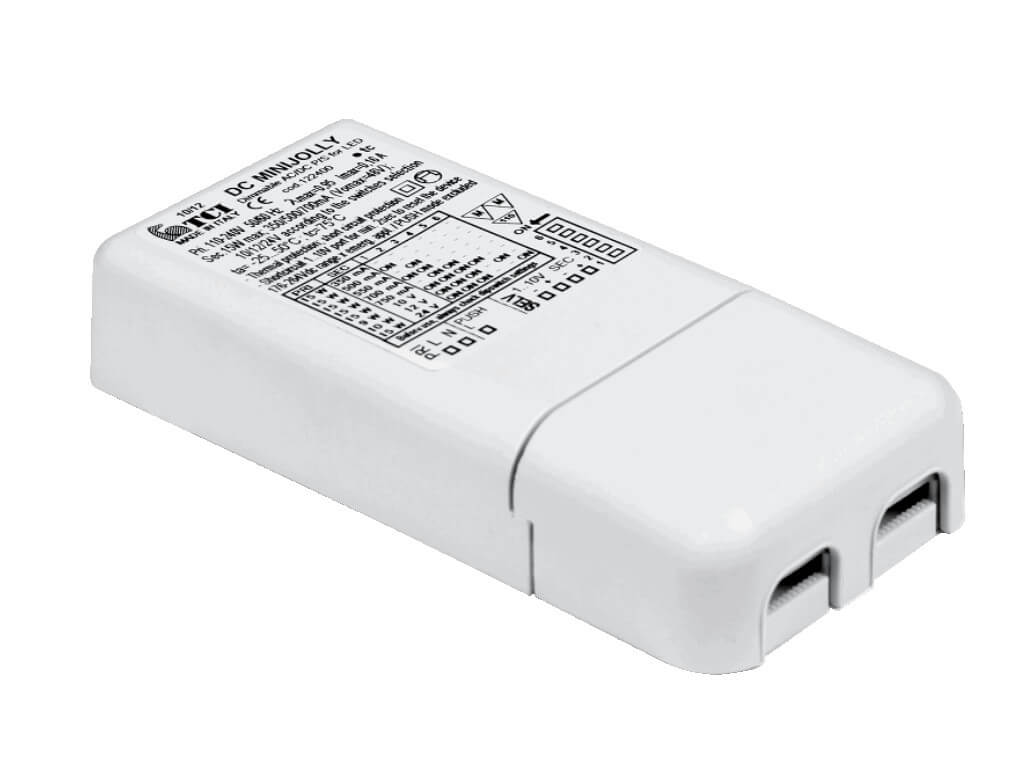

Type Inc. PSU
Input 220-240 V
Power 20,1 W
Protection class II
Pf 0,97

*Note: This surface mounted luminaire is also available as a dimmable version (Triac, DALI and 1-10V&Push) and with beam angles of 37° and 60°.

For data sheets of the Vector 145 series downlights, see download tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilisation.
