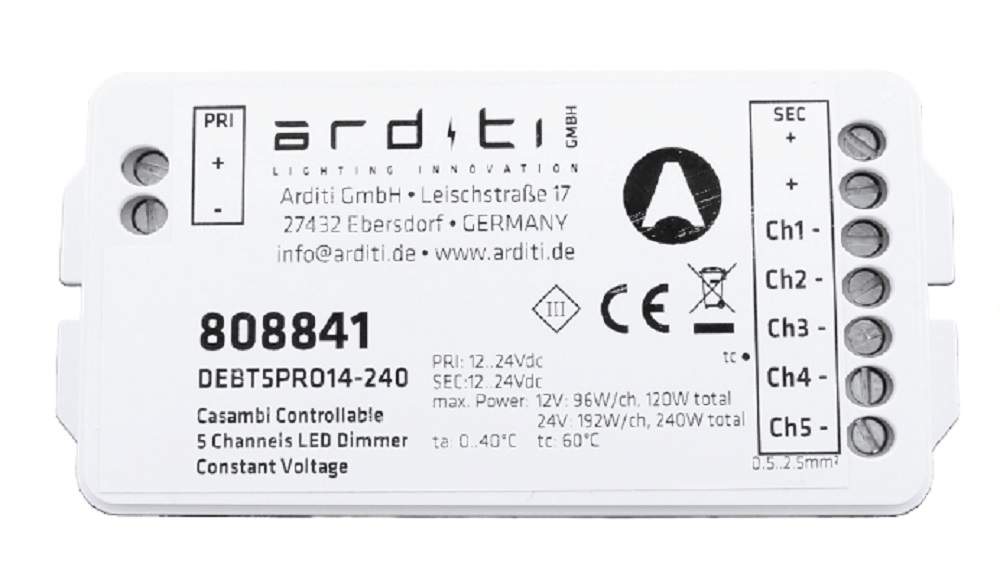

5 channel dimmer CASAMBI light control PWM5

107.94€ *
Net price: 90.71€
Content: 1

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*

CASAMBI light control 5-channel This compact, highly efficient LED dimmer has a CASAMBI... more

CASAMBI light control 5-channel

This compact, highly efficient LED dimmer has a CASAMBI control function and enables convenient operation with a tablet or smartphone. Incandescent lamps, dimmable LED lamps and control gear for LEDs and halogen lamps can be put into operation with this 5-channel Casambi dimmer. However, it is not suitable for magnetic transformers. (cf. has an additional channel compared to the "PWM4")

Further product properties and Features:

• Gateway is not required, but can be set up
• Integrated antenna
• Installation in flush-mounted box
• Protection class 3
• Ideal for LED strips RGB + Tuneable White
• up to 4A output current per channel
• up to 7.5A total output current

Adjustable profiles, operating modes:

• 5 independent channels
• RGB operation
• RGB + W operation
• RGB + TW operation
• Tuneable White (TW)

Setup and operating instructions:

We recommend installing the free CASAMBI app. It is available in the "App Store" as well as in the "Play Store". This gives you the following options when using the 5-channel Casambi dimmer:

• Control of brightness, light color and color temperature
• Configuring luminaires and luminaire networks
• Creation of scenes and animations (color gradients)
• Automatic detection of new devices
• Intelligent timer and gallery functions
• Define sharing options ("only me", "all", "only with password", …)

Technical data for 808835:

Article number 808835
Type DEBT5PRO14-192
Supply input 12..24 Vdc
Signal input BT 4.0 (2,4 GHz) lite @ smart device
Radio signal 2,4..2,483 GHz; 4 dBm
Max output current 4,0A per channel
Max output power 12Vdc 50W per channel / 96W total
Max output power 24Vdc 100W per channel / 192W total
PWM-frequency 10 000 Hz
Ambient temperature -20..+40 °C
Max. Rated temperature 60 °C
Degree of protection IP 20
Dimensions 103×68×31 mm

For more information, please refer to the data sheet in the download tab.


QR code Bluetooth app zum dimmen für ios Casambi App at Appstore
Scan Code für Bluetooth dimm-app Casambi App for AndroidCASAMBI light control 5-channel
Related links to "5 channel dimmer CASAMBI light control PWM5"
5-channel LED dimmer with CASAMBI control, channels configurable by profile selection (TW, RGB,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Konstantspannung: 12V, 24V
Verwendung/IP-Code: IP20 - IP44 (indoor)
Leistungsbereich: 100 - 250 W
Dimmbarkeit/Steuerung: BT4.0 (2,4 GHz), Casambi-Funk, PWM
Farbtemperatur/Lichtfarbe: RGB/3Kanäle, RGBW/4Kanäle, Tuneable White
Data sheet Casambi dimmer
