Electrical accessories for the "TRACK IN" track from ALS
For the successful use of the built-in track, other components are required in addition to the rails themselves, depending on the requirements and specification. On our website you will find all components available via selection menus.
The overview below will help you find the right parts using the picture list.
Below the picture table you will find some application examples to help you configure your own.
Pictures and selection of electrical accessories for ALS TRACK IN track see here:
Planning example for the TRACK IN track:
Example 1: Requirement: 3.70m track black, recessed mounting, end feed
At least the following are required:
- 2x 3 Phase construction rail 2m --> SCH-620 (1x shorten to 1.70m)
- Electrical straight connector --> SCH-132062

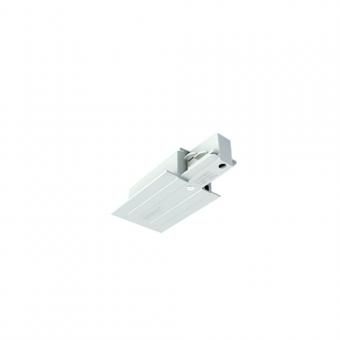

- End feeder with ceiling cover --> SCH-132012 (depending on the orientation of the protective conductor)

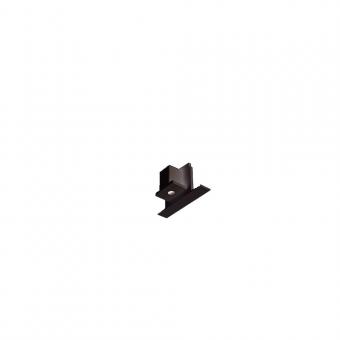

- End cap for the other side --> SCH-032172
Example 2: Requirement: 2 x 90 ° arrangement of U-shaped busbar with the partial lengths 2m - 4m - 1.70m, white, feed in the middle of the 4m section, recessed mounting
- 2x 3 Phase construction rail 2m --> SCH-621N (1x kürzen auf 1,70m)
- 1x 3 Phase construction rail 4m --> SCH-641N

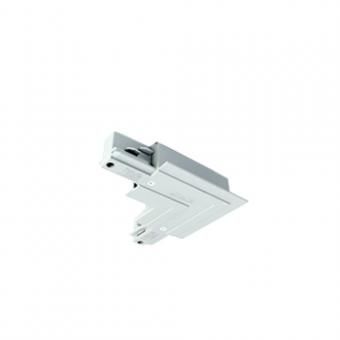

- 2x Corner connector protection inside --> SCH-132101N
- 1x DALI center feeder --> SCH-152031N
- 2x End cap --> SCH-032171N
|Lamp shape:||Power rail|
