Fabio 75 HV

Variants from 57.12€ *
Net price: 48.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Colour temperature:

Version:

Housing surface:

Mounting method:


Stck

  • IL1376-832A03BL5H02
  • 832A03BL5H02
  • 0.204 kg
  • 8716197065426
  • Illuxtron International BV
Illuxtron Fabio 75 HV (High Voltage) Downlight Compact, technologically innovative and... more

Illuxtron Fabio 75 HV (High Voltage) Downlight

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

Version Power range Beam angle Special feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology) This Version 10,1-10,3 W 40° / 80° directly connectable to 220-240V
LV (Low Voltage) 13,8 W 24° / 60° / 80° CRI-97 Standard, inklusive Treiber
LV-TW (Low Voltage- Tuneable White) 11,4 W 60° / 80° Tuneable White Technology

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Fabio 75 series provide perfect illumination of objects and rooms. The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.

The most important technical details of the Fabio 75 series:

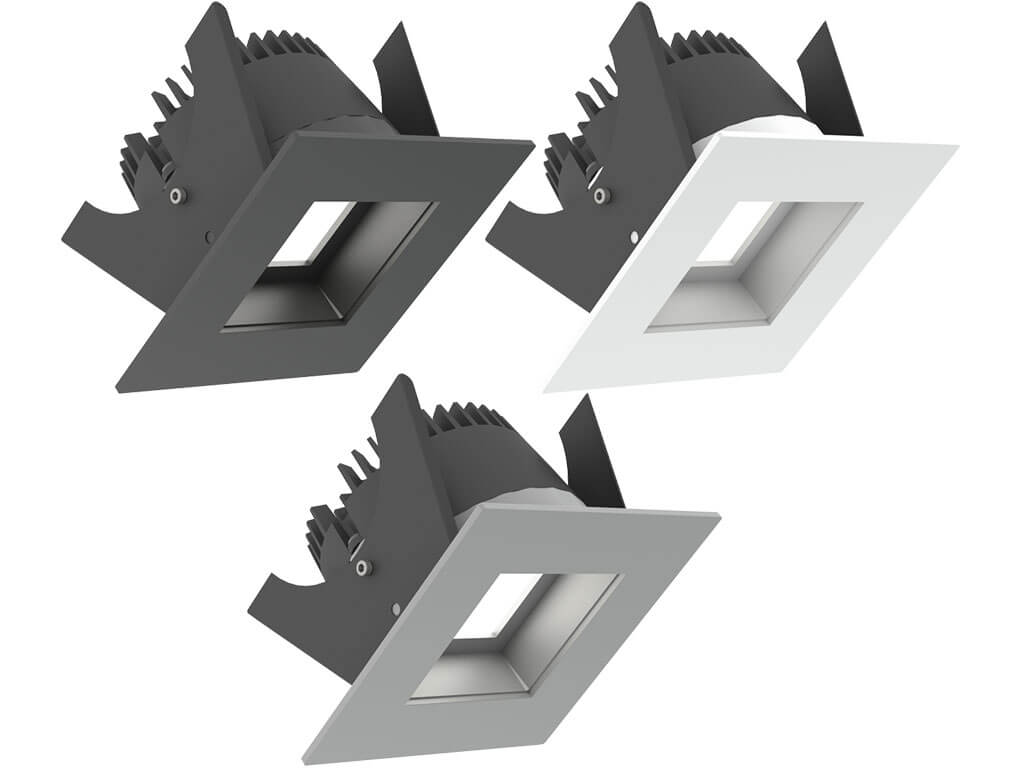

Housing colour

matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)
matt grey RAL 9005 (XX=GR)

Material Housing: Die-cast aluminium
Reflector glass: Polycarbonate
Dimensions ø 90 mm
Required installation depth > 65 mm
Ceiling cut-out

75 mm: Usage of ceiling springs.

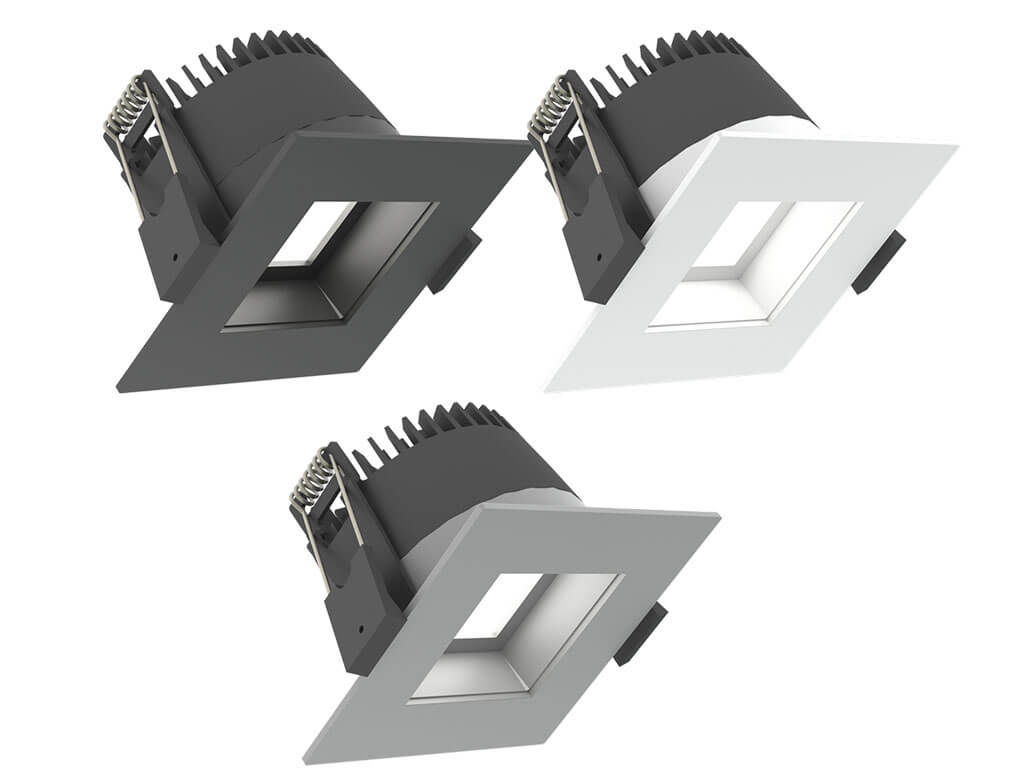

77 mm: Usage of wire springs.

Usage Indoors
Colour Consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B50 > 70.000 h
L80B50 > 69.000 h
L90B50 > 36.000 h
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A


Fabio 75 High voltage flicker-free dimming technology (HV-FD)

Flicker-free - no stroboscopic effect

Studies associate flickering light with health problems. Although flickering at this frequency is not visible without aids, there is evidence that the human brain can perceive flickering up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.

Flicker-free - Patented dimming up to 0.1%.

The level of dimming depends on the quality of the dimmer. With a high quality dimmer a dimming range of 0.1-100% can be covered. Even at the lowest dimming level, this technology always stays below 2.4% flicker.

Perfect for video recording

Flicker effects should be taken into account when recording video, otherwise the images will be traversed by several black lines, which makes reasonable filming impossible.

For further information on Fabio 75 HV-FD downlights, please refer to the respective data sheet.

This version is available in different mounting types and without connection cable.

Fabio 75 HV-FD

Dimmability

Triac

Art.No. 832A03XX5B02 832A03XX5D02 832A03XX5F02 832A03XX5H02
Colour temperature 2700 K 3000 K 4000 K 2200 - 3000 K
UGR 24,5
Luminous flux 600 lm
Lm/W (with EVG) 57 58 59 58
Type Incl. Connection cable
Input 220-240 V
Power 10,5 W 10,3 W 10,1 W 10,3 W
Protection class I
Pf 0,99

*Note: This table shows only the version with a beam angle of 80° and concrete spring mounting. This downlight is also available with a beam angle of 40°, as well as with different mounting options.

For data sheets of the Fabio 75 series downlights, see Download tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Related links to "Fabio 75 HV"
Elegant LED Downlights from Illuxtron, various Light and housing colours, depending on version in... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Lamp shape: Recessed ceiling
Hole diameter: 75mm
Dimmable/Control: Phase-Cut (Triac)
Color Temperature/Color: 2700K, 3000K, 4000K
Datasheet Illuxtron
Fabio 75 HV-FD
Datasheet Illuxtron
Fabio 75 HV-WD
