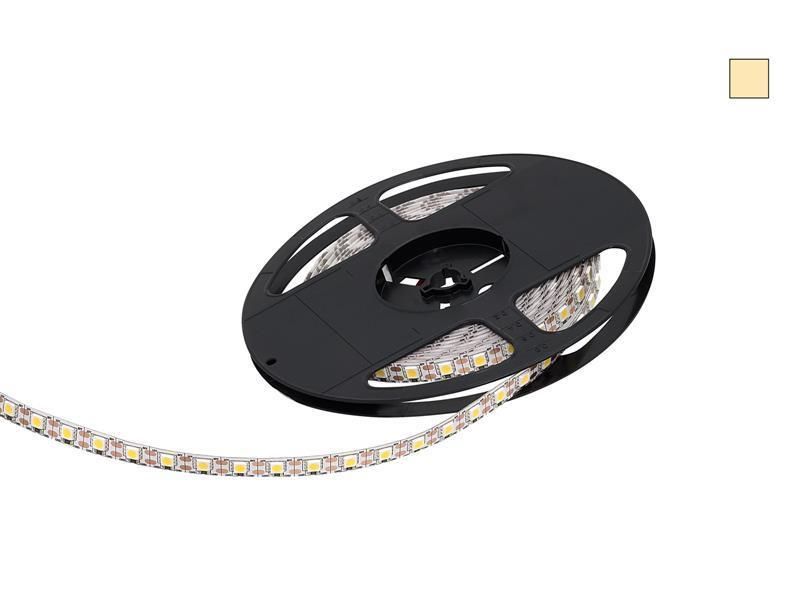

Flexible 12V LED Stripe Single Cut 5m | 72 LEDs/m

Product information "Flexible 12V LED Stripe Single Cut 5m | 72 LEDs/m"

Flexible 12V LED Stripes Single Cut white for indoor applications 5m with 72 LEDs/m

These LED Stripes can be cut individually after each LED (every 14mm). Thus, you can adapt these innovative LED Stripes Best as possible to your needs. You will get 5 meters of the LED Strip in one go. With these LED stripes, things like shelves, showcases or individual pieces of furniture can be optimally illuminated by exact adaptability and thus brought to bear. In this version, the LED strips can be combined with all of our ALU profiles, which are also used for cooling.

For a sustainable operation, please note the information in the data sheet.



The most important features

  • The supply voltage of 12V allows a large selection of LED transformers and the use in the vehicle interior
  • The beam angle of 120° ensures large-area illumination
  • The assembly density of 72 LEDs/m ensures uniform light distribution
  • With a pitch of 14mm you can customize the LED Stripes exactly to your needs


Available color temperatures

  • Cold white: 5,700 - 6,300 K
  • Warm white: 2,900 - 3,200 K


Application examples:

  • Effect lighting of cabinets, showcases and shelves
  • Highlighting individual pieces of furniture through targeted lighting
  • Lighting in the vehicle interior, eg for motorhomes
  • Increase accessibility by illuminating stairs and other tripping hazards
  • Atmospheric lighting in party cellars
  • Indirect lighting for suspended ceilings
  • Backlighting for TV sets
  • Many other indoor applications possible
  • Applications for which maximum adaptability is necessary


Technical data

VersionIndoor Flexible Single Cut
Power supply12V dc
Luminous flux

cool white: 430 lm/m

warm white: 430 lm/m

Power15 W/m
Packing density72 LEDs/m
Beam angle120°
Width12 mm
Height2 mm
Division14 mm
Length4.950 mm

For further technical information, please refer to the data sheet.

In our shop you will find a large selection of matching 12V LED Transformers

Properties "Flexible 12V LED Stripe Single Cut 5m | 72 LEDs/m"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 3000K, >5000K
·Lamp shape: flexible (stripes)
·Power/Meter: 10-20W/m
·rated luminous flux lm/m: less than 500 lm/m
·Amount LEDs/m: 72 LEDs/m
·Constant Voltage: 12V
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

Datenblatt I12SCR72
