HVGC 480 Watt High-Performance LED Driver

Variants from 200.04€ *
Net price: 168.10€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Constant current:



  • HVGC-480-L-AB
  • HVGC-480-L-AB
  • 2.72 kg
HVGC-480 Watt incl. diff. Dimming Functions, IP67 Product Description: HVGC-480 series... more

HVGC-480 Watt incl. diff. Dimming Functions, IP67

Product Description:

HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 1400mA and 2800mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
HVGC-480 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system.

High performance led driver HVGC 480

Features of HVCG 480 series:

  • Wide input range 180 ~ 528VAC
  • Constant Power mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • IP67 design for indoor or outdoor installations

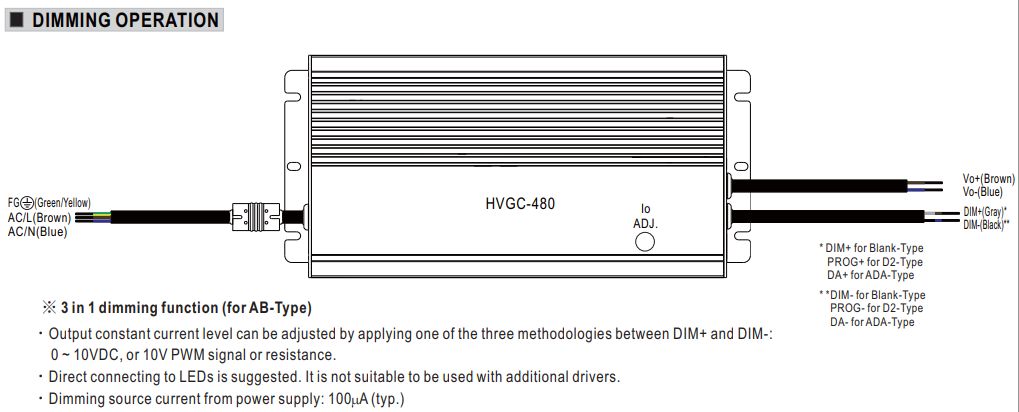

  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
  • Typical lifetime>50000 hours
  • 5 years warranty
  • Applications:
    • Harbor lighting
    • LED high-bay lighting
    • Parking space lighting
    • LED fishing lamp

Technical Data:

Model HVGC-480-L-AB   HVGC-480-M-AB HVGC-480-H-AB
Rated current 1400 mA  2100 mA  2800 mA
Design For LED lighting applications (DIN EN61347)
Nominal voltage 230 VAC
Min. input voltage 180 VAC
Max. input voltage 528 VAC
Constant current region 137-343 VDC 92-228,5 VDC 68-171,5 VDC
Rated power (output) 480 W
Frequency range 47-63 Hz
Efficiency 94,5 %
Working temperature  -40°C to +90°C
Storage temperature -40°C to +80°C
Type of construction Closed
Material (housing) Primary aluminium
Protection level IP67
Service life >50.000 h

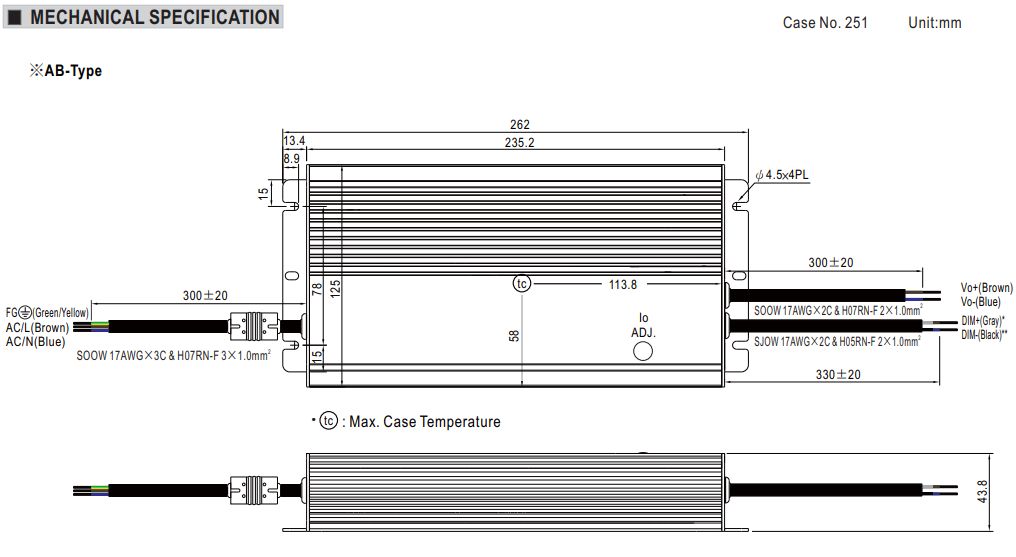

Dimensions 262*125*43,5 mm (L*W*H)

The data sheet in the download tab provides further information.
Related links to "HVGC 480 Watt High-Performance LED Driver"
High efficiency constant current driver 480W for 1,4A - 2,8A, 3-in-1 or smart timer dimming,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor), IP65/67 (Outdoor)
Constant Current: 1,4A, 2,1A, 2,8A
Power range: 250 - 1000 W
Dimmable/Control: 1..10V, DALI, PWM
Data sheet MW HVGC-480
Installation manual LED power supply modules
Read, write and discuss reviews... more
Customer evaluation for "HVGC 480 Watt High-Performance LED Driver"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

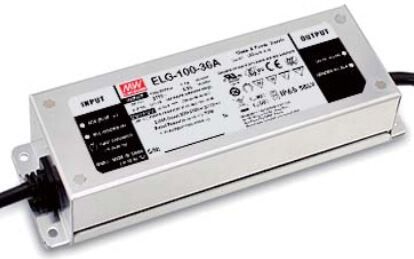

Meanwell ELG-100 Meanwell ELG-100 Power Supply
Variants from 39.63€ *
Order number: ELG-100-24-A

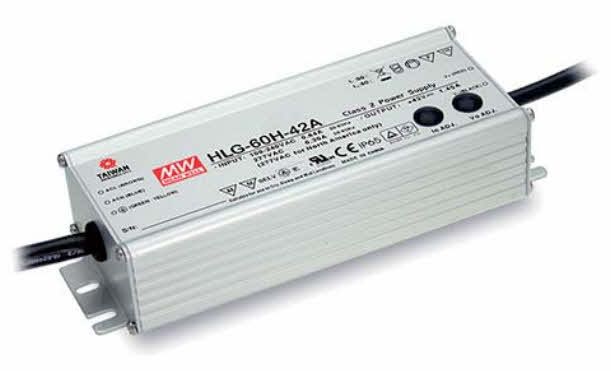

HLG-60H-12/24 HLG-60H-24 power supply from Mean Well
Variants from 36.77€ *
Order number: HLG-60H-24-A
LED driver 60W LED-Treiber 60W dimmable - Maxi Jolly US
48.60€ *
Order number: 759-127411
HVGC-65 product picture HVGC-65 watt LED Driver
Content 1
Variants from 62.59€ *
Order number: HVGC-65-350-A
HVGC-100 Product Picture HVGC-100 Watt LED Driver
Content 1
Variants from 80.44€ *
Order number: HVGC-100-350-A

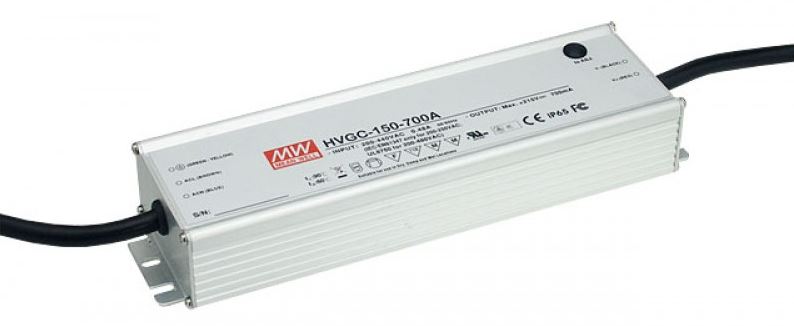

HVGC-150 Product picture HVGC-150 watt LED Driver
